Removal [12/2022 - ]: Procedure

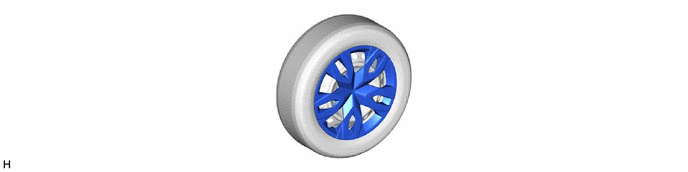

  1. REMOVE WHEEL CAP (w/ Wheel Cap)
    1. GTY1140821Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE WHEEL ASSEMBLY
    1. GTY1142841Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A for 4 Bolt Axle Hub *B for 5 Bolt Axle Hub
      1. Loosen the axle hub nuts approximately 90°.
      2. Lift up the vehicle and remove the axle hub nuts and wheel assembly.
