Removal [03/2023 - ]: Procedure

  1. PRECAUTION
    NOTE:

    After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.

    Refer to BEFORE DISCONNECTING BATTERY [12/2022 - ]
  2. DISABLE BRAKE CONTROL
    Refer to PROCEDURE - Step 2
  3. REMOVE FRONT WHEEL

    Refer to REMOVAL [12/2022 - ]

  4. REMOVE FRONT DISC BRAKE CYLINDER ASSEMBLY

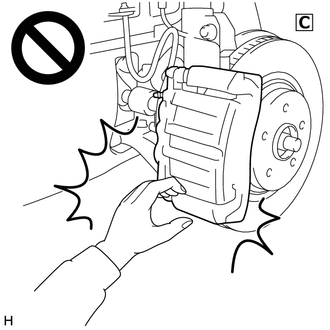

    WARNING:
    • Be careful not to get pinched by the front disc brake cylinder assembly or other parts when removing the front disc brake pads.
    • After lifting up the front disc brake cylinder assembly, secure it in place before performing any work on it.
    • The front disc brake cylinder assembly could fall, pinching hands or fingers and causing injury.
    GTY1073863Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

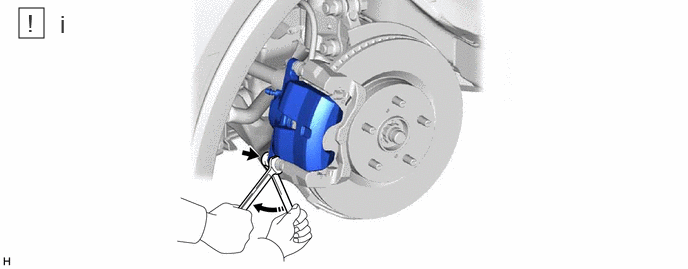

    1. GTY1157177Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Hold the front disc brake cylinder slide pin (lower side) and remove the bolt.
        NOTE:
        • Do not kink or damage the brake line.
  5. REMOVE FRONT DISC BRAKE PAD

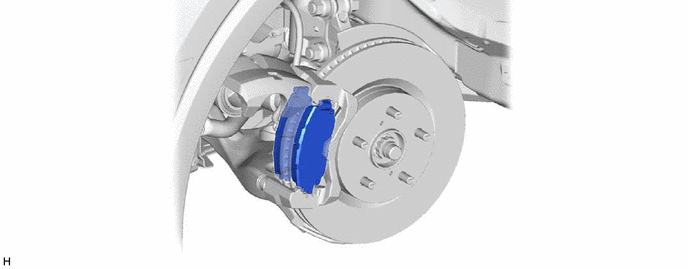

    1. GTY1153902Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE FRONT DISC BRAKE ANTI-SQUEAL SHIM KIT
    1. GTY1144399Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Front No. 1 Disc Brake Anti-squeal Shim *2 Front No. 2 Disc Brake Anti-squeal Shim
      *3 Front Disc Brake Pad *4 Front Disc Brake Pad Wear Indicator Plate
      1. Remove the front No. 1 disc brake anti-squeal shim and front No. 2 disc brake anti-squeal shim from each front disc brake pad.
      2. Using a screwdriver, remove the front disc brake pad wear indicator plate from each front disc brake pad.
