Instructions for Connecting SST [03/2023 - ]: Procedure

  1. CONNECT THE SST
    • SST: 09893-10050
    WARNING:

    Be sure to wear insulated gloves and protective goggles.

    NOTE:

    Make sure to observe the following points when using the SST.

    • Set it in a secure, flat place.
    • Set it in a dry place protected from dust and water.
    1. Connect the SST to the ex1 HV supply battery assembly connector and the HV supply battery assembly.
      NOTE:

      Make sure that the connector is connected securely.

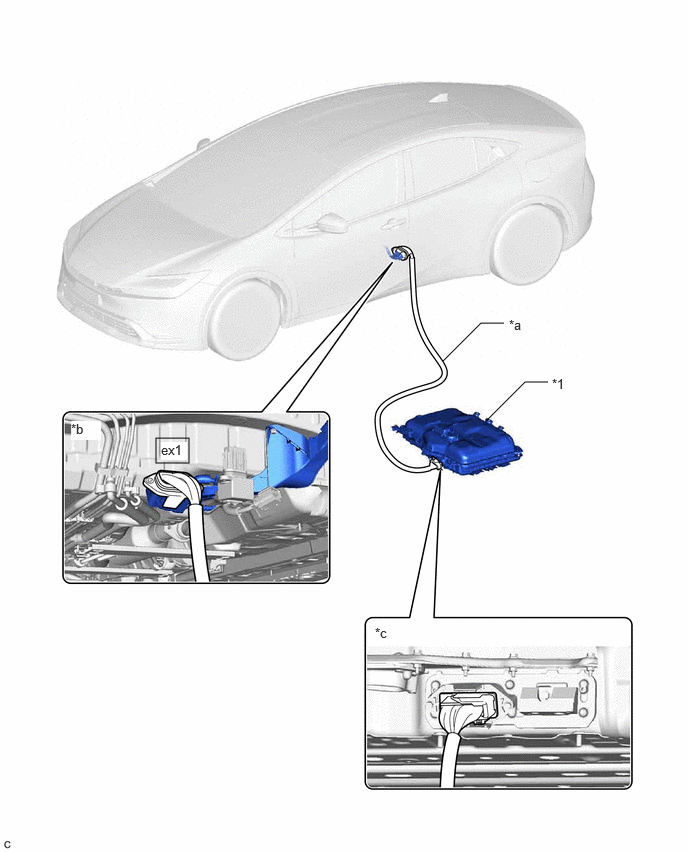

      GTY1154114Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 HV Supply Battery Assembly - -
      *a SST *b SST (Vehicle Side)
      *c SST (HV Supply Battery Assembly Side) - -

      Result

      Proceed to
      NEXT

    Result:

    NEXT

    END
