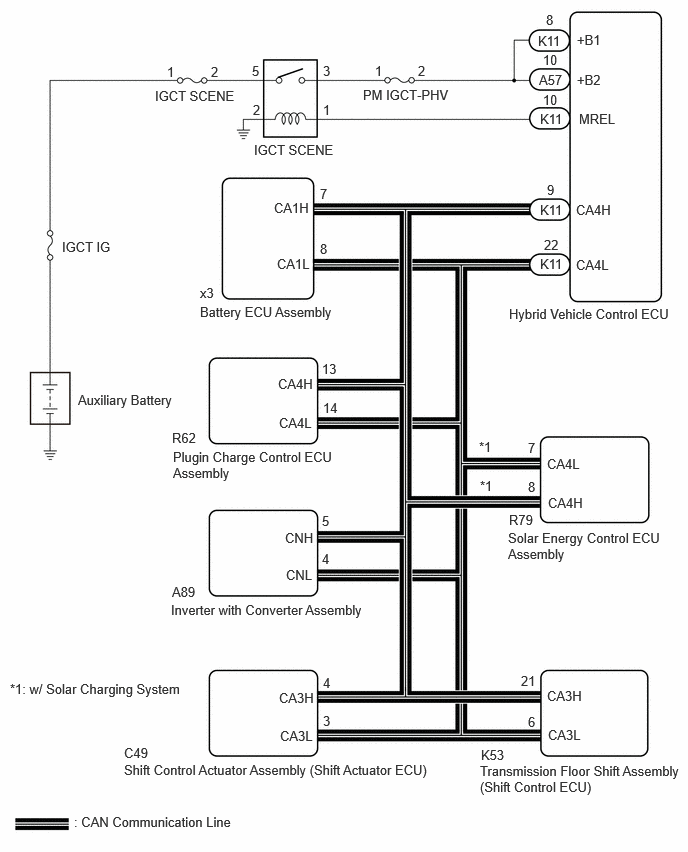

DTC U1150-87: Lost Communication with Hybrid Powertrain Control Module (Hybrid/EV Battery Local Bus) Missing Message [03/2023 - ]: Wiring Diagram

GTY1154533

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
