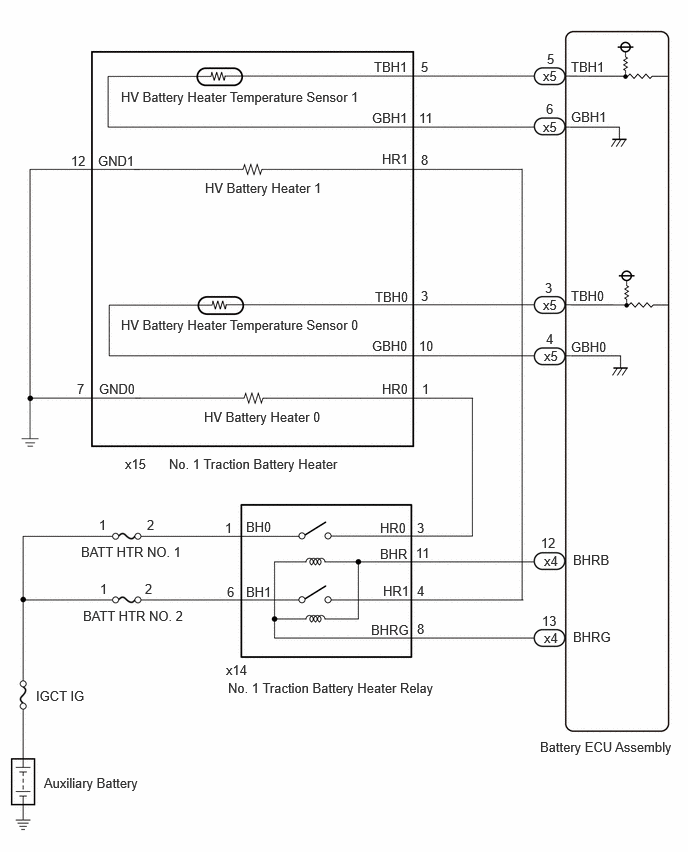

DTC P1B4B-72: Hybrid/EV Battery Heater Relay Actuator Stuck Open [03/2023 - ]: Wiring Diagram

GTY1153821

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
