Section 5 (Can Communication System (HEV) - Circuit Tests (1 Of 3) & Diagnostic Codes)
>>
CAN COMMUNICATION SYSTEM (for HEV Model)
>>
DCM Communication Stop Mode [12/2022 - ]
>>

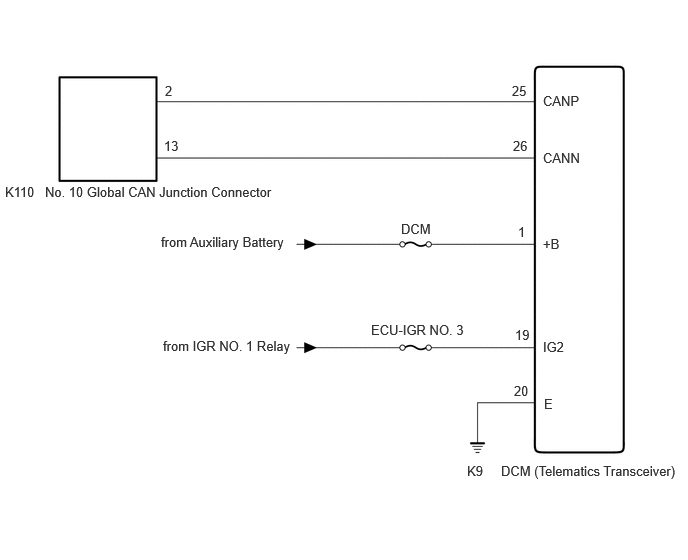

Wiring Diagram
DCM Communication Stop Mode [12/2022 - ]: Wiring Diagram
WARNING:
This page is about a different variant/trim than selected.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
