DTC P0E2D-00: Hybrid/EV Battery Energy Control Module Hybrid/EV Battery Monitor Performance [12/2022 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. CHECK DTC OUTPUT (HV BATTERY, HYBRID CONTROL)

    Pre-procedure1

    1. None

      Procedure1

    2. Check for DTCs.

      Powertrain > HV Battery > Trouble Codes

      Powertrain > Hybrid Control > Trouble Codes

      Result

      Result Proceed to
      "P0E2D-00" only is output, or DTCs except the ones in the table below are also output. A
      "P0E2D-00" and "P1C84-49" are output. B
      DTCs of hybrid battery system in the table below are output. C
      DTCs of hybrid control system in the table below are output. D
      System Relevant DTC
      Hybrid battery system P060A-47 Hybrid/EV Battery Energy Control Module Monitoring Processor Watchdog / Safety MCU Failure
      P060B-49 Hybrid/EV Battery Energy Control Module A/D Processing Internal Electronic Failure
      P0606-87 Hybrid/EV Battery Energy Control Module Processor to Monitoring Processor Missing Message
      P1A00-1C Hybrid Battery Stack 2 Cell Voltage Detection Voltage Out of Range
      P301A-1C Hybrid Battery Stack 1 Cell Voltage Detection Voltage Out of Range
      Hybrid control system P0A1F-94 Hybrid/EV Battery Energy Control Module Unexpected Operation

      Post-procedure1

    3. Turn the ignition switch off.

    Result:

    B

    REPLACE BATTERY ECU ASSEMBLY

    Refer to REMOVAL [12/2022 - ]

    Result:

    C

    GO TO DTC CHART (HYBRID BATTERY SYSTEM). Refer to  DIAGNOSTIC TROUBLE CODE CHART [12/2022 - ]

    Result:

    D

    GO TO DTC CHART (HYBRID CONTROL SYSTEM)

    Refer to DIAGNOSTIC TROUBLE CODE CHART [12/2022 - ]

    Result:

    A

    See step  2

  2. CHECK CONNECTOR CONNECTION CONDITION (BATTERY ECU ASSEMBLY CONNECTOR)
    WARNING:

    Be sure to wear insulated gloves and protective goggles.

    Pre-procedure1

    1. Check that the service plug grip is not installed.
      NOTE:

      After removing the service plug grip, do not turn the ignition switch to ON (READY), unless instructed by the repair information because this may cause a malfunction.

      Procedure1

    2. Check the connector connections and contact pressure of the relevant terminals for the battery ECU assembly.

      HINT:

      Refer to ELECTRONIC CIRCUIT INSPECTION PROCEDURE [12/2022 - ]

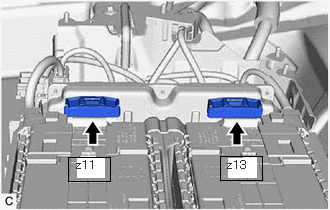

      GTY1153937Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      OK

      The connectors are connected securely and there are no contact problems.

      Result

      Result Proceed to
      OK A
      Not connected securely The terminals are not damaged or corroded B
      Either connector z11 and z13 was not connected securely The terminals are damaged or corroded C

      Post-procedure1

    3. None

    Result:

    B

    CONNECT SECURELY

    Result:

    C

    REPLACE HV BATTERY

    Refer to REMOVAL [12/2022 - ]

    Result:

    A

    See step  3

  3. READ VALUE USING GTS (HYBRID/EV BATTERY CELL VOLTAGE)

    Pre-procedure1

    1. None

      Procedure1

    2. Read the Data List.

      Powertrain > HV Battery > Data List

      Tester Display
      Hybrid/EV Battery Cell 1 Voltage
      Hybrid/EV Battery Cell 2 Voltage
      Hybrid/EV Battery Cell 3 Voltage
      Hybrid/EV Battery Cell 4 Voltage
      Hybrid/EV Battery Cell 5 Voltage
      Hybrid/EV Battery Cell 6 Voltage
      Hybrid/EV Battery Cell 7 Voltage
      Hybrid/EV Battery Cell 8 Voltage
      Hybrid/EV Battery Cell 9 Voltage
      Hybrid/EV Battery Cell 10 Voltage
      Hybrid/EV Battery Cell 11 Voltage
      Hybrid/EV Battery Cell 12 Voltage
      Hybrid/EV Battery Cell 13 Voltage
      Hybrid/EV Battery Cell 14 Voltage
      Hybrid/EV Battery Cell 15 Voltage
      Hybrid/EV Battery Cell 16 Voltage
      Hybrid/EV Battery Cell 17 Voltage
      Hybrid/EV Battery Cell 18 Voltage
      Hybrid/EV Battery Cell 19 Voltage
      Hybrid/EV Battery Cell 20 Voltage
      Hybrid/EV Battery Cell 21 Voltage
      Hybrid/EV Battery Cell 22 Voltage
      Hybrid/EV Battery Cell 23 Voltage
      Hybrid/EV Battery Cell 24 Voltage
      Hybrid/EV Battery Cell 25 Voltage
      Hybrid/EV Battery Cell 26 Voltage
      Hybrid/EV Battery Cell 27 Voltage
      Hybrid/EV Battery Cell 28 Voltage
      Hybrid/EV Battery Cell 29 Voltage
      Hybrid/EV Battery Cell 30 Voltage
      Hybrid/EV Battery Cell 31 Voltage
      Hybrid/EV Battery Cell 32 Voltage
      Hybrid/EV Battery Cell 33 Voltage
      Hybrid/EV Battery Cell 34 Voltage
      Hybrid/EV Battery Cell 35 Voltage
      Hybrid/EV Battery Cell 36 Voltage
      Hybrid/EV Battery Cell 37 Voltage
      Hybrid/EV Battery Cell 38 Voltage
      Hybrid/EV Battery Cell 39 Voltage
      Hybrid/EV Battery Cell 40 Voltage
      Hybrid/EV Battery Cell 41 Voltage
      Hybrid/EV Battery Cell 42 Voltage
      Hybrid/EV Battery Cell 43 Voltage
      Hybrid/EV Battery Cell 44 Voltage
      Hybrid/EV Battery Cell 45 Voltage
      Hybrid/EV Battery Cell 46 Voltage
      Hybrid/EV Battery Cell 47 Voltage
      Hybrid/EV Battery Cell 48 Voltage
      Hybrid/EV Battery Cell 49 Voltage
      Hybrid/EV Battery Cell 50 Voltage
      Hybrid/EV Battery Cell 51 Voltage
      Hybrid/EV Battery Cell 52 Voltage
      Hybrid/EV Battery Cell 53 Voltage
      Hybrid/EV Battery Cell 54 Voltage
      Hybrid/EV Battery Cell 55 Voltage
      Hybrid/EV Battery Cell 56 Voltage
      Hybrid/EV Battery Cell 57 Voltage
      Hybrid/EV Battery Cell 58 Voltage
      Hybrid/EV Battery Cell 59 Voltage
      Hybrid/EV Battery Cell 60 Voltage

      Result

      Result Proceed to
      There are two or more HV battery cell of 1.6 V or less in the data list item "Hybrid/EV Battery Cell 1 to 60 Voltage" A
      Other than above B

      Post-procedure1

    3. Turn the ignition switch off.

    Result:

    B

    See step  5

    Result:

    A

    See step  4

  4. REPLACE BATTERY ECU ASSEMBLY

    HINT:

    Refer to REMOVAL [12/2022 - ]

    Result

    Proceed to
    NEXT

    Result:

    NEXT

    REPLACE HV BATTERY

    Refer to REMOVAL [12/2022 - ]

  5. CHECK FREEZE FRAME DATA (HYBRID/EV BATTERY CELL VOLTAGE)

    Pre-procedure1

    1. None

      Procedure1

    2. Read the value of freeze frame data items "Hybrid/EV Battery Cell 1 Voltage" through "Hybrid/EV Battery Cell 60 Voltage" for DTC P0E2D-00 and make a note if the value of any is 1.6 V or less.

      Powertrain > HV Battery > Trouble Codes

      Result

      Result Proceed to
      The value of any of the freeze frame data items "Hybrid/EV Battery Cell 1 Voltage" through "Hybrid/EV Battery Cell 30 Voltage" is 1.6 V or less. A
      The value of any of the freeze frame data items "Hybrid/EV Battery Cell 31 Voltage" through "Hybrid/EV Battery Cell 60 Voltage" is 1.6 V or less. B
      Other than above C

      Post-procedure1

    3. Turn the ignition switch off.

    Result:

    B

    See step  9

    Result:

    C

    REPLACE BATTERY ECU ASSEMBLY

    Refer to REMOVAL [12/2022 - ]

    Result:

    A

    See step  6

  6. CHECK HV BATTERY (HV BATTERY CELL VOLTAGE 1 - 30)
    WARNING:
    • Be sure to wear insulated gloves and protective goggles.
    • Disconnect only the connector corresponding to the HV battery cell to be checked. Do not disconnect the other connectors.
    NOTE:

    Make sure to use tester probes with a diameter of approximately 0.5 mm (0.0197 in.) when measuring the voltage of each HV battery cell.

    Pre-procedure1

    1. Check that the service plug grip is not installed.
      NOTE:

      After removing the service plug grip, do not turn the ignition switch to ON (READY), unless instructed by the repair information because this may cause a malfunction.

    2. Disconnect the battery ECU assembly connector.

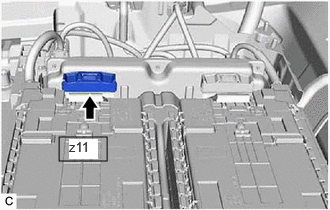

      GTY1159033Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Procedure1

    3. Measure the voltage according to the value(s) in the table below.

      HINT:

      Measure the voltage of the HV battery cells whose value in the freeze frame data was 1.6 V or less only.

      HV Battery Cell Tester Connection Condition
      1 z11-19 (GA0) - z11-41 (VA1) Always
      2 z11-41 (VA1) - z11-18 (VA2) Always
      3 z11-18 (VA2) - z11-40 (VA3) Always
      4 z11-40 (VA3) - z11-17 (VA4) Always
      5 z11-17 (VA4) - z11-39 (VA5) Always
      6 z11-39 (VA5) - z11-16 (VA6) Always
      7 z11-16 (VA6) - z11-38 (VA7) Always
      8 z11-38 (VA7) - z11-15 (VA8) Always
      9 z11-15 (VA8) - z11-37 (VA9) Always
      10 z11-37 (VA9) - z11-14 (VA10) Always
      11 z11-14 (VA10) - z11-36 (VA11) Always
      12 z11-36 (VA11) - z11-13 (VA12) Always
      13 z11-13 (VA12) - z11-35 (VA13) Always
      14 z11-35 (VA13) - z11-12 (VA14) Always
      15 z11-12 (VA14) - z11-34 (VA15) Always
      16 z11-34 (VA15) - z11-11 (VA16) Always
      17 z11-11 (VA16) - z11-33 (VA17) Always
      18 z11-33 (VA17) - z11-10 (VA18) Always
      19 z11-10 (VA18) - z11-32 (VA19) Always
      20 z11-32 (VA19) - z11-9 (VA20) Always
      21 z11-9 (VA20) - z11-31 (VA21) Always
      22 z11-31 (VA21) - z11-7 (VA22) Always
      23 z11-29 (GA1) - z11-6 (VA23) Always
      24 z11-6 (VA23) - z11-28 (VA24) Always
      25 z11-28 (VA24) - z11-5 (VA25) Always
      26 z11-5 (VA25) - z11-27 (VA26) Always
      27 z11-27 (VA26) - z11-4 (VA27) Always
      28 z11-4 (VA27) - z11-26 (VA28) Always
      29 z11-26 (VA28) - z11-3 (VA29) Always
      30 z11-3 (VA29) - z11-23 (VA30) Always
      WARNING:

      Make sure not to cross the electrodes of an electrical tester measurement terminals.

      NOTE:

      Make sure to check the polarity of each terminal (positive (+) or negative (-)) before connecting a tester.

      Result

      Result Proceed to
      The voltage between the terminals is 1.6 V or less. A
      Other than above B

      Post-procedure1

    4. Reconnect the battery ECU assembly connector.

    Result:

    B

    REPLACE BATTERY ECU ASSEMBLY

    Refer to REMOVAL [12/2022 - ]

    Result:

    A

    See step  7

  7. CHECK BATTERY ECU ASSEMBLY (GA0 - VA30)
    NOTE:

    Make sure to use tester probes with a diameter of approximately 0.5 mm (0.0197 in.) when measuring the resistance.

    Pre-procedure1

    1. Remove the battery ECU assembly.

      Refer to REMOVAL [12/2022 - ]

      Procedure1

    2. Measure the resistance according to the value(s) in the table below.

      HINT:

      Only inspect the terminals of the battery ECU assembly which correspond to the HV battery cells which measured 1.6 V or less in the previous step.

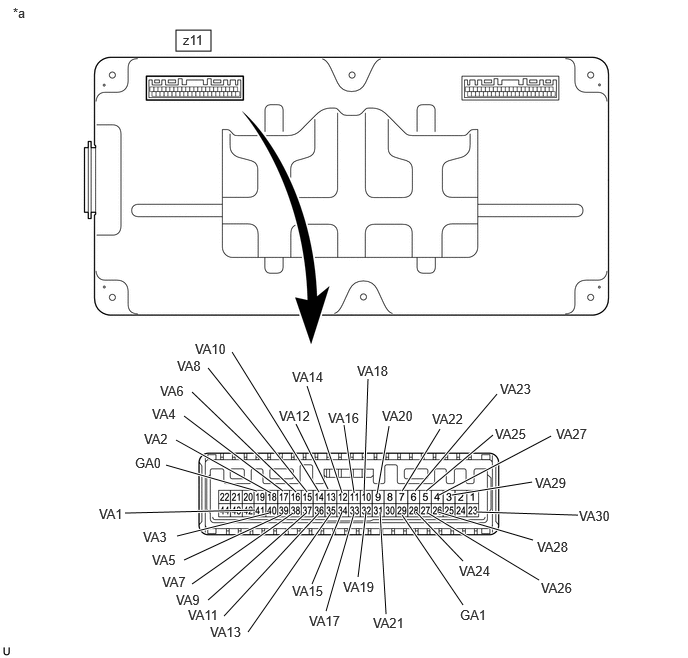

      GTY1145273Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component without harness connected
      (Battery ECU Assembly)      		 - -

      Standard Resistance

      HV Battery Cell Tester Connection
      (Tester Probe Polarity)      		 Condition Specified Condition
      1 z11-19 (GA0) (-) - z11-41 (VA1) (+) Always 50 kΩ or more
      2 z11-41 (VA1) (-) - z11-18 (VA2) (+) Always 50 kΩ or more
      3 z11-18 (VA2) (-) - z11-40 (VA3) (+) Always 50 kΩ or more
      4 z11-40 (VA3) (-) - z11-17 (VA4) (+) Always 50 kΩ or more
      5 z11-17 (VA4) (-) - z11-39 (VA5) (+) Always 50 kΩ or more
      6 z11-39 (VA5) (-) - z11-16 (VA6) (+) Always 50 kΩ or more
      7 z11-16 (VA6) (-) - z11-38 (VA7) (+) Always 50 kΩ or more
      8 z11-38 (VA7) (-) - z11-15 (VA8) (+) Always 50 kΩ or more
      9 z11-15 (VA8) (-) - z11-37 (VA9) (+) Always 50 kΩ or more
      10 z11-37 (VA9) (-) - z11-14 (VA10) (+) Always 50 kΩ or more
      11 z11-14 (VA10) (-) - z11-36 (VA11) (+) Always 50 kΩ or more
      12 z11-36 (VA11) (-) - z11-13 (VA12) (+) Always 50 kΩ or more
      13 z11-13 (VA12) (-) - z11-35 (VA13) (+) Always 50 kΩ or more
      14 z11-35 (VA13) (-) - z11-12 (VA14) (+) Always 50 kΩ or more
      15 z11-12 (VA14) (-) - z11-34 (VA15) (+) Always 50 kΩ or more
      16 z11-34 (VA15) (-) - z11-11 (VA16) (+) Always 50 kΩ or more
      17 z11-11 (VA16) (-) - z11-33 (VA17) (+) Always 50 kΩ or more
      18 z11-33 (VA17) (-) - z11-10 (VA18) (+) Always 50 kΩ or more
      19 z11-10 (VA18) (-) - z11-32 (VA19) (+) Always 50 kΩ or more
      20 z11-32 (VA19) (-) - z11-9 (VA20) (+) Always 50 kΩ or more
      21 z11-9 (VA20) (-) - z11-31 (VA21) (+) Always 50 kΩ or more
      22 z11-31 (VA21) (-) - z11-7 (VA22) (+) Always 50 kΩ or more
      23 z11-29 (GA1) (-) - z11-6 (VA23) (+) Always 50 kΩ or more
      24 z11-6 (VA23) (-) - z11-28 (VA24) (+) Always 50 kΩ or more
      25 z11-28 (VA24) (-) - z11-5 (VA25) (+) Always 50 kΩ or more
      26 z11-5 (VA25) (-) - z11-27 (VA26) (+) Always 50 kΩ or more
      27 z11-27 (VA26) (-) - z11-4 (VA27) (+) Always 50 kΩ or more
      28 z11-4 (VA27) (-) - z11-26 (VA28) (+) Always 50 kΩ or more
      29 z11-26 (VA28) (-) - z11-3 (VA29) (+) Always 50 kΩ or more
      30 z11-3 (VA29) (-) - z11-23 (VA30) (+) Always 50 kΩ or more
      NOTE:
      • Make sure to check the polarity of each terminal (positive (+) or negative (-)) before connecting a tester.
      • Read the resistance after the value has stabilized.
      • In order to avoid damaging the terminals of the battery ECU assembly, make sure to use tester probes with a diameter of approximately 0.5 mm (0.0197 in.) when measuring the resistance of the battery ECU assembly.

      Result

      Result Proceed to
      The voltage between the terminals is 50 kΩ or more. A
      Other than above B

      Post-procedure1

    3. Install the battery ECU assembly.

    Result:

    A

    REPLACE HV BATTERY

    Refer to REMOVAL [12/2022 - ]

    Result:

    B

    See step  8

  8. REPLACE HV BATTERY

    HINT:

    Refer to REMOVAL [12/2022 - ]

    Result

    Proceed to
    NEXT

    Result:

    NEXT

    REPLACE BATTERY ECU ASSEMBLY

    Refer to REMOVAL [12/2022 - ]

  9. CHECK HV BATTERY (HV BATTERY CELL VOLTAGE 31 - 60)
    WARNING:
    • Be sure to wear insulated gloves and protective goggles.
    • Disconnect only the connector corresponding to the HV battery cell to be checked. Do not disconnect the other connectors.
    NOTE:

    Make sure to use tester probes with a diameter of approximately 0.5 mm (0.0197 in.) when measuring the voltage of each HV battery cell.

    Pre-procedure1

    1. Check that the service plug grip is not installed.
      NOTE:

      After removing the service plug grip, do not turn the ignition switch to ON (READY), unless instructed by the repair information because this may cause a malfunction.

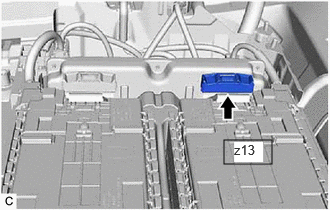

    2. Disconnect the battery ECU assembly connector.
      GTY1159029Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Procedure1

    3. Measure the voltage according to the value(s) in the table below.

      HINT:

      Measure the voltage of the HV battery cells whose value in the freeze frame data was 1.6 V or less only.

      HV Battery Cell Tester Connection Condition
      31 z13-22 (VAD) - z13-44 (VA31) Always
      32 z13-44 (VA31) - z13-21 (VA32) Always
      33 z13-21 (VA32) - z13-43 (VA33) Always
      34 z13-43 (VA33) - z13-20 (VA34) Always
      35 z13-20 (VA34) - z13-42 (VA35) Always
      36 z13-42 (VA35) - z13-19 (VA36) Always
      37 z13-19 (VA36) - z13-16 (VA37) Always
      38 z13-35 (GA2) - z13-12 (VA38) Always
      39 z13-12 (VA38) - z13-34 (VA39) Always
      40 z13-34 (VA39) - z13-11 (VA40) Always
      41 z13-11 (VA40) - z13-33 (VA41) Always
      42 z13-33 (VA41) - z13-10 (VA42) Always
      43 z13-10 (VA42) - z13-32 (VA43) Always
      44 z13-32 (VA43) - z13-9 (VA44) Always
      45 z13-9 (VA44) - z13-31 (VA45) Always
      46 z13-31 (VA45) - z13-8 (VA46) Always
      47 z13-8 (VA46) - z13-30 (VA47) Always
      48 z13-30 (VA47) - z13-7 (VA48) Always
      49 z13-7 (VA48) - z13-29 (VA49) Always
      50 z13-29 (VA49) - z13-6 (VA50) Always
      51 z13-6 (VA50) - z13-28 (VA51) Always
      52 z13-28 (VA51) - z13-5 (VA52) Always
      53 z13-5 (VA52) - z13-27 (VA53) Always
      54 z13-27 (VA53) - z13-4 (VA54) Always
      55 z13-4 (VA54) - z13-26 (VA55) Always
      56 z13-26 (VA55) - z13-3 (VA56) Always
      57 z13-3 (VA56) - z13-25 (VA57) Always
      58 z13-25 (VA57) - z13-2 (VA58) Always
      59 z13-2 (VA58) - z13-24 (VA59) Always
      60 z13-24 (VA59) - z13-23 (VA60) Always
      WARNING:

      Make sure not to cross the electrodes of an electrical tester measurement terminals.

      NOTE:

      Make sure to check the polarity of each terminal (positive (+) or negative (-)) before connecting a tester.

      Result

      Result Proceed to
      The voltage between the terminals is 1.6 V or less. A
      Other than above B

      Post-procedure1

    4. Reconnect the battery ECU assembly connector.

    Result:

    B

    REPLACE BATTERY ECU ASSEMBLY

    Refer to REMOVAL [12/2022 - ]

    Result:

    A

    See step  10

  10. CHECK BATTERY ECU ASSEMBLY (VAD - VA60)
    NOTE:

    Make sure to use tester probes with a diameter of approximately 0.5 mm (0.0197 in.) when measuring the resistance.

    Pre-procedure1

    1. Remove the battery ECU assembly.

      HINT:

      Refer to REMOVAL [12/2022 - ]

      Procedure1

    2. Measure the resistance according to the value(s) in the table below.

      HINT:

      Only inspect the terminals of the battery ECU assembly which correspond to the HV battery cells which measured 1.6 V or less in the previous step.

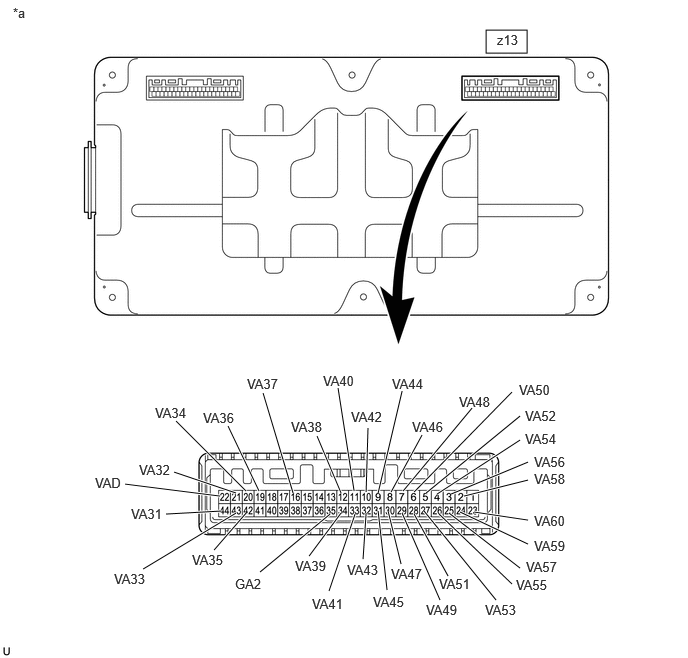

      GTY1145265Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component without harness connected
      (Battery ECU Assembly)      		 - -

      Standard Resistance

      HV Battery Cell Tester Connection
      (Tester Probe Polarity)      		 Condition Specified Condition
      31 z13-22 (VAD) (-) - z13-44 (VA31) (+) Always 50 kΩ or more
      32 z13-44 (VA31) (-) - z13-21 (VA32) (+) Always 50 kΩ or more
      33 z13-21 (VA32) (-) - z13-43 (VA33) (+) Always 50 kΩ or more
      34 z13-43 (VA33) (-) - z13-20 (VA34) (+) Always 50 kΩ or more
      35 z13-20 (VA34) (-) - z13-42 (VA35) (+) Always 50 kΩ or more
      36 z13-42 (VA35) (-) - z13-19 (VA36) (+) Always 50 kΩ or more
      37 z13-19 (VA36) (-) - z13-16 (VA37) (+) Always 50 kΩ or more
      38 z13-35 (GA2) (-) - z13-12 (VA38) (+) Always 50 kΩ or more
      39 z13-12 (VA38) (-) - z13-34 (VA39) (+) Always 50 kΩ or more
      40 z13-34 (VA39) (-) - z13-11 (VA40) (+) Always 50 kΩ or more
      41 z13-11 (VA40) (-) - z13-33 (VA41) (+) Always 50 kΩ or more
      42 z13-33 (VA41) (-) - z13-10 (VA42) (+) Always 50 kΩ or more
      43 z13-10 (VA42) (-) - z13-32 (VA43) (+) Always 50 kΩ or more
      44 z13-32 (VA43) (-) - z13-9 (VA44) (+) Always 50 kΩ or more
      45 z13-9 (VA44) (-) - z13-31 (VA45) (+) Always 50 kΩ or more
      46 z13-31 (VA45) (-) - z13-8 (VA46) (+) Always 50 kΩ or more
      47 z13-8 (VA46) (-) - z13-30 (VA47) (+) Always 50 kΩ or more
      48 z13-30 (VA47) (-) - z13-7 (VA48) (+) Always 50 kΩ or more
      49 z13-7 (VA48) (-) - z13-29 (VA49) (+) Always 50 kΩ or more
      50 z13-29 (VA49) (-) - z13-6 (VA50) (+) Always 50 kΩ or more
      51 z13-6 (VA50) (-) - z13-28 (VA51) (+) Always 50 kΩ or more
      52 z13-28 (VA51) (-) - z13-5 (VA52) (+) Always 50 kΩ or more
      53 z13-5 (VA52) (-) - z13-27 (VA53) (+) Always 50 kΩ or more
      54 z13-27 (VA53) (-) - z13-4 (VA54) (+) Always 50 kΩ or more
      55 z13-4 (VA54) (-) - z13-26 (VA55) (+) Always 50 kΩ or more
      56 z13-26 (VA55) (-) - z13-3 (VA56) (+) Always 50 kΩ or more
      57 z13-3 (VA56) (-) - z13-25 (VA57) (+) Always 50 kΩ or more
      58 z13-25 (VA57) (-) - z13-2 (VA58) (+) Always 50 kΩ or more
      59 z13-2 (VA58) (-) - z13-24 (VA59) (+) Always 50 kΩ or more
      60 z13-24 (VA59) (-) - z13-23 (VA60) (+) Always 50 kΩ or more
      NOTE:
      • Make sure to check the polarity of each terminal (positive (+) or negative (-)) before connecting a tester.
      • Read the resistance after the value has stabilized.
      • In order to avoid damaging the terminals of the battery ECU assembly, make sure to use tester probes with a diameter of approximately 0.5 mm (0.0197 in.) when measuring the resistance of the battery ECU assembly.

      Result

      Result Proceed to
      The voltage between the terminals is 50 kΩ or more. A
      Other than above B

      Post-procedure1

    3. Install the battery ECU assembly.

    Result:

    A

    REPLACE HV BATTERY

    Refer to REMOVAL [12/2022 - ]

    Result:

    B

    See step  11

  11. REPLACE HV BATTERY

    HINT:

    Refer to REMOVAL [12/2022 - ]

    Result

    Proceed to
    NEXT

    Result:

    NEXT

    REPLACE BATTERY ECU ASSEMBLY

    Refer to REMOVAL [12/2022 - ]

scientia non olet · About LEMON Manuals
