Check Bus 5 Line [12/2022 - ]: Procedure

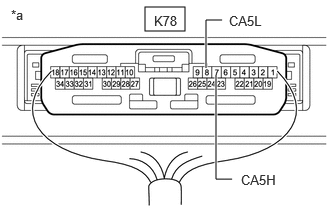

1. Disconnect the cable from the negative (-) auxiliary battery terminal.
2. Measure the resistance according to the value(s) in the table below.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Component with harness connected (Central Gateway ECU (Network Gateway ECU))

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   K78-7 (CA5H) - K78-8 (CA5L)	Cable disconnected from negative (-) auxiliary battery terminal	Below 70 Ω

   Result

   Proceed to
   OK
   NG

Result:

NG

See step  53

Result:

OK

See step  2

1. Measure the resistance according to the value(s) in the table below.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Component with harness connected (Central Gateway ECU (Network Gateway ECU))

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   K78-7 (CA5H) - K78-8 (CA5L)	Cable disconnected from negative (-) auxiliary battery terminal	54 Ω or higher

   Result

   Proceed to
   OK
   NG

Result:

NG

See step  37

Result:

OK

See step  3

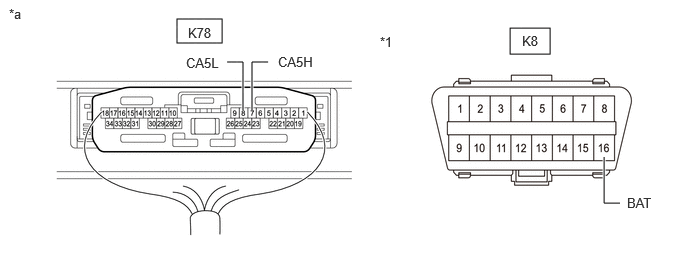

1. Measure the resistance according to the value(s) in the table below.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	DLC3	-	-
   *a	Component with harness connected (Central Gateway ECU (Network Gateway ECU))	-	-

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   K78-7 (CA5H) - K8-16 (BAT)	Cable disconnected from negative (-) auxiliary battery terminal	6 kΩ or higher
   K78-8 (CA5L) - K8-16 (BAT)

   Result

   Proceed to
   OK
   NG

Result:

NG

See step  21

Result:

OK

See step  4

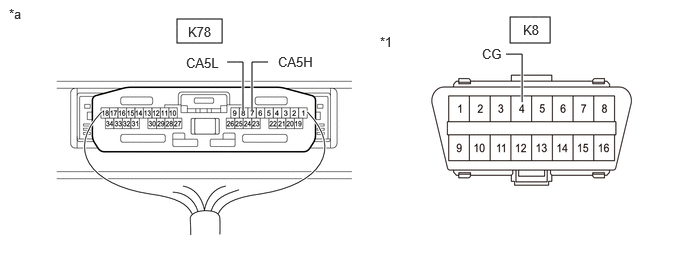

1. Measure the resistance according to the value(s) in the table below.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	DLC3	-	-
   *a	Component with harness connected (Central Gateway ECU (Network Gateway ECU))	-	-

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   K78-7 (CA5H) - K8-4 (CG)	Cable disconnected from negative (-) auxiliary battery terminal	200 Ω or higher
   K78-8 (CA5L) - K8-4 (CG)

   Result

   Proceed to
   OK
   NG

Result:

OK

REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)

Refer to REMOVAL [12/2022 - ]

Result:

NG

See step  5

1. Disconnect the K107 No. 6 global CAN junction connector.
2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   K107-9 (CANH) - K8-4 (CG)	Cable disconnected from negative (-) auxiliary battery terminal	200 Ω or higher
   K107-20 (CANL) - K8-4 (CG)

   Result

   Proceed to
   OK
   NG

Result:

NG

See step  9

Result:

OK

See step  6

1. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   K107-10 (CANH) - K8-4 (CG)	Cable disconnected from negative (-) auxiliary battery terminal	200 Ω or higher
   K107-21 (CANL) - K8-4 (CG)

   Result

   Proceed to
   OK
   NG

Result:

NG

See step  12

Result:

OK

See step  7

1. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   K107-8 (CANH) - K8-4 (CG)	Cable disconnected from negative (-) auxiliary battery terminal	200 Ω or higher
   K107-19 (CANL) - K8-4 (CG)

   Result

   Proceed to
   OK
   NG

Result:

NG

See step  10

Result:

OK

See step  8

1. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   K107-7 (CANH) - K8-4 (CG)	Cable disconnected from negative (-) auxiliary battery terminal	200 Ω or higher
   K107-18 (CANL) - K8-4 (CG)

   Result

   Proceed to
   OK
   NG

Result:

OK

REPLACE NO. 6 GLOBAL CAN JUNCTION CONNECTOR

Result:

NG

See step  11

1. Disconnect the K78 central gateway ECU (network gateway ECU) connector.
2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   K107-9 (CANH) - K8-4 (CG)	Cable disconnected from negative (-) auxiliary battery terminal	200 Ω or higher
   K107-20 (CANL) - K8-4 (CG)

   Result

   Proceed to
   OK
   NG

Result:

OK

REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)

Refer to REMOVAL [12/2022 - ]

Result:

NG

REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 6 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))

1. Disconnect the K74 air conditioning amplifier assembly connector.
2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   K107-8 (CANH) - K8-4 (CG)	Cable disconnected from negative (-) auxiliary battery terminal	200 Ω or higher
   K107-19 (CANL) - K8-4 (CG)

   Result

   Proceed to
   OK
   NG

Result:

OK

REPLACE AIR CONDITIONING AMPLIFIER ASSEMBLY

Refer to REMOVAL [12/2022 - ]

Result:

NG

REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 6 GLOBAL CAN JUNCTION CONNECTOR - AIR CONDITIONING AMPLIFIER ASSEMBLY)

1. Disconnect the K13 certification ECU (smart key ECU assembly) connector.
2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   K107-7 (CANH) - K8-4 (CG)	Cable disconnected from negative (-) auxiliary battery terminal	200 Ω or higher
   K107-18 (CANL) - K8-4 (CG)

   Result

   Proceed to
   OK
   NG

Result:

OK

REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)

Refer to REMOVAL [12/2022 - 03/2023] , or refer to REMOVAL [03/2023 - ]

Result:

NG

REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 6 GLOBAL CAN JUNCTION CONNECTOR - CERTIFICATION ECU (SMART KEY ECU ASSEMBLY))

1. Disconnect the R91 No. 14 global CAN junction connector.
2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   R91-3 (CANH) - K8-4 (CG)	Cable disconnected from negative (-) auxiliary battery terminal	200 Ω or higher
   R91-7 (CANL) - K8-4 (CG)

   Result

   Proceed to
   OK
   NG

Result:

NG

REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 14 GLOBAL CAN JUNCTION CONNECTOR - NO. 6 GLOBAL CAN JUNCTION CONNECTOR)

Result:

OK

See step  13

1. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   R91-4 (CANH) - K8-4 (CG)	Cable disconnected from negative (-) auxiliary battery terminal	200 Ω or higher
   R91-8 (CANL) - K8-4 (CG)

   Result

   Proceed to
   OK
   NG

Result:

NG

See step  18

Result:

OK

See step  14

1. Check vehicle type.

   Result

   Result	Proceed to
   w/ Seat Position Memory System	A
   w/o Seat Position Memory System	B

Result:

B

See step  16

Result:

A

See step  15

1. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   R91-1 (CANH) - K8-4 (CG)	Cable disconnected from negative (-) auxiliary battery terminal	200 Ω or higher
   R91-5 (CANL) - K8-4 (CG)

   Result

   Proceed to
   OK
   NG

Result:

NG

See step  19

Result:

OK

See step  16

1. Check vehicle type.

   Result

   Result	Proceed to
   w/ Power Back Door System	A
   w/o Power Back Door System	B

Result:

B

REPLACE NO. 14 GLOBAL CAN JUNCTION CONNECTOR

Result:

A

See step  17

1. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   R91-2 (CANH) - K8-4 (CG)	Cable disconnected from negative (-) auxiliary battery terminal	200 Ω or higher
   R91-6 (CANL) - K8-4 (CG)

   Result

   Proceed to
   OK
   NG

Result:

OK

REPLACE NO. 14 GLOBAL CAN JUNCTION CONNECTOR

Result:

NG

See step  20

1. Disconnect the K17 main body ECU (multiplex network body ECU) connector.
2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   R91-4 (CANH) - K8-4 (CG)	Cable disconnected from negative (-) auxiliary battery terminal	200 Ω or higher
   R91-8 (CANL) - K8-4 (CG)

   Result

   Proceed to
   OK
   NG

Result:

OK

REPLACE MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)

Refer to REMOVAL [12/2022 - 03/2023] , or refer to REMOVAL [03/2023 - ]

Result:

NG

REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 14 GLOBAL CAN JUNCTION CONNECTOR - MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU))

1. Disconnect the b13 position control ECU assembly LH connector.
2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   R91-1 (CANH) - K8-4 (CG)	Cable disconnected from negative (-) auxiliary battery terminal	200 Ω or higher
   R91-5 (CANL) - K8-4 (CG)

   Result

   Proceed to
   OK
   NG

Result:

OK

REPLACE POSITION CONTROL ECU ASSEMBLY LH

Refer to REMOVAL [12/2022 - 03/2023] , or refer to REMOVAL [03/2023 - ]

Result:

NG

REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 14 GLOBAL CAN JUNCTION CONNECTOR - POSITION CONTROL ECU ASSEMBLY LH)

1. Disconnect the W13 multiplex network door ECU connector.
2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   R91-2 (CANH) - K8-4 (CG)	Cable disconnected from negative (-) auxiliary battery terminal	200 Ω or higher
   R91-6 (CANL) - K8-4 (CG)

   Result

   Proceed to
   OK
   NG

Result:

OK

REPLACE MULTIPLEX NETWORK DOOR ECU

Refer to REMOVAL [12/2022 - ]

Result:

NG

REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 14 GLOBAL CAN JUNCTION CONNECTOR - MULTIPLEX NETWORK DOOR ECU)

1. Disconnect the K107 No. 6 global CAN junction connector.
2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   K107-9 (CANH) - K8-16 (BAT)	Cable disconnected from negative (-) auxiliary battery terminal	6 kΩ or higher
   K107-20 (CANL) - K8-16 (BAT)

   Result

   Proceed to
   OK
   NG

Result:

NG

See step  25

Result:

OK

See step  22

1. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   K107-10 (CANH) - K8-16 (BAT)	Cable disconnected from negative (-) auxiliary battery terminal	6 kΩ or higher
   K107-21 (CANL) - K8-16 (BAT)

   Result

   Proceed to
   OK
   NG

Result:

NG

See step  28

Result:

OK

See step  23

1. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   K107-8 (CANH) - K8-16 (BAT)	Cable disconnected from negative (-) auxiliary battery terminal	6 kΩ or higher
   K107-19 (CANL) - K8-16 (BAT)

   Result

   Proceed to
   OK
   NG

Result:

NG

See step  26

Result:

OK

See step  24

1. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   K107-7 (CANH) - K8-16 (BAT)	Cable disconnected from negative (-) auxiliary battery terminal	6 kΩ or higher
   K107-18 (CANL) - K8-16 (BAT)

   Result

   Proceed to
   OK
   NG

Result:

OK

REPLACE NO. 6 GLOBAL CAN JUNCTION CONNECTOR

Result:

NG

See step  27

1. Disconnect the K78 central gateway ECU (network gateway ECU) connector.
2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   K107-9 (CANH) - K8-16 (BAT)	Cable disconnected from negative (-) auxiliary battery terminal	6 kΩ or higher
   K107-20 (CANL) - K8-16 (BAT)

   Result

   Proceed to
   OK
   NG

Result:

OK

REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)

Refer to REMOVAL [12/2022 - ]

Result:

NG

REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 6 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))

1. Disconnect the K74 air conditioning amplifier assembly connector.
2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   K107-8 (CANH) - K8-16 (BAT)	Cable disconnected from negative (-) auxiliary battery terminal	6 kΩ or higher
   K107-19 (CANL) - K8-16 (BAT)

   Result

   Proceed to
   OK
   NG

Result:

OK

REPLACE AIR CONDITIONING AMPLIFIER ASSEMBLY

Refer to REMOVAL [12/2022 - ]

Result:

NG

REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 6 GLOBAL CAN JUNCTION CONNECTOR - AIR CONDITIONING AMPLIFIER ASSEMBLY)

1. Disconnect the K13 certification ECU (smart key ECU assembly) connector.
2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   K107-7 (CANH) - K8-16 (BAT)	Cable disconnected from negative (-) auxiliary battery terminal	6 kΩ or higher
   K107-18 (CANL) - K8-16 (BAT)

   Result

   Proceed to
   OK
   NG

Result:

OK

REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)

Refer to REMOVAL [12/2022 - 03/2023] , or refer to REMOVAL [03/2023 - ]

Result:

NG

REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 6 GLOBAL CAN JUNCTION CONNECTOR - CERTIFICATION ECU (SMART KEY ECU ASSEMBLY))

1. Disconnect the R91 No. 14 global CAN junction connector.
2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   R91-3 (CANH) - K8-16 (BAT)	Cable disconnected from negative (-) auxiliary battery terminal	6 kΩ or higher
   R91-7 (CANL) - K8-16 (BAT)

   Result

   Proceed to
   OK
   NG

Result:

NG

REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 14 GLOBAL CAN JUNCTION CONNECTOR - NO. 6 GLOBAL CAN JUNCTION CONNECTOR)

Result:

OK

See step  29

1. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   R91-4 (CANH) - K8-16 (BAT)	Cable disconnected from negative (-) auxiliary battery terminal	6 kΩ or higher
   R91-8 (CANL) - K8-16 (BAT)

   Result

   Proceed to
   OK
   NG

Result:

NG

See step  34

Result:

OK

See step  30

1. Check vehicle type.

   Result

   Result	Proceed to
   w/ Seat Position Memory System	A
   w/o Seat Position Memory System	B

Result:

B

See step  32

Result:

A

See step  31

1. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   R91-1 (CANH) - K8-16 (BAT)	Cable disconnected from negative (-) auxiliary battery terminal	6 kΩ or higher
   R91-5 (CANL) - K8-16 (BAT)

   Result

   Proceed to
   OK
   NG

Result:

NG

See step  35

Result:

OK

See step  32

1. Check vehicle type.

   Result

   Result	Proceed to
   w/ Power Back Door System	A
   w/o Power Back Door System	B

Result:

B

REPLACE NO. 14 GLOBAL CAN JUNCTION CONNECTOR

Result:

A

See step  33

1. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   R91-2 (CANH) - K8-16 (BAT)	Cable disconnected from negative (-) auxiliary battery terminal	6 kΩ or higher
   R91-6 (CANL) - K8-16 (BAT)

   Result

   Proceed to
   OK
   NG

Result:

OK

REPLACE NO. 14 GLOBAL CAN JUNCTION CONNECTOR

Result:

NG

See step  36

1. Disconnect the K17 main body ECU (multiplex network body ECU) connector.
2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   R91-4 (CANH) - K8-16 (BAT)	Cable disconnected from negative (-) auxiliary battery terminal	6 kΩ or higher
   R91-8 (CANL) - K8-16 (BAT)

   Result

   Proceed to
   OK
   NG

Result:

OK

REPLACE MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)

Refer to REMOVAL [12/2022 - 03/2023] , or refer to REMOVAL [03/2023 - ]

Result:

NG

REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 14 GLOBAL CAN JUNCTION CONNECTOR - MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU))

1. Disconnect the b13 position control ECU assembly LH connector.
2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   R91-1 (CANH) - K8-16 (BAT)	Cable disconnected from negative (-) auxiliary battery terminal	6 kΩ or higher
   R91-5 (CANL) - K8-16 (BAT)

   Result

   Proceed to
   OK
   NG

Result:

OK

REPLACE POSITION CONTROL ECU ASSEMBLY LH

Refer to REMOVAL [12/2022 - 03/2023] , or refer to REMOVAL [03/2023 - ]

Result:

NG

REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 14 GLOBAL CAN JUNCTION CONNECTOR - POSITION CONTROL ECU ASSEMBLY LH)

1. Disconnect the W13 multiplex network door ECU connector.
2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   R91-2 (CANH) - K8-16 (BAT)	Cable disconnected from negative (-) auxiliary battery terminal	6 kΩ or higher
   R91-6 (CANL) - K8-16 (BAT)

   Result

   Proceed to
   OK
   NG

Result:

OK

REPLACE MULTIPLEX NETWORK DOOR ECU

Refer to REMOVAL [12/2022 - ]

Result:

NG

REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 14 GLOBAL CAN JUNCTION CONNECTOR - MULTIPLEX NETWORK DOOR ECU)

1. Disconnect the K107 No. 6 global CAN junction connector.
2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   K107-9 (CANH) - K107-20 (CANL)	Cable disconnected from negative (-) auxiliary battery terminal	108 to 132 Ω

   Result

   Proceed to
   OK
   NG

Result:

NG

See step  41

Result:

OK

See step  38

1. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   K107-10 (CANH) - K107-21 (CANL)	Cable disconnected from negative (-) auxiliary battery terminal	108 to 132 Ω

   Result

   Proceed to
   OK
   NG

Result:

NG

See step  44

Result:

OK

See step  39

1. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   K107-8 (CANH) - K107-19 (CANL)	Cable disconnected from negative (-) auxiliary battery terminal	200 Ω or higher

   Result

   Proceed to
   OK
   NG

Result:

NG

See step  42

Result:

OK

See step  40

1. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   K107-7 (CANH) - K107-18 (CANL)	Cable disconnected from negative (-) auxiliary battery terminal	200 Ω or higher

   Result

   Proceed to
   OK
   NG

Result:

OK

REPLACE NO. 6 GLOBAL CAN JUNCTION CONNECTOR

Result:

NG

See step  43

1. Disconnect the K78 central gateway ECU (network gateway ECU) connector.
2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   K107-9 (CANH) - K107-20 (CANL)	Cable disconnected from negative (-) auxiliary battery terminal	1 MΩ or higher

   Result

   Proceed to
   OK
   NG

Result:

OK

REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)

Refer to REMOVAL [12/2022 - ]

Result:

NG

REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 6 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))

1. Disconnect the K74 air conditioning amplifier assembly connector.
2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   K107-8 (CANH) - K107-19 (CANL)	Cable disconnected from negative (-) auxiliary battery terminal	1 MΩ or higher

   Result

   Proceed to
   OK
   NG

Result:

OK

REPLACE AIR CONDITIONING AMPLIFIER ASSEMBLY

Refer to REMOVAL [12/2022 - ]

Result:

NG

REPAIR OR REPLACE CAN BRANCH LINES OR CONNECTOR (NO. 6 GLOBAL CAN JUNCTION CONNECTOR - AIR CONDITIONING AMPLIFIER ASSEMBLY)

1. Disconnect the K13 certification ECU (smart key ECU assembly) connector.
2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   K107-7 (CANH) - K107-18 (CANL)	Cable disconnected from negative (-) auxiliary battery terminal	1 MΩ or higher

   Result

   Proceed to
   OK
   NG

Result:

OK

REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)

Refer to REMOVAL [12/2022 - 03/2023] , or refer to REMOVAL [03/2023 - ]

Result:

NG

REPAIR OR REPLACE CAN BRANCH LINES OR CONNECTOR (NO. 6 GLOBAL CAN JUNCTION CONNECTOR - CERTIFICATION ECU (SMART KEY ECU ASSEMBLY))

1. Reconnect the K107 No. 6 global CAN junction connector.
2. Disconnect the R91 No. 14 global CAN junction connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   R91-3 (CANH) - R91-7 (CANL)	Cable disconnected from negative (-) auxiliary battery terminal	108 to 132 Ω

   Result

   Proceed to
   OK
   NG

Result:

NG

REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 14 GLOBAL CAN JUNCTION CONNECTOR - NO. 6 GLOBAL CAN JUNCTION CONNECTOR)

Result:

OK

See step  45

1. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   R91-4 (CANH) - R91-8 (CANL)	Cable disconnected from negative (-) auxiliary battery terminal	108 to 132 Ω

   Result

   Proceed to
   OK
   NG

Result:

NG

See step  50

Result:

OK

See step  46

1. Check vehicle type.

   Result

   Result	Proceed to
   w/ Seat Position Memory System	A
   w/o Seat Position Memory System	B

Result:

B

See step  48

Result:

A

See step  47

1. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   R91-1 (CANH) - R91-5 (CANL)	Cable disconnected from negative (-) auxiliary battery terminal	200 Ω or higher

   Result

   Proceed to
   OK
   NG

Result:

NG

See step  51

Result:

OK

See step  48

1. Check vehicle type.

   Result

   Result	Proceed to
   w/ Power Back Door System	A
   w/o Power Back Door System	B

Result:

B

REPLACE NO. 14 GLOBAL CAN JUNCTION CONNECTOR

Result:

A

See step  49

1. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   R91-2 (CANH) - R91-6 (CANL)	Cable disconnected from negative (-) auxiliary battery terminal	200 Ω or higher

   Result

   Proceed to
   OK
   NG

Result:

OK

REPLACE NO. 14 GLOBAL CAN JUNCTION CONNECTOR

Result:

NG

See step  52

1. Disconnect the K17 main body ECU (multiplex network body ECU) connector.
2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   R91-4 (CANH) - R91-8 (CANL)	Cable disconnected from negative (-) auxiliary battery terminal	1 MΩ or higher

   Result

   Proceed to
   OK
   NG

Result:

OK

REPLACE MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)

Refer to REMOVAL [12/2022 - 03/2023] , or refer to REMOVAL [03/2023 - ]

Result:

NG

REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 14 GLOBAL CAN JUNCTION CONNECTOR - MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU))

1. Disconnect the b13 position control ECU assembly LH connector.
2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   R91-1 (CANH) - R91-5 (CANL)	Cable disconnected from negative (-) auxiliary battery terminal	1 MΩ or higher

   Result

   Proceed to
   OK
   NG

Result:

OK

REPLACE POSITION CONTROL ECU ASSEMBLY LH

Refer to REMOVAL [12/2022 - 03/2023] , or refer to REMOVAL [03/2023 - ]

Result:

NG

REPAIR OR REPLACE CAN BRANCH LINES OR CONNECTOR (NO. 14 GLOBAL CAN JUNCTION CONNECTOR - POSITION CONTROL ECU ASSEMBLY LH)

1. Disconnect the W13 multiplex network door ECU connector.
2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   R91-2 (CANH) - R91-6 (CANL)	Cable disconnected from negative (-) auxiliary battery terminal	1 MΩ or higher

   Result

   Proceed to
   OK
   NG

Result:

OK

REPLACE MULTIPLEX NETWORK DOOR ECU

Refer to REMOVAL [12/2022 - ]

Result:

NG

REPAIR OR REPLACE CAN BRANCH LINES OR CONNECTOR (NO. 14 GLOBAL CAN JUNCTION CONNECTOR - MULTIPLEX NETWORK DOOR ECU)

1. Disconnect the K78 central gateway ECU (network gateway ECU) connector.
2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   K78-7 (CA5H) - K78-8 (CA5L)	Cable disconnected from negative (-) auxiliary battery terminal	108 to 132 Ω

   Result

   Proceed to
   OK
   NG

Result:

OK

REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)

Refer to REMOVAL [12/2022 - ]

Result:

NG

See step  54

1. Reconnect the K78 central gateway ECU (network gateway ECU) connector.
2. Disconnect the K107 No. 6 global CAN junction connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   K107-9 (CANH) - K107-20 (CANL)	Cable disconnected from negative (-) auxiliary battery terminal	108 to 132 Ω

   Result

   Proceed to
   OK
   NG

Result:

NG

REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 6 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))

Result:

OK

See step  55

1. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   K107-10 (CANH) - K107-21 (CANL)	Cable disconnected from negative (-) auxiliary battery terminal	108 to 132 Ω

   Result

   Proceed to
   OK
   NG

Result:

OK

REPLACE NO. 6 GLOBAL CAN JUNCTION CONNECTOR

Result:

NG

See step  56

1. Reconnect the K107 No. 6 global CAN junction connector.
2. Disconnect the R91 No. 14 global CAN junction connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   R91-3 (CANH) - R91-7 (CANL)	Cable disconnected from negative (-) auxiliary battery terminal	108 to 132 Ω

   Result

   Proceed to
   OK
   NG

Result:

NG

REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 14 GLOBAL CAN JUNCTION CONNECTOR - NO. 6 GLOBAL CAN JUNCTION CONNECTOR)

Result:

OK

See step  57

1. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   R91-4 (CANH) - R91-8 (CANL)	Cable disconnected from negative (-) auxiliary battery terminal	108 to 132 Ω

   Result

   Proceed to
   OK
   NG

Result:

OK

REPLACE NO. 14 GLOBAL CAN JUNCTION CONNECTOR

Result:

NG

See step  58

1. Reconnect the R91 No. 14 global CAN junction connector.
2. Disconnect the K17 main body ECU (multiplex network body ECU) connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   K17-2 (CANH) - K17-1 (CANL)	Cable disconnected from negative (-) auxiliary battery terminal	108 to 132 Ω

   Result

   Proceed to
   OK
   NG

Result:

OK

REPLACE MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)

Refer to REMOVAL [12/2022 - 03/2023] , or refer to REMOVAL [03/2023 - ]

Result:

NG

REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) - NO. 14 GLOBAL CAN JUNCTION CONNECTOR)
