Check Bus 3 Line [12/2022 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. CHECK FOR OPEN IN CAN MAIN BUS LINES
    1. Disconnect the cable from the negative (-) auxiliary battery terminal.
    2. Measure the resistance according to the value(s) in the table below.

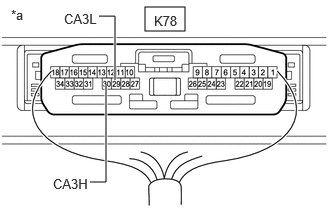

      GTY1144885Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component with harness connected
      (Central Gateway ECU (Network Gateway ECU))

      Standard Resistance

      Tester Connection Condition Specified Condition
      K78-30 (CA3H) - K78-29 (CA3L) Cable disconnected from negative (-) auxiliary battery terminal Below 70 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  41

    Result:

    OK

    See step  2

  2. CHECK FOR SHORT IN CAN BUS LINES
    1. Measure the resistance according to the value(s) in the table below.
      GTY1144885Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component with harness connected
      (Central Gateway ECU (Network Gateway ECU))

      Standard Resistance

      Tester Connection Condition Specified Condition
      K78-30 (CA3H) - K78-29 (CA3L) Cable disconnected from negative (-) auxiliary battery terminal 54 Ω or higher

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  29

    Result:

    OK

    See step  3

  3. CHECK FOR SHORT TO +B IN CAN BUS LINE
    1. Measure the resistance according to the value(s) in the table below.

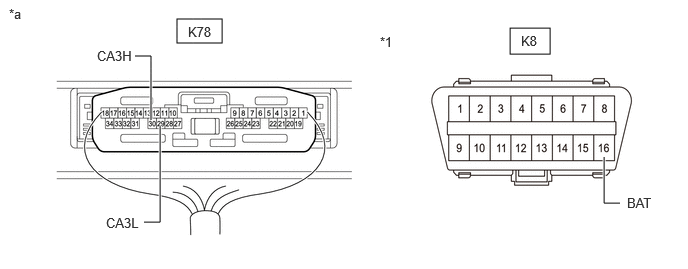

      GTY1158956Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Component with harness connected
      (Central Gateway ECU (Network Gateway ECU))      		 - -

      Standard Resistance

      Tester Connection Condition Specified Condition
      K78-30 (CA3H) - K8-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      K78-29 (CA3L) - K8-16 (BAT)

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  17

    Result:

    OK

    See step  4

  4. CHECK FOR SHORT TO GND IN CAN BUS LINE
    1. Measure the resistance according to the value(s) in the table below.
      GTY1158957Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Component with harness connected
      (Central Gateway ECU (Network Gateway ECU))      		 - -

      Standard Resistance

      Tester Connection Condition Specified Condition
      K78-30 (CA3H) - K8-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      K78-29 (CA3L) - K8-4 (CG)

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)

    Refer to REMOVAL [12/2022 - ]

    Result:

    NG

    See step  5

  5. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 10 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
    1. Disconnect the K110 No. 10 global CAN junction connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      K110-4 (CANH) - K8-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      K110-15 (CANL) - K8-4 (CG)

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  12

    Result:

    OK

    See step  6

  6. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 10 GLOBAL CAN JUNCTION CONNECTOR - COMBINATION METER ASSEMBLY)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      K110-3 (CANH) - K8-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      K110-14 (CANL) - K8-4 (CG)

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  13

    Result:

    OK

    See step  7

  7. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 10 GLOBAL CAN JUNCTION CONNECTOR - RADIO AND DISPLAY RECEIVER ASSEMBLY)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      K110-1 (CANH) - K8-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      K110-12 (CANL) - K8-4 (CG)

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  14

    Result:

    OK

    See step  8

  8. CHECK VEHICLE TYPE
    1. Check vehicle type.

      Result

      Result Proceed to
      w/ Telematics Transceiver A
      w/o Telematics Transceiver B

    Result:

    B

    See step  10

    Result:

    A

    See step  9

  9. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 10 GLOBAL CAN JUNCTION CONNECTOR - DCM (TELEMATICS TRANSCEIVER))
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      K110-2 (CANH) - K8-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      K110-13 (CANL) - K8-4 (CG)

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  15

    Result:

    OK

    See step  10

  10. CHECK VEHICLE TYPE
    1. Check vehicle type.

      Result

      Result Proceed to
      w/ Digital Inner Mirror System A
      w/o Digital Inner Mirror System B

    Result:

    B

    REPLACE NO. 10 GLOBAL CAN JUNCTION CONNECTOR

    Result:

    A

    See step  11

  11. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 10 GLOBAL CAN JUNCTION CONNECTOR - INNER REAR VIEW MIRROR ASSEMBLY)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      K110-6 (CANH) - K8-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      K110-17 (CANL) - K8-4 (CG)

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE NO. 10 GLOBAL CAN JUNCTION CONNECTOR

    Result:

    NG

    See step  16

  12. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 10 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
    1. Disconnect the K78 central gateway ECU (network gateway ECU) connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      K110-4 (CANH) - K8-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      K110-15 (CANL) - K8-4 (CG)

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)

    Refer to REMOVAL [12/2022 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 10 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))

  13. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 10 GLOBAL CAN JUNCTION CONNECTOR - COMBINATION METER ASSEMBLY)
    1. Disconnect the K19 combination meter assembly connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      K110-3 (CANH) - K8-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      K110-14 (CANL) - K8-4 (CG)

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE COMBINATION METER ASSEMBLY

    Refer to REMOVAL [12/2022 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 10 GLOBAL CAN JUNCTION CONNECTOR - COMBINATION METER ASSEMBLY)

  14. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 10 GLOBAL CAN JUNCTION CONNECTOR - RADIO AND DISPLAY RECEIVER ASSEMBLY)
    1. Disconnect the K81 radio and display receiver assembly connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      K110-1 (CANH) - K8-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      K110-12 (CANL) - K8-4 (CG)

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE RADIO AND DISPLAY RECEIVER ASSEMBLY

    Refer to REMOVAL [12/2022 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 10 GLOBAL CAN JUNCTION CONNECTOR - RADIO AND DISPLAY RECEIVER ASSEMBLY)

  15. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 10 GLOBAL CAN JUNCTION CONNECTOR - DCM (TELEMATICS TRANSCEIVER))
    1. Disconnect the K9 DCM (telematics transceiver) connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      K110-2 (CANH) - K8-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      K110-13 (CANL) - K8-4 (CG)

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE DCM (TELEMATICS TRANSCEIVER)

    Refer to REMOVAL [12/2022 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 10 GLOBAL CAN JUNCTION CONNECTOR - DCM (TELEMATICS TRANSCEIVER))

  16. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 10 GLOBAL CAN JUNCTION CONNECTOR - INNER REAR VIEW MIRROR ASSEMBLY)
    1. Disconnect the U12 inner rear view mirror assembly connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      K110-6 (CANH) - K8-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      K110-17 (CANL) - K8-4 (CG)

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE INNER REAR VIEW MIRROR ASSEMBLY

    Refer to REMOVAL [12/2022 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 10 GLOBAL CAN JUNCTION CONNECTOR - INNER REAR VIEW MIRROR ASSEMBLY)

  17. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 10 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
    1. Disconnect the K110 No. 10 global CAN junction connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      K110-4 (CANH) - K8-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      K110-15 (CANL) - K8-16 (BAT)

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  24

    Result:

    OK

    See step  18

  18. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 10 GLOBAL CAN JUNCTION CONNECTOR - COMBINATION METER ASSEMBLY)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      K110-3 (CANH) - K8-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      K110-14 (CANL) - K8-16 (BAT)

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  25

    Result:

    OK

    See step  19

  19. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 10 GLOBAL CAN JUNCTION CONNECTOR - RADIO AND DISPLAY RECEIVER ASSEMBLY)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      K110-1 (CANH) - K8-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      K110-12 (CANL) - K8-16 (BAT)

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  26

    Result:

    OK

    See step  20

  20. CHECK VEHICLE TYPE
    1. Check vehicle type.

      Result

      Result Proceed to
      w/ Telematics Transceiver A
      w/o Telematics Transceiver B

    Result:

    B

    See step  22

    Result:

    A

    See step  21

  21. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 10 GLOBAL CAN JUNCTION CONNECTOR - DCM (TELEMATICS TRANSCEIVER))
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      K110-2 (CANH) - K8-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      K110-13 (CANL) - K8-16 (BAT)

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  27

    Result:

    OK

    See step  22

  22. CHECK VEHICLE TYPE
    1. Check vehicle type.

      Result

      Result Proceed to
      w/ Digital Inner Mirror System A
      w/o Digital Inner Mirror System B

    Result:

    B

    REPLACE NO. 10 GLOBAL CAN JUNCTION CONNECTOR

    Result:

    A

    See step  23

  23. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 10 GLOBAL CAN JUNCTION CONNECTOR - INNER REAR VIEW MIRROR ASSEMBLY)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      K110-6 (CANH) - K8-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      K110-17 (CANL) - K8-16 (BAT)

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE NO. 10 GLOBAL CAN JUNCTION CONNECTOR

    Result:

    NG

    See step  28

  24. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 10 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
    1. Disconnect the K78 central gateway ECU (network gateway ECU) connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      K110-4 (CANH) - K8-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      K110-15 (CANL) - K8-16 (BAT)

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)

    Refer to REMOVAL [12/2022 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 10 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))

  25. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 10 GLOBAL CAN JUNCTION CONNECTOR - COMBINATION METER ASSEMBLY)
    1. Disconnect the K19 combination meter assembly connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      K110-3 (CANH) - K8-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      K110-14 (CANL) - K8-16 (BAT)

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE COMBINATION METER ASSEMBLY

    Refer to REMOVAL [12/2022 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 10 GLOBAL CAN JUNCTION CONNECTOR - COMBINATION METER ASSEMBLY)

  26. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 10 GLOBAL CAN JUNCTION CONNECTOR - RADIO AND DISPLAY RECEIVER ASSEMBLY)
    1. Disconnect the K81 radio and display receiver assembly connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      K110-1 (CANH) - K8-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      K110-12 (CANL) - K8-6 (BAT)

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE RADIO AND DISPLAY RECEIVER ASSEMBLY

    Refer to REMOVAL [12/2022 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 10 GLOBAL CAN JUNCTION CONNECTOR - RADIO AND DISPLAY RECEIVER ASSEMBLY)

  27. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 10 GLOBAL CAN JUNCTION CONNECTOR - DCM (TELEMATICS TRANSCEIVER))
    1. Disconnect the K9 DCM (telematics transceiver) connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      K110-2 (CANH) - K8-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      K110-13 (CANL) - K8-16 (BAT)

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE DCM (TELEMATICS TRANSCEIVER)

    Refer to REMOVAL [12/2022 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 10 GLOBAL CAN JUNCTION CONNECTOR - DCM (TELEMATICS TRANSCEIVER))

  28. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 10 GLOBAL CAN JUNCTION CONNECTOR - INNER REAR VIEW MIRROR ASSEMBLY)
    1. Disconnect the U12 inner rear view mirror assembly connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      K110-6 (CANH) - K8-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      K110-17 (CANL) - K8-16 (BAT)

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE INNER REAR VIEW MIRROR ASSEMBLY

    Refer to REMOVAL [12/2022 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 10 GLOBAL CAN JUNCTION CONNECTOR - INNER REAR VIEW MIRROR ASSEMBLY)

  29. CHECK FOR SHORT IN CAN BUS LINES (NO. 10 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
    1. Disconnect the K110 No. 10 global CAN junction connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      K110-4 (CANH) - K110-15 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  36

    Result:

    OK

    See step  30

  30. CHECK FOR SHORT IN CAN BUS LINES (NO. 10 GLOBAL CAN JUNCTION CONNECTOR - COMBINATION METER ASSEMBLY)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      K110-3 (CANH) - K110-14 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  37

    Result:

    OK

    See step  31

  31. CHECK FOR SHORT IN CAN BUS LINES (NO. 10 GLOBAL CAN JUNCTION CONNECTOR - RADIO AND DISPLAY RECEIVER ASSEMBLY)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      K110-1 (CANH) - K110-12 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  38

    Result:

    OK

    See step  32

  32. CHECK VEHICLE TYPE
    1. Check vehicle type.

      Result

      Result Proceed to
      w/ Telematics Transceiver A
      w/o Telematics Transceiver B

    Result:

    B

    See step  34

    Result:

    A

    See step  33

  33. CHECK FOR SHORT IN CAN BUS LINES (NO. 10 GLOBAL CAN JUNCTION CONNECTOR - DCM (TELEMATICS TRANSCEIVER))
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      K110-2 (CANH) - K110-13 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  39

    Result:

    OK

    See step  34

  34. CHECK VEHICLE TYPE
    1. Check vehicle type.

      Result

      Result Proceed to
      w/ Digital Inner Mirror System A
      w/o Digital Inner Mirror System B

    Result:

    B

    REPLACE NO. 10 GLOBAL CAN JUNCTION CONNECTOR

    Result:

    A

    See step  35

  35. CHECK FOR SHORT IN CAN BUS LINES (NO. 10 GLOBAL CAN JUNCTION CONNECTOR - INNER REAR VIEW MIRROR ASSEMBLY)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      K110-6 (CANH) - K110-17 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE NO. 10 GLOBAL CAN JUNCTION CONNECTOR

    Result:

    NG

    See step  40

  36. CHECK FOR SHORT IN CAN BUS LINES (NO. 10 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
    1. Disconnect the K78 central gateway ECU (network gateway ECU) connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      K110-4 (CANH) - K110-15 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 1 MΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)

    Refer to REMOVAL [12/2022 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 10 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))

  37. CHECK FOR SHORT IN CAN BUS LINES (NO. 10 GLOBAL CAN JUNCTION CONNECTOR - COMBINATION METER ASSEMBLY)
    1. Disconnect the K19 combination meter assembly connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      K110-3 (CANH) - K110-14 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 1 MΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE COMBINATION METER ASSEMBLY

    Refer to REMOVAL [12/2022 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 10 GLOBAL CAN JUNCTION CONNECTOR - COMBINATION METER ASSEMBLY)

  38. CHECK FOR SHORT IN CAN BUS LINES (NO. 10 GLOBAL CAN JUNCTION CONNECTOR - RADIO AND DISPLAY RECEIVER ASSEMBLY)
    1. Disconnect the K81 radio and display receiver assembly connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      K110-1 (CANH) - K110-12 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 1 MΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE RADIO AND DISPLAY RECEIVER ASSEMBLY

    Refer to REMOVAL [12/2022 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN BRANCH LINES OR CONNECTOR (NO. 10 GLOBAL CAN JUNCTION CONNECTOR - RADIO AND DISPLAY RECEIVER ASSEMBLY)

  39. CHECK FOR SHORT IN CAN BUS LINES (NO. 10 GLOBAL CAN JUNCTION CONNECTOR - DCM (TELEMATICS TRANSCEIVER))
    1. Disconnect the K9 DCM (telematics transceiver) connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      K110-2 (CANH) - K110-13 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 1 MΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE DCM (TELEMATICS TRANSCEIVER)

    Refer to REMOVAL [12/2022 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN BRANCH LINES OR CONNECTOR (NO. 10 GLOBAL CAN JUNCTION CONNECTOR - DCM (TELEMATICS TRANSCEIVER))

  40. CHECK FOR SHORT IN CAN BUS LINES (NO. 10 GLOBAL CAN JUNCTION CONNECTOR - INNER REAR VIEW MIRROR ASSEMBLY)
    1. Disconnect the U12 inner rear view mirror assembly connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      K110-6 (CANH) - K110-17 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 1 MΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE INNER REAR VIEW MIRROR ASSEMBLY

    Refer to REMOVAL [12/2022 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN BRANCH LINES OR CONNECTOR (NO. 10 GLOBAL CAN JUNCTION CONNECTOR - INNER REAR VIEW MIRROR ASSEMBLY)

  41. CHECK FOR OPEN IN CAN MAIN BUS LINES (CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
    1. Disconnect the K78 central gateway ECU (network gateway ECU) connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      K78-30 (CA3H) - K78-29 (CA3L) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)

    Refer to REMOVAL [12/2022 - ]

    Result:

    NG

    See step  42

  42. CHECK FOR OPEN IN CAN MAIN BUS LINES (NO. 10 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
    1. Reconnect the K78 central gateway ECU (network gateway ECU) connector.
    2. Disconnect the K110 No. 10 global CAN junction connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      K110-4 (CANH) - K110-15 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 10 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))

    Result:

    OK

    See step  43

  43. CHECK FOR OPEN IN CAN MAIN BUS LINES (NO. 10 GLOBAL CAN JUNCTION CONNECTOR - COMBINATION METER ASSEMBLY)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      K110-3 (CANH) - K110-14 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE NO. 10 GLOBAL CAN JUNCTION CONNECTOR

    Result:

    NG

    See step  44

  44. CHECK FOR OPEN IN CAN MAIN BUS LINES (COMBINATION METER ASSEMBLY)
    1. Reconnect the K110 No. 10 global CAN junction connector.
    2. Disconnect the K19 combination meter assembly connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      K19-31 (CANH) - K19-14 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE COMBINATION METER ASSEMBLY

    Refer to REMOVAL [12/2022 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (COMBINATION METER ASSEMBLY - NO. 10 GLOBAL CAN JUNCTION CONNECTOR)

scientia non olet · About LEMON Manuals
