Section 20 (Can Communication System (HEV) - Circuit Tests (2 Of 3))
>>
CAN COMMUNICATION SYSTEM (for HEV Model)
>>
Driver Seat Control ECU Communication Stop Mode [12/2022 - ]
>>

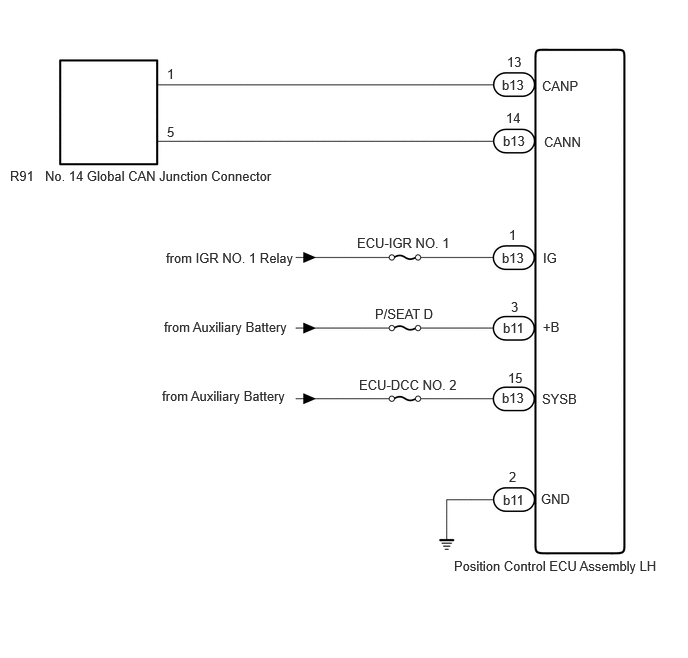

Wiring Diagram
Driver Seat Control ECU Communication Stop Mode [12/2022 - ]: Wiring Diagram
WARNING:
This page is about a different variant/trim than selected.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
