Check Bus 1 Line [12/2022 - ]: Wiring Diagram
WARNING: This page is about a different variant/trim than selected.

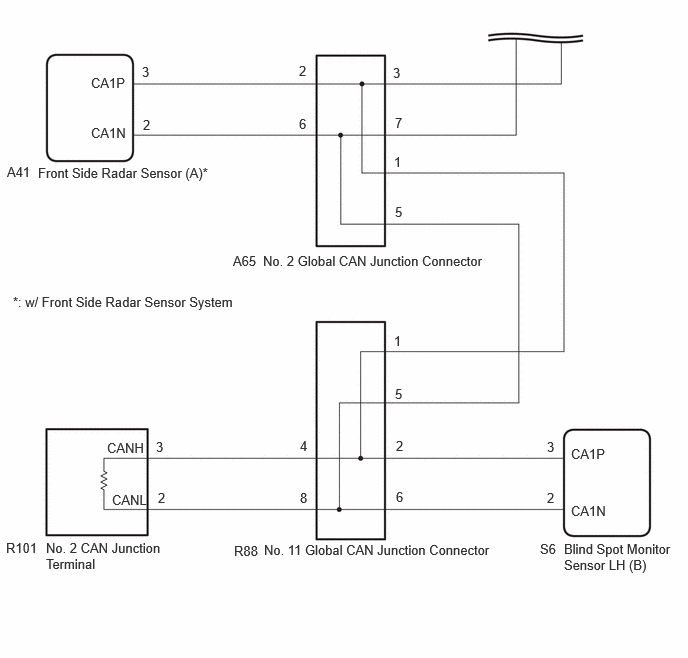

w/ Panoramic View Monitor System:
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
w/o Panoramic View Monitor System:
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

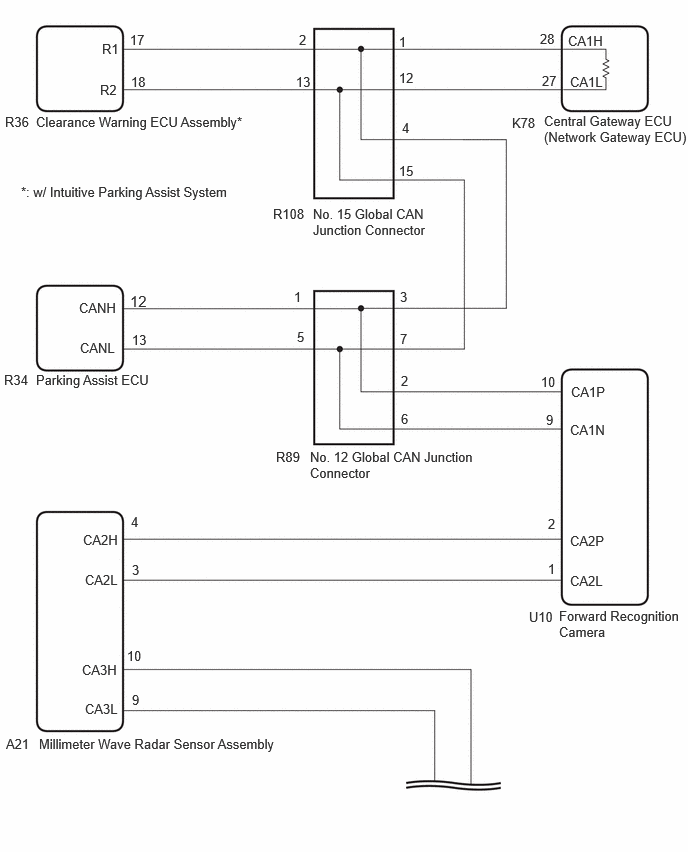

w/ Parking Assist Monitor System:
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

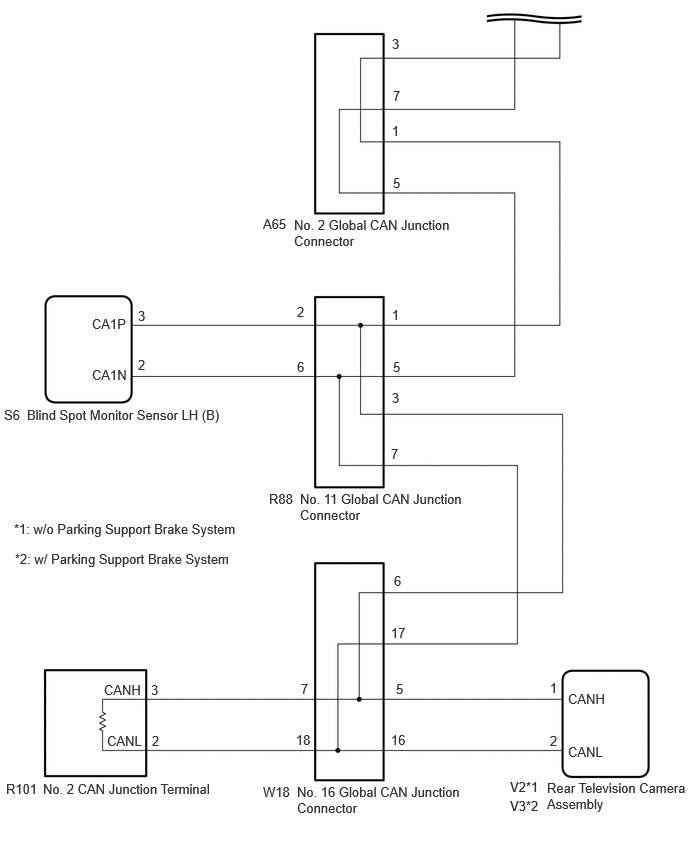

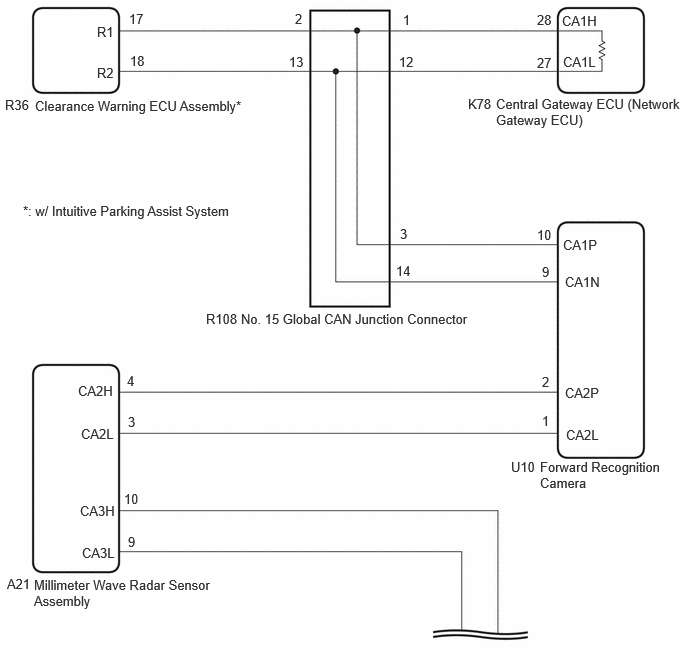

w/o Parking Assist Monitor System:
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
