Check Bus 1 Line [12/2022 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. CHECK FOR OPEN IN CAN MAIN BUS LINES
    1. Disconnect the cable from the negative (-) auxiliary battery terminal.
    2. Measure the resistance according to the value(s) in the table below.

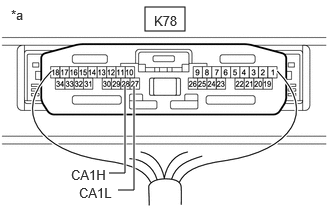

      GTY1154057Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component with harness connected
      (Central Gateway ECU (Network Gateway ECU))

      Standard Resistance

      Tester Connection Condition Specified Condition
      K78-28 (CA1H) - K78-27 (CA1L) Cable disconnected from negative (-) auxiliary battery terminal Below 70 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  107

    Result:

    OK

    See step  2

  2. CHECK FOR SHORT IN CAN BUS LINES
    1. Measure the resistance according to the value(s) in the table below.
      GTY1154057Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component with harness connected
      (Central Gateway ECU (Network Gateway ECU))

      Standard Resistance

      Tester Connection Condition Specified Condition
      K78-28 (CA1H) - K78-27 (CA1L) Cable disconnected from negative (-) auxiliary battery terminal 54 Ω or higher

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  73

    Result:

    OK

    See step  3

  3. CHECK FOR SHORT TO +B IN CAN BUS LINE
    1. Measure the resistance according to the value(s) in the table below.

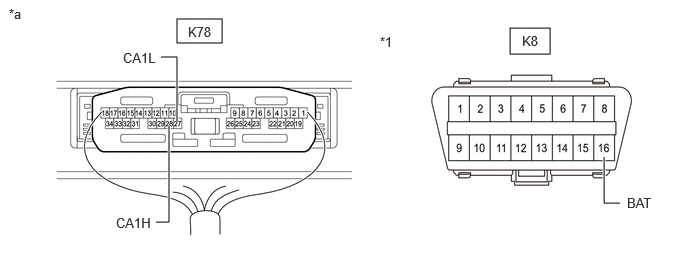

      GTY1158954Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Component with harness connected
      (Central Gateway ECU (Network Gateway ECU))      		 - -

      Standard Resistance

      Tester Connection Condition Specified Condition
      K78-28 (CA1H) - K8-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      K78-27 (CA1L) - K8-16 (BAT)

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  39

    Result:

    OK

    See step  4

  4. CHECK FOR SHORT TO GND IN CAN BUS LINE
    1. Measure the resistance according to the value(s) in the table below.

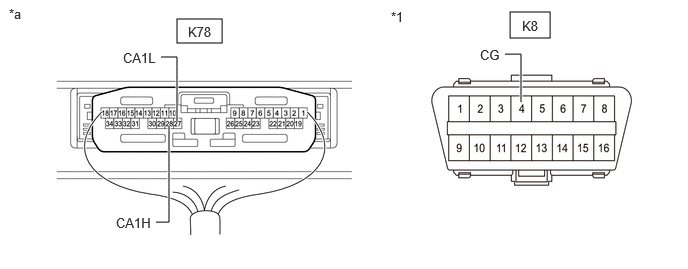

      GTY1138828Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Component with harness connected
      (Central Gateway ECU (Network Gateway ECU))      		 - -

      Standard Resistance

      Tester Connection Condition Specified Condition
      K78-28 (CA1H) - K8-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      K78-27 (CA1L) - K8-4 (CG)

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)

    Refer to REMOVAL [12/2022 - ]

    Result:

    NG

    See step  5

  5. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 15 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
    1. Disconnect the R108 No. 15 global CAN junction connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      R108-1 (CANH) - K8-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      R108-12 (CANL) - K8-4 (CG)

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  8

    Result:

    OK

    See step  6

  6. CHECK VEHICLE TYPE
    1. Check vehicle type.

      Result

      Result Proceed to
      w/ Panoramic View Monitor System A
      w/o Panoramic View Monitor System B

    Result:

    B

    See step  14

    Result:

    A

    See step  7

  7. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 15 GLOBAL CAN JUNCTION CONNECTOR - NO. 12 GLOBAL CAN JUNCTION CONNECTOR)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      R108-4 (CANH) - K8-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      R108-15 (CANL) - K8-4 (CG)

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    See step  15

    Result:

    NG

    See step  9

  8. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 15 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
    1. Disconnect the K78 central gateway ECU (network gateway ECU) connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      R108-1 (CANH) - K8-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      R108-12 (CANL) - K8-4 (CG)

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)

    Refer to REMOVAL [12/2022 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 15 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))

  9. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 12 GLOBAL CAN JUNCTION CONNECTOR - NO. 15 GLOBAL CAN JUNCTION CONNECTOR)
    1. Disconnect the R89 No. 12 global CAN junction connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      R89-3 (CANH) - K8-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      R89-7 (CANL) - K8-4 (CG)

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 12 GLOBAL CAN JUNCTION CONNECTOR - NO. 15 GLOBAL CAN JUNCTION CONNECTOR)

    Result:

    OK

    See step  10

  10. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 12 GLOBAL CAN JUNCTION CONNECTOR - FORWARD RECOGNITION CAMERA)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      R89-2 (CANH) - K8-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      R89-6 (CANL) - K8-4 (CG)

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  12

    Result:

    OK

    See step  11

  11. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 12 GLOBAL CAN JUNCTION CONNECTOR - PARKING ASSIST ECU)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      R89-1 (CANH) - K8-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      R89-5 (CANL) - K8-4 (CG)

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE NO. 12 GLOBAL CAN JUNCTION CONNECTOR

    Result:

    NG

    See step  13

  12. CHECK FOR SHORT TO GND IN CAN BUS LINE (FORWARD RECOGNITION CAMERA - NO. 12 GLOBAL CAN JUNCTION CONNECTOR)
    1. Disconnect the U10 forward recognition camera connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      U10-10 (CA1P) - K8-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      U10-9 (CA1N) - K8-4 (CG)

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    See step  19

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (FORWARD RECOGNITION CAMERA - NO. 12 GLOBAL CAN JUNCTION CONNECTOR)

  13. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 12 GLOBAL CAN JUNCTION CONNECTOR - PARKING ASSIST ECU)
    1. Disconnect the R34 parking assist ECU connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      R89-1 (CANH) - K8-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      R89-5 (CANL) - K8-4 (CG)

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE PARKING ASSIST ECU

    Refer to REMOVAL [12/2022 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 12 GLOBAL CAN JUNCTION CONNECTOR - PARKING ASSIST ECU)

  14. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 15 GLOBAL CAN JUNCTION CONNECTOR - FORWARD RECOGNITION CAMERA)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      R108-3 (CANH) - K8-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      R108-14 (CANL) - K8-4 (CG)

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  18

    Result:

    OK

    See step  15

  15. CHECK VEHICLE TYPE
    1. Check vehicle type.

      Result

      Result Proceed to
      w/ Intuitive Parking Assist System A
      w/o Intuitive Parking Assist System B

    Result:

    B

    REPLACE NO. 15 GLOBAL CAN JUNCTION CONNECTOR

    Result:

    A

    See step  16

  16. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 15 GLOBAL CAN JUNCTION CONNECTOR - CLEARANCE WARNING ECU ASSEMBLY)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      R108-2 (CANH) - K8-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      R108-13 (CANL) - K8-4 (CG)

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE NO. 15 GLOBAL CAN JUNCTION CONNECTOR

    Result:

    NG

    See step  17

  17. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 15 GLOBAL CAN JUNCTION CONNECTOR - CLEARANCE WARNING ECU ASSEMBLY)
    1. Disconnect the R36 clearance warning ECU assembly connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      R108-2 (CANH) - K8-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      R108-13 (CANL) - K8-4 (CG)

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE CLEARANCE WARNING ECU ASSEMBLY

    Refer to REMOVAL [12/2022 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 15 GLOBAL CAN JUNCTION CONNECTOR - CLEARANCE WARNING ECU ASSEMBLY)

  18. CHECK FOR SHORT TO GND IN CAN BUS LINE (FORWARD RECOGNITION CAMERA - NO. 15 GLOBAL CAN JUNCTION CONNECTOR)
    1. Disconnect the U10 forward recognition camera connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      U10-10 (CA1P) - K8-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      U10-9 (CA1N) - K8-4 (CG)

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (FORWARD RECOGNITION CAMERA - NO. 15 GLOBAL CAN JUNCTION CONNECTOR)

    Result:

    OK

    See step  19

  19. CHECK FOR SHORT TO GND IN CAN BUS LINE (FORWARD RECOGNITION CAMERA - MILLIMETER WAVE RADAR SENSOR ASSEMBLY)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      U10-2 (CA2P) - K8-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      U10-1 (CA2L) - K8-4 (CG)

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE FORWARD RECOGNITION CAMERA

    Refer to REMOVAL [12/2022 - 03/2023] , or refer to REMOVAL [03/2023 - ]

    Result:

    NG

    See step  20

  20. CHECK FOR SHORT TO GND IN CAN BUS LINE (MILLIMETER WAVE RADAR SENSOR ASSEMBLY - FORWARD RECOGNITION CAMERA)
    1. Disconnect the A21 millimeter wave radar sensor assembly connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      A21-4 (CA2H) - K8-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      A21-3 (CA2L) - K8-4 (CG)

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (MILLIMETER WAVE RADAR SENSOR ASSEMBLY - FORWARD RECOGNITION CAMERA)

    Result:

    OK

    See step  21

  21. CHECK FOR SHORT TO GND IN CAN BUS LINE (MILLIMETER WAVE RADAR SENSOR ASSEMBLY - NO. 2 GLOBAL CAN JUNCTION CONNECTOR)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      A21-10 (CA3H) - K8-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      A21-9 (CA3L) - K8-4 (CG)

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE MILLIMETER WAVE RADAR SENSOR ASSEMBLY

    Refer to REMOVAL [12/2022 - 03/2023] , or refer to REMOVAL [03/2023 - ]

    Result:

    NG

    See step  22

  22. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 2 GLOBAL CAN JUNCTION CONNECTOR - MILLIMETER WAVE RADAR SENSOR ASSEMBLY)
    1. Disconnect the A65 No. 2 global CAN junction connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      A65-3 (CANH) - K8-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      A65-7 (CANL) - K8-4 (CG)

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 2 GLOBAL CAN JUNCTION CONNECTOR - MILLIMETER WAVE RADAR SENSOR ASSEMBLY)

    Result:

    OK

    See step  23

  23. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 2 GLOBAL CAN JUNCTION CONNECTOR - NO. 11 GLOBAL CAN JUNCTION CONNECTOR)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      A65-1 (CANH) - K8-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      A65-5 (CANL) - K8-4 (CG)

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  27

    Result:

    OK

    See step  24

  24. CHECK VEHICLE TYPE
    1. Check vehicle type.

      Result

      Result Proceed to
      w/ Front Side Radar Sensor System A
      w/o Front Side Radar Sensor System B

    Result:

    B

    REPLACE NO. 2 GLOBAL CAN JUNCTION CONNECTOR

    Result:

    A

    See step  25

  25. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 2 GLOBAL CAN JUNCTION CONNECTOR - FRONT SIDE RADAR SENSOR (A))
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      A65-2 (CANH) - K8-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      A65-6 (CANL) - K8-4 (CG)

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE NO. 2 GLOBAL CAN JUNCTION CONNECTOR

    Result:

    NG

    See step  26

  26. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 2 GLOBAL CAN JUNCTION CONNECTOR - FRONT SIDE RADAR SENSOR (A))
    1. Disconnect the A41 front side radar sensor (A) connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      A65-2 (CANH) - K8-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      A65-6 (CANL) - K8-4 (CG)

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE FRONT SIDE RADAR SENSOR (A)

    Refer to REMOVAL [12/2022 - 03/2023] , or refer to REMOVAL [03/2023 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 2 GLOBAL CAN JUNCTION CONNECTOR - FRONT SIDE RADAR SENSOR (A))

  27. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 11 GLOBAL CAN JUNCTION CONNECTOR - NO. 2 GLOBAL CAN JUNCTION CONNECTOR)
    1. Disconnect the R88 No. 11 global CAN junction connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      R88-1 (CANH) - K8-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      R88-5 (CANL) - K8-4 (CG)

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 11 GLOBAL CAN JUNCTION CONNECTOR - NO. 2 GLOBAL CAN JUNCTION CONNECTOR)

    Result:

    OK

    See step  28

  28. CHECK VEHICLE TYPE
    1. Check vehicle type.

      Result

      Result Proceed to
      w/ Parking Assist Monitor System A
      w/o Parking Assist Monitor System B

    Result:

    B

    See step  35

    Result:

    A

    See step  29

  29. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 11 GLOBAL CAN JUNCTION CONNECTOR - NO. 16 GLOBAL CAN JUNCTION CONNECTOR)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      R88-3 (CANH) - K8-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      R88-7 (CANL) - K8-4 (CG)

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    See step  36

    Result:

    NG

    See step  30

  30. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 16 GLOBAL CAN JUNCTION CONNECTOR - NO. 11 GLOBAL CAN JUNCTION CONNECTOR)
    1. Disconnect the W18 No. 16 global CAN junction connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      W18-6 (CANH) - K8-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      W18-17 (CANL) - K8-4 (CG)

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 16 GLOBAL CAN JUNCTION CONNECTOR - NO. 11 GLOBAL CAN JUNCTION CONNECTOR)

    Result:

    OK

    See step  31

  31. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 16 GLOBAL CAN JUNCTION CONNECTOR - NO. 2 CAN JUNCTION TERMINAL)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      W18-7 (CANH) - K8-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      W18-18 (CANL) - K8-4 (CG)

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  33

    Result:

    OK

    See step  32

  32. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 16 GLOBAL CAN JUNCTION CONNECTOR - REAR TELEVISION CAMERA ASSEMBLY)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      W18-5 (CANH) - K8-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      W18-16 (CANL) - K8-4 (CG)

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE NO. 16 GLOBAL CAN JUNCTION CONNECTOR

    Result:

    NG

    See step  34

  33. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 16 GLOBAL CAN JUNCTION CONNECTOR - NO. 2 CAN JUNCTION TERMINAL)
    1. Disconnect the R101 No. 2 CAN junction terminal connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      W18-7 (CANH) - K8-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      W18-18 (CANL) - K8-4 (CG)

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE NO. 2 CAN JUNCTION TERMINAL

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 16 GLOBAL CAN JUNCTION CONNECTOR - NO. 2 CAN JUNCTION TERMINAL)

  34. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 16 GLOBAL CAN JUNCTION CONNECTOR - REAR TELEVISION CAMERA ASSEMBLY)
    1. Disconnect the V2 or V3 rear television camera assembly connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      W18-5 (CANH) - K8-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      W18-16 (CANL) - K8-4 (CG)

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE REAR TELEVISION CAMERA ASSEMBLY

    Refer to REMOVAL [12/2022 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 16 GLOBAL CAN JUNCTION CONNECTOR - REAR TELEVISION CAMERA ASSEMBLY)

  35. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 11 GLOBAL CAN JUNCTION CONNECTOR - NO. 2 CAN JUNCTION TERMINAL)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      R88-4 (CANH) - K8-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      R88-8 (CANL) - K8-4 (CG)

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  37

    Result:

    OK

    See step  36

  36. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 11 GLOBAL CAN JUNCTION CONNECTOR - BLIND SPOT MONITOR SENSOR LH (B))
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      R88-2 (CANH) - K8-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      R88-6 (CANL) - K8-4 (CG)

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE NO. 11 GLOBAL CAN JUNCTION CONNECTOR

    Result:

    NG

    See step  38

  37. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 11 GLOBAL CAN JUNCTION CONNECTOR - NO. 2 CAN JUNCTION TERMINAL)
    1. Disconnect the R101 No. 2 CAN junction terminal connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      R88-4 (CANH) - K8-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      R88-8 (CANL) - K8-4 (CG)

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE NO. 2 CAN JUNCTION TERMINAL

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 11 GLOBAL CAN JUNCTION CONNECTOR - NO. 2 CAN JUNCTION TERMINAL)

  38. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 11 GLOBAL CAN JUNCTION CONNECTOR - BLIND SPOT MONITOR SENSOR LH (B))
    1. Disconnect the S6 blind spot monitor sensor LH (B) connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      R88-2 (CANH) - K8-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      R88-6 (CANL) - K8-4 (CG)

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE BLIND SPOT MONITOR SENSOR LH (B)

    Refer to REMOVAL [12/2022 - 03/2023] , or refer to REMOVAL [03/2023 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 11 GLOBAL CAN JUNCTION CONNECTOR - BLIND SPOT MONITOR SENSOR LH (B))

  39. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 15 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
    1. Disconnect the R108 No. 15 global CAN junction connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      R108-1 (CANH) - K8-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      R108-12 (CANL) - K8-16 (BAT)

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  42

    Result:

    OK

    See step  40

  40. CHECK VEHICLE TYPE
    1. Check vehicle type.

      Result

      Result Proceed to
      w/ Panoramic View Monitor System A
      w/o Panoramic View Monitor System B

    Result:

    B

    See step  48

    Result:

    A

    See step  41

  41. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 15 GLOBAL CAN JUNCTION CONNECTOR - NO. 12 GLOBAL CAN JUNCTION CONNECTOR)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      R108-4 (CANH) - K8-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      R108-15 (CANL) - K8-16 (BAT)

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    See step  49

    Result:

    NG

    See step  43

  42. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 15 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
    1. Disconnect the K78 central gateway ECU (network gateway ECU) connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      R108-1 (CANH) - K8-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      R108-12 (CANL) - K8-16 (BAT)

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)

    Refer to REMOVAL [12/2022 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 15 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))

  43. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 12 GLOBAL CAN JUNCTION CONNECTOR - NO. 15 GLOBAL CAN JUNCTION CONNECTOR)
    1. Disconnect the R89 No. 12 global CAN junction connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      R89-3 (CANH) - K8-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      R89-7 (CANL) - K8-16 (BAT)

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 12 GLOBAL CAN JUNCTION CONNECTOR - NO. 15 GLOBAL CAN JUNCTION CONNECTOR)

    Result:

    OK

    See step  44

  44. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 12 GLOBAL CAN JUNCTION CONNECTOR - FORWARD RECOGNITION CAMERA)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      R89-2 (CANH) - K8-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      R89-6 (CANL) - K8-16 (BAT)

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  46

    Result:

    OK

    See step  45

  45. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 12 GLOBAL CAN JUNCTION CONNECTOR - PARKING ASSIST ECU)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      R89-1 (CANH) - K8-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      R89-5 (CANL) - K8-16 (BAT)

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE NO. 12 GLOBAL CAN JUNCTION CONNECTOR

    Result:

    NG

    See step  47

  46. CHECK FOR SHORT TO +B IN CAN BUS LINE (FORWARD RECOGNITION CAMERA - NO. 12 GLOBAL CAN JUNCTION CONNECTOR)
    1. Disconnect the U10 forward recognition camera connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      U10-10 (CA1P) - K8-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      U10-9 (CA1N) - K8-16 (BAT)

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    See step  53

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (FORWARD RECOGNITION CAMERA - NO. 12 GLOBAL CAN JUNCTION CONNECTOR)

  47. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 12 GLOBAL CAN JUNCTION CONNECTOR - PARKING ASSIST ECU)
    1. Disconnect the R34 parking assist ECU connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      R89-1 (CANH) - K8-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      R89-5 (CANL) - K8-16 (BAT)

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE PARKING ASSIST ECU

    Refer to REMOVAL [12/2022 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 12 GLOBAL CAN JUNCTION CONNECTOR - PARKING ASSIST ECU)

  48. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 15 GLOBAL CAN JUNCTION CONNECTOR - FORWARD RECOGNITION CAMERA)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      R108-3 (CANH) - K8-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      R108-14 (CANL) - K8-16 (BAT)

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  52

    Result:

    OK

    See step  49

  49. CHECK VEHICLE TYPE
    1. Check vehicle type.

      Result

      Result Proceed to
      w/ Intuitive Parking Assist System A
      w/o Intuitive Parking Assist System B

    Result:

    B

    REPLACE NO. 15 GLOBAL CAN JUNCTION CONNECTOR

    Result:

    A

    See step  50

  50. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 15 GLOBAL CAN JUNCTION CONNECTOR - CLEARANCE WARNING ECU ASSEMBLY)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      R108-2 (CANH) - K8-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      R108-13 (CANL) - K8-16 (BAT)

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE NO. 15 GLOBAL CAN JUNCTION CONNECTOR

    Result:

    NG

    See step  51

  51. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 15 GLOBAL CAN JUNCTION CONNECTOR - CLEARANCE WARNING ECU ASSEMBLY)
    1. Disconnect the R36 clearance warning ECU assembly connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      R108-2 (CANH) - K8-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      R108-13 (CANL) - K8-16 (BAT)

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE CLEARANCE WARNING ECU ASSEMBLY

    Refer to REMOVAL [12/2022 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 15 GLOBAL CAN JUNCTION CONNECTOR - CLEARANCE WARNING ECU ASSEMBLY)

  52. CHECK FOR SHORT TO +B IN CAN BUS LINE (FORWARD RECOGNITION CAMERA - NO. 15 GLOBAL CAN JUNCTION CONNECTOR)
    1. Disconnect the U10 forward recognition camera connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      U10-10 (CA1P) - K8-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      U10-9 (CA1N) - K8-16 (BAT)

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (FORWARD RECOGNITION CAMERA - NO. 15 GLOBAL CAN JUNCTION CONNECTOR)

    Result:

    OK

    See step  53

  53. CHECK FOR SHORT TO +B IN CAN BUS LINE (FORWARD RECOGNITION CAMERA - MILLIMETER WAVE RADAR SENSOR ASSEMBLY)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      U10-2 (CA2P) - K8-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      U10-1 (CA2L) - K8-16 (BAT)

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE FORWARD RECOGNITION CAMERA

    Refer to REMOVAL [12/2022 - 03/2023] , or refer to REMOVAL [03/2023 - ]

    Result:

    NG

    See step  54

  54. CHECK FOR SHORT TO +B IN CAN BUS LINE (MILLIMETER WAVE RADAR SENSOR ASSEMBLY - FORWARD RECOGNITION CAMERA)
    1. Disconnect the A21 millimeter wave radar sensor assembly connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      A21-4 (CA2H) - K8-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      A21-3 (CA2L) - K8-16 (BAT)

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (MILLIMETER WAVE RADAR SENSOR ASSEMBLY - FORWARD RECOGNITION CAMERA)

    Result:

    OK

    See step  55

  55. CHECK FOR SHORT TO +B IN CAN BUS LINE (MILLIMETER WAVE RADAR SENSOR ASSEMBLY - NO. 2 GLOBAL CAN JUNCTION CONNECTOR)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      A21-10 (CA3H) - K8-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      A21-9 (CA3L) - K8-16 (BAT)

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE MILLIMETER WAVE RADAR SENSOR ASSEMBLY

    Refer to REMOVAL [12/2022 - 03/2023] , or refer to REMOVAL [03/2023 - ]

    Result:

    NG

    See step  56

  56. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 2 GLOBAL CAN JUNCTION CONNECTOR - MILLIMETER WAVE RADAR SENSOR ASSEMBLY)
    1. Disconnect the A65 No. 2 global CAN junction connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      A65-3 (CANH) - K8-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      A65-7 (CANL) - K8-16 (BAT)

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 2 GLOBAL CAN JUNCTION CONNECTOR - MILLIMETER WAVE RADAR SENSOR ASSEMBLY)

    Result:

    OK

    See step  57

  57. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 2 GLOBAL CAN JUNCTION CONNECTOR - NO. 11 GLOBAL CAN JUNCTION CONNECTOR)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      A65-1 (CANH) - K8-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      A65-5 (CANL) - K8-16 (BAT)

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  61

    Result:

    OK

    See step  58

  58. CHECK VEHICLE TYPE
    1. Check vehicle type.

      Result

      Result Proceed to
      w/ Front Side Radar Sensor System A
      w/o Front Side Radar Sensor System B

    Result:

    B

    REPLACE NO. 2 GLOBAL CAN JUNCTION CONNECTOR

    Result:

    A

    See step  59

  59. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 2 GLOBAL CAN JUNCTION CONNECTOR - FRONT SIDE RADAR SENSOR (A))
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      A65-2 (CANH) - K8-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      A65-6 (CANL) - K8-16 (BAT)

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE NO. 2 GLOBAL CAN JUNCTION CONNECTOR

    Result:

    NG

    See step  60

  60. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 2 GLOBAL CAN JUNCTION CONNECTOR - FRONT SIDE RADAR SENSOR (A))
    1. Disconnect the A41 front side radar sensor (A) connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      A65-2 (CANH) - K8-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      A65-6 (CANL) - K8-16 (BAT)

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE FRONT SIDE RADAR SENSOR (A)

    Refer to REMOVAL [12/2022 - 03/2023] , or refer to REMOVAL [03/2023 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 2 GLOBAL CAN JUNCTION CONNECTOR - FRONT SIDE RADAR SENSOR (A))

  61. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 11 GLOBAL CAN JUNCTION CONNECTOR - NO. 2 GLOBAL CAN JUNCTION CONNECTOR)
    1. Disconnect the R88 No. 11 global CAN junction connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      R88-1 (CANH) - K8-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      R88-5 (CANL) - K8-16 (BAT)

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 11 GLOBAL CAN JUNCTION CONNECTOR - NO. 2 GLOBAL CAN JUNCTION CONNECTOR)

    Result:

    OK

    See step  62

  62. CHECK VEHICLE TYPE
    1. Check vehicle type.

      Result

      Result Proceed to
      w/ Parking Assist Monitor System A
      w/o Parking Assist Monitor System B

    Result:

    B

    See step  69

    Result:

    A

    See step  63

  63. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 11 GLOBAL CAN JUNCTION CONNECTOR - NO. 16 GLOBAL CAN JUNCTION CONNECTOR)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      R88-3 (CANH) - K8-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      R88-7 (CANL) - K8-16 (BAT)

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    See step  70

    Result:

    NG

    See step  64

  64. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 16 GLOBAL CAN JUNCTION CONNECTOR - NO. 11 GLOBAL CAN JUNCTION CONNECTOR)
    1. Disconnect the W18 No. 16 global CAN junction connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      W18-6 (CANH) - K8-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      W18-17 (CANL) - K8-16 (BAT)

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 16 GLOBAL CAN JUNCTION CONNECTOR - NO. 11 GLOBAL CAN JUNCTION CONNECTOR)

    Result:

    OK

    See step  65

  65. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 16 GLOBAL CAN JUNCTION CONNECTOR - NO. 2 CAN JUNCTION TERMINAL)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      W18-7 (CANH) - K8-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      W18-18 (CANL) - K8-16 (BAT)

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  67

    Result:

    OK

    See step  66

  66. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 16 GLOBAL CAN JUNCTION CONNECTOR - REAR TELEVISION CAMERA ASSEMBLY)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      W18-5 (CANH) - K8-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      W18-16 (CANL) - K8-16 (BAT)

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE NO. 16 GLOBAL CAN JUNCTION CONNECTOR

    Result:

    NG

    See step  68

  67. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 16 GLOBAL CAN JUNCTION CONNECTOR - NO. 2 CAN JUNCTION TERMINAL)
    1. Disconnect the R101 No. 2 CAN junction terminal connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      W18-7 (CANH) - K8-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      W18-18 (CANL) - K8-16 (BAT)

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE NO. 2 CAN JUNCTION TERMINAL

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 16 GLOBAL CAN JUNCTION CONNECTOR - NO. 2 CAN JUNCTION TERMINAL)

  68. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 16 GLOBAL CAN JUNCTION CONNECTOR - REAR TELEVISION CAMERA ASSEMBLY)
    1. Disconnect the V2 or V3 rear television camera assembly connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      W18-5 (CANH) - K8-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      W18-16 (CANL) - K8-16 (BAT)

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE REAR TELEVISION CAMERA ASSEMBLY

    Refer to REMOVAL [12/2022 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 16 GLOBAL CAN JUNCTION CONNECTOR - REAR TELEVISION CAMERA ASSEMBLY)

  69. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 11 GLOBAL CAN JUNCTION CONNECTOR - NO. 2 CAN JUNCTION TERMINAL)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      R88-4 (CANH) - K8-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      R88-8 (CANL) - K8-16 (BAT)

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  71

    Result:

    OK

    See step  70

  70. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 11 GLOBAL CAN JUNCTION CONNECTOR - BLIND SPOT MONITOR SENSOR LH (B))
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      R88-2 (CANH) - K8-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      R88-6 (CANL) - K8-16 (BAT)

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE NO. 11 GLOBAL CAN JUNCTION CONNECTOR

    Result:

    NG

    See step  72

  71. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 11 GLOBAL CAN JUNCTION CONNECTOR - NO. 2 CAN JUNCTION TERMINAL)
    1. Disconnect the R101 No. 2 CAN junction terminal connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      R88-4 (CANH) - K8-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      R88-8 (CANL) - K8-16 (BAT)

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE NO. 2 CAN JUNCTION TERMINAL

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 11 GLOBAL CAN JUNCTION CONNECTOR - NO. 2 CAN JUNCTION TERMINAL)

  72. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 11 GLOBAL CAN JUNCTION CONNECTOR - BLIND SPOT MONITOR SENSOR LH (B))
    1. Disconnect the S6 blind spot monitor sensor LH (B) connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      R88-2 (CANH) - K8-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      R88-6 (CANL) - K8-16 (BAT)

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE BLIND SPOT MONITOR SENSOR LH (B)

    Refer to REMOVAL [12/2022 - 03/2023] , or refer to REMOVAL [03/2023 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 11 GLOBAL CAN JUNCTION CONNECTOR - BLIND SPOT MONITOR SENSOR LH (B))

  73. CHECK FOR SHORT IN CAN BUS LINES (NO. 15 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
    1. Disconnect the R108 No. 15 global CAN junction connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      R108-1 (CANH) - R108-12 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  76

    Result:

    OK

    See step  74

  74. CHECK VEHICLE TYPE
    1. Check vehicle type.

      Result

      Result Proceed to
      w/ Panoramic View Monitor System A
      w/o Panoramic View Monitor System B

    Result:

    B

    See step  82

    Result:

    A

    See step  75

  75. CHECK FOR SHORT IN CAN BUS LINES (NO. 15 GLOBAL CAN JUNCTION CONNECTOR - NO. 12 GLOBAL CAN JUNCTION CONNECTOR)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      R108-4 (CANH) - R108-15 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    See step  83

    Result:

    NG

    See step  77

  76. CHECK FOR SHORT IN CAN BUS LINES (NO. 15 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
    1. Disconnect the K78 central gateway ECU (network gateway ECU) connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      R108-1 (CANH) - R108-12 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 1 MΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)

    Refer to REMOVAL [12/2022 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 15 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))

  77. CHECK FOR SHORT IN CAN BUS LINES (NO. 12 GLOBAL CAN JUNCTION CONNECTOR - NO. 15 GLOBAL CAN JUNCTION CONNECTOR)
    1. Reconnect the R108 No. 15 global CAN junction connector.
    2. Disconnect the R89 No. 12 global CAN junction connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      R89-3 (CANH) - R89-7 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 12 GLOBAL CAN JUNCTION CONNECTOR - NO. 15 GLOBAL CAN JUNCTION CONNECTOR)

    Result:

    OK

    See step  78

  78. CHECK FOR SHORT IN CAN BUS LINES (NO. 12 GLOBAL CAN JUNCTION CONNECTOR - FORWARD RECOGNITION CAMERA)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      R89-2 (CANH) - R89-6 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  80

    Result:

    OK

    See step  79

  79. CHECK FOR SHORT IN CAN BUS LINES (NO. 12 GLOBAL CAN JUNCTION CONNECTOR - PARKING ASSIST ECU)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      R89-1 (CANH) - R89-5 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE NO. 12 GLOBAL CAN JUNCTION CONNECTOR

    Result:

    NG

    See step  81

  80. CHECK FOR SHORT IN CAN BUS LINES (FORWARD RECOGNITION CAMERA - NO. 12 GLOBAL CAN JUNCTION CONNECTOR)
    1. Reconnect the R89 No. 12 global CAN junction connector.
    2. Disconnect the U10 forward recognition camera connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      U10-10 (CA1P) - U10-9 (CA1N) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    See step  87

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (FORWARD RECOGNITION CAMERA - NO. 12 GLOBAL CAN JUNCTION CONNECTOR)

  81. CHECK FOR SHORT IN CAN BUS LINES (NO. 12 GLOBAL CAN JUNCTION CONNECTOR - PARKING ASSIST ECU)
    1. Disconnect the R34 parking assist ECU connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      R89-1 (CANH) - R89-5 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 1 MΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE PARKING ASSIST ECU

    Refer to REMOVAL [12/2022 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN BRANCH LINES OR CONNECTOR (NO. 12 GLOBAL CAN JUNCTION CONNECTOR - PARKING ASSIST ECU)

  82. CHECK FOR SHORT IN CAN BUS LINES (NO. 15 GLOBAL CAN JUNCTION CONNECTOR - FORWARD RECOGNITION CAMERA)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      R108-3 (CANH) - R108-14 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  86

    Result:

    OK

    See step  83

  83. CHECK VEHICLE TYPE
    1. Check vehicle type.

      Result

      Result Proceed to
      w/ Intuitive Parking Assist System A
      w/o Intuitive Parking Assist System B

    Result:

    B

    REPLACE NO. 15 GLOBAL CAN JUNCTION CONNECTOR

    Result:

    A

    See step  84

  84. CHECK FOR SHORT IN CAN BUS LINES (NO. 15 GLOBAL CAN JUNCTION CONNECTOR - CLEARANCE WARNING ECU ASSEMBLY)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      R108-2 (CANH) - R108-13 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE NO. 15 GLOBAL CAN JUNCTION CONNECTOR

    Result:

    NG

    See step  85

  85. CHECK FOR SHORT IN CAN BUS LINES (NO. 15 GLOBAL CAN JUNCTION CONNECTOR - CLEARANCE WARNING ECU ASSEMBLY)
    1. Disconnect the R36 clearance warning ECU assembly connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      R108-2 (CANH) - R108-13 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 1 MΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE CLEARANCE WARNING ECU ASSEMBLY

    Refer to REMOVAL [12/2022 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN BRANCH LINES OR CONNECTOR (NO. 15 GLOBAL CAN JUNCTION CONNECTOR - CLEARANCE WARNING ECU ASSEMBLY)

  86. CHECK FOR SHORT IN CAN BUS LINES (FORWARD RECOGNITION CAMERA - NO. 15 GLOBAL CAN JUNCTION CONNECTOR)
    1. Reconnect the R108 No. 15 global CAN junction connector.
    2. Disconnect the U10 forward recognition camera connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      U10-10 (CA1P) - U10-9 (CA1N) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (FORWARD RECOGNITION CAMERA - NO. 15 GLOBAL CAN JUNCTION CONNECTOR)

    Result:

    OK

    See step  87

  87. CHECK FOR SHORT IN CAN BUS LINES (FORWARD RECOGNITION CAMERA - MILLIMETER WAVE RADAR SENSOR ASSEMBLY)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      U10-2 (CA2P) - U10-1 (CA2L) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE FORWARD RECOGNITION CAMERA

    Refer to REMOVAL [12/2022 - 03/2023] , or refer to REMOVAL [03/2023 - ]

    Result:

    NG

    See step  88

  88. CHECK FOR SHORT IN CAN BUS LINES (MILLIMETER WAVE RADAR SENSOR ASSEMBLY - FORWARD RECOGNITION CAMERA)
    1. Reconnect the U10 forward recognition camera connector.
    2. Disconnect the A21 millimeter wave radar sensor assembly connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      A21-4 (CA2H) - A21-3 (CA2L) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (MILLIMETER WAVE RADAR SENSOR ASSEMBLY - FORWARD RECOGNITION CAMERA)

    Result:

    OK

    See step  89

  89. CHECK FOR SHORT IN CAN BUS LINES (MILLIMETER WAVE RADAR SENSOR ASSEMBLY - NO. 2 GLOBAL CAN JUNCTION CONNECTOR)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      A21-10 (CA3H) - A21-9 (CA3L) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE MILLIMETER WAVE RADAR SENSOR ASSEMBLY

    Refer to REMOVAL [12/2022 - 03/2023] , or refer to REMOVAL [03/2023 - ]

    Result:

    NG

    See step  90

  90. CHECK FOR SHORT IN CAN BUS LINES (NO. 2 GLOBAL CAN JUNCTION CONNECTOR - MILLIMETER WAVE RADAR SENSOR ASSEMBLY)
    1. Reconnect the A21 millimeter wave radar sensor assembly connector.
    2. Disconnect the A65 No. 2 global CAN junction connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      A65-3 (CANH) - A65-7 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 2 GLOBAL CAN JUNCTION CONNECTOR - MILLIMETER WAVE RADAR SENSOR ASSEMBLY)

    Result:

    OK

    See step  91

  91. CHECK FOR SHORT IN CAN BUS LINES (NO. 2 GLOBAL CAN JUNCTION CONNECTOR - NO. 11 GLOBAL CAN JUNCTION CONNECTOR)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      A65-1 (CANH) - A65-5 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  95

    Result:

    OK

    See step  92

  92. CHECK VEHICLE TYPE
    1. Check vehicle type.

      Result

      Result Proceed to
      w/ Front Side Radar Sensor System A
      w/o Front Side Radar Sensor System B

    Result:

    B

    REPLACE NO. 2 GLOBAL CAN JUNCTION CONNECTOR

    Result:

    A

    See step  93

  93. CHECK FOR SHORT IN CAN BUS LINES (NO. 2 GLOBAL CAN JUNCTION CONNECTOR - FRONT SIDE RADAR SENSOR (A))
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      A65-2 (CANH) - A65-6 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE NO. 2 GLOBAL CAN JUNCTION CONNECTOR

    Result:

    NG

    See step  94

  94. CHECK FOR SHORT IN CAN BUS LINES (NO. 2 GLOBAL CAN JUNCTION CONNECTOR - FRONT SIDE RADAR SENSOR (A))
    1. Disconnect the A41 front side radar sensor (A) connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      A65-2 (CANH) - A65-6 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 1 MΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE FRONT SIDE RADAR SENSOR (A)

    Refer to REMOVAL [12/2022 - 03/2023] , or refer to REMOVAL [03/2023 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN BRANCH LINES OR CONNECTOR (NO. 2 GLOBAL CAN JUNCTION CONNECTOR - FRONT SIDE RADAR SENSOR (A))

  95. CHECK FOR SHORT IN CAN BUS LINES (NO. 11 GLOBAL CAN JUNCTION CONNECTOR - NO. 2 GLOBAL CAN JUNCTION CONNECTOR)
    1. Reconnect the A65 No. 2 global CAN junction connector.
    2. Disconnect the R88 No. 11 global CAN junction connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      R88-1 (CANH) - R88-5 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 11 GLOBAL CAN JUNCTION CONNECTOR - NO. 2 GLOBAL CAN JUNCTION CONNECTOR)

    Result:

    OK

    See step  96

  96. CHECK VEHICLE TYPE
    1. Check vehicle type.

      Result

      Result Proceed to
      w/ Parking Assist Monitor System A
      w/o Parking Assist Monitor System B

    Result:

    B

    See step  103

    Result:

    A

    See step  97

  97. CHECK FOR SHORT IN CAN BUS LINES (NO. 11 GLOBAL CAN JUNCTION CONNECTOR - NO. 16 GLOBAL CAN JUNCTION CONNECTOR)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      R88-3 (CANH) - R88-7 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    See step  104

    Result:

    NG

    See step  98

  98. CHECK FOR SHORT IN CAN BUS LINES (NO. 16 GLOBAL CAN JUNCTION CONNECTOR - NO. 11 GLOBAL CAN JUNCTION CONNECTOR)
    1. Reconnect the R88 No. 11 global CAN junction connector.
    2. Disconnect the W18 No. 16 global CAN junction connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      W18-6 (CANH) - W18-17 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 16 GLOBAL CAN JUNCTION CONNECTOR - NO. 11 GLOBAL CAN JUNCTION CONNECTOR)

    Result:

    OK

    See step  99

  99. CHECK FOR SHORT IN CAN BUS LINES (NO. 16 GLOBAL CAN JUNCTION CONNECTOR - NO. 2 CAN JUNCTION TERMINAL)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      W18-7 (CANH) - W18-18 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  101

    Result:

    OK

    See step  100

  100. CHECK FOR SHORT IN CAN BUS LINES (NO. 16 GLOBAL CAN JUNCTION CONNECTOR - REAR TELEVISION CAMERA ASSEMBLY)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      W18-5 (CANH) - W18-16 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE NO. 16 GLOBAL CAN JUNCTION CONNECTOR

    Result:

    NG

    See step  102

  101. CHECK FOR SHORT IN CAN BUS LINES (NO. 16 GLOBAL CAN JUNCTION CONNECTOR - NO. 2 CAN JUNCTION TERMINAL)
    1. Disconnect the R101 No. 2 CAN junction terminal connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      W18-7 (CANH) - W18-18 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 1 MΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE NO. 2 CAN JUNCTION TERMINAL

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 16 GLOBAL CAN JUNCTION CONNECTOR - NO. 2 CAN JUNCTION TERMINAL)

  102. CHECK FOR SHORT IN CAN BUS LINES (NO. 16 GLOBAL CAN JUNCTION CONNECTOR - REAR TELEVISION CAMERA ASSEMBLY)
    1. Disconnect the V2 or V3 rear television camera assembly connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      W18-5 (CANH) - W18-16 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 1 MΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE REAR TELEVISION CAMERA ASSEMBLY

    Refer to REMOVAL [12/2022 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN BRANCH LINES OR CONNECTOR (NO. 16 GLOBAL CAN JUNCTION CONNECTOR - REAR TELEVISION CAMERA ASSEMBLY)

  103. CHECK FOR SHORT IN CAN BUS LINES (NO. 11 GLOBAL CAN JUNCTION CONNECTOR - NO. 2 CAN JUNCTION TERMINAL)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      R88-4 (CANH) - R88-8 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  105

    Result:

    OK

    See step  104

  104. CHECK FOR SHORT IN CAN BUS LINES (NO. 11 GLOBAL CAN JUNCTION CONNECTOR - BLIND SPOT MONITOR SENSOR LH (B))
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      R88-2 (CANH) - R88-6 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE NO. 11 GLOBAL CAN JUNCTION CONNECTOR

    Result:

    NG

    See step  106

  105. CHECK FOR SHORT IN CAN BUS LINES (NO. 11 GLOBAL CAN JUNCTION CONNECTOR - NO. 2 CAN JUNCTION TERMINAL)
    1. Disconnect the R101 No. 2 CAN junction terminal connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      R88-4 (CANH) - R88-8 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 1 MΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE NO. 2 CAN JUNCTION TERMINAL

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 11 GLOBAL CAN JUNCTION CONNECTOR - NO. 2 CAN JUNCTION TERMINAL)

  106. CHECK FOR SHORT IN CAN BUS LINES (NO. 11 GLOBAL CAN JUNCTION CONNECTOR - BLIND SPOT MONITOR SENSOR LH (B))
    1. Disconnect the S6 blind spot monitor sensor LH (B) connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      R88-2 (CANH) - R88-6 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 1 MΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE BLIND SPOT MONITOR SENSOR LH (B)

    Refer to REMOVAL [12/2022 - 03/2023] , or refer to REMOVAL [03/2023 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN BRANCH LINES OR CONNECTOR (NO. 11 GLOBAL CAN JUNCTION CONNECTOR - BLIND SPOT MONITOR SENSOR LH (B))

  107. CHECK FOR OPEN IN CAN MAIN BUS LINES (CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
    1. Disconnect the K78 central gateway ECU (network gateway ECU) connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      K78-28 (CA1H) - K78-27 (CA1L) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)

    Refer to REMOVAL [12/2022 - ]

    Result:

    NG

    See step  108

  108. CHECK FOR OPEN IN CAN MAIN BUS LINES (NO. 15 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
    1. Reconnect the K78 central gateway ECU (network gateway ECU) connector.
    2. Disconnect the R108 No. 15 global CAN junction connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      R108-1 (CANH) - R108-12 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 15 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))

    Result:

    OK

    See step  109

  109. CHECK VEHICLE TYPE
    1. Check vehicle type.

      Result

      Result Proceed to
      w/ Panoramic View Monitor System A
      w/o Panoramic View Monitor System B

    Result:

    B

    See step  114

    Result:

    A

    See step  110

  110. CHECK FOR OPEN IN CAN MAIN BUS LINES (NO. 15 GLOBAL CAN JUNCTION CONNECTOR - NO. 12 GLOBAL CAN JUNCTION CONNECTOR)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      R108-4 (CANH) - R108-15 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE NO. 15 GLOBAL CAN JUNCTION CONNECTOR

    Result:

    NG

    See step  111

  111. CHECK FOR OPEN IN CAN MAIN BUS LINES (NO. 12 GLOBAL CAN JUNCTION CONNECTOR - NO. 15 GLOBAL CAN JUNCTION CONNECTOR)
    1. Reconnect the R108 No. 15 global CAN junction connector.
    2. Disconnect the R89 No. 12 global CAN junction connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      R89-3 (CANH) - R89-7 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 12 GLOBAL CAN JUNCTION CONNECTOR - NO. 15 GLOBAL CAN JUNCTION CONNECTOR)

    Result:

    OK

    See step  112

  112. CHECK FOR OPEN IN CAN MAIN BUS LINES (NO. 12 GLOBAL CAN JUNCTION CONNECTOR - FORWARD RECOGNITION CAMERA)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      R89-2 (CANH) - R89-6 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE NO. 12 GLOBAL CAN JUNCTION CONNECTOR

    Result:

    NG

    See step  113

  113. CHECK FOR OPEN IN CAN MAIN BUS LINES (FORWARD RECOGNITION CAMERA - NO. 12 GLOBAL CAN JUNCTION CONNECTOR)
    1. Reconnect the R89 No. 12 global CAN junction connector.
    2. Disconnect the U10 forward recognition camera connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      U10-10 (CA1P) - U10-9 (CA1N) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    See step  116

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (FORWARD RECOGNITION CAMERA - NO. 12 GLOBAL CAN JUNCTION CONNECTOR)

  114. CHECK FOR OPEN IN CAN MAIN BUS LINES (NO. 15 GLOBAL CAN JUNCTION CONNECTOR - FORWARD RECOGNITION CAMERA)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      R108-3 (CANH) - R108-14 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE NO. 15 GLOBAL CAN JUNCTION CONNECTOR

    Result:

    NG

    See step  115

  115. CHECK FOR OPEN IN CAN MAIN BUS LINES (FORWARD RECOGNITION CAMERA - NO. 15 GLOBAL CAN JUNCTION CONNECTOR)
    1. Reconnect the R108 No. 15 global CAN junction connector.
    2. Disconnect the U10 forward recognition camera connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      U10-10 (CA1P) - U10-9 (CA1N) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (FORWARD RECOGNITION CAMERA - NO. 15 GLOBAL CAN JUNCTION CONNECTOR)

    Result:

    OK

    See step  116

  116. CHECK FOR OPEN IN CAN MAIN BUS LINES (FORWARD RECOGNITION CAMERA - MILLIMETER WAVE RADAR SENSOR ASSEMBLY)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      U10-2 (CA2P) - U10-1 (CA2L) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE FORWARD RECOGNITION CAMERA

    Refer to REMOVAL [12/2022 - 03/2023] , or refer to REMOVAL [03/2023 - ]

    Result:

    NG

    See step  117

  117. CHECK FOR OPEN IN CAN MAIN BUS LINES (MILLIMETER WAVE RADAR SENSOR ASSEMBLY - FORWARD RECOGNITION CAMERA)
    1. Reconnect the U10 forward recognition camera connector.
    2. Disconnect the A21 millimeter wave radar sensor assembly connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      A21-4 (CA2H) - A21-3 (CA2L) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (MILLIMETER WAVE RADAR SENSOR ASSEMBLY - FORWARD RECOGNITION CAMERA)

    Result:

    OK

    See step  118

  118. CHECK FOR OPEN IN CAN MAIN BUS LINES (MILLIMETER WAVE RADAR SENSOR ASSEMBLY - NO. 2 GLOBAL CAN JUNCTION CONNECTOR)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      A21-10 (CA3H) - A21-9 (CA3L) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE MILLIMETER WAVE RADAR SENSOR ASSEMBLY

    Refer to REMOVAL [12/2022 - 03/2023] , or refer to REMOVAL [03/2023 - ]

    Result:

    NG

    See step  119

  119. CHECK FOR OPEN IN CAN MAIN BUS LINES (NO. 2 GLOBAL CAN JUNCTION CONNECTOR - MILLIMETER WAVE RADAR SENSOR ASSEMBLY)
    1. Reconnect the A21 millimeter wave radar sensor assembly connector.
    2. Disconnect the A65 No. 2 global CAN junction connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      A65-3 (CANH) - A65-7 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 2 GLOBAL CAN JUNCTION CONNECTOR - MILLIMETER WAVE RADAR SENSOR ASSEMBLY)

    Result:

    OK

    See step  120

  120. CHECK FOR OPEN IN CAN MAIN BUS LINES (NO. 2 GLOBAL CAN JUNCTION CONNECTOR - NO. 11 GLOBAL CAN JUNCTION CONNECTOR)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      A65-1 (CANH) - A65-5 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE NO. 2 GLOBAL CAN JUNCTION CONNECTOR

    Result:

    NG

    See step  121

  121. CHECK FOR OPEN IN CAN MAIN BUS LINES (NO. 11 GLOBAL CAN JUNCTION CONNECTOR - NO. 2 GLOBAL CAN JUNCTION CONNECTOR)
    1. Reconnect the A65 No. 2 global CAN junction connector.
    2. Disconnect the R88 No. 11 global CAN junction connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      R88-1 (CANH) - R88-5 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 11 GLOBAL CAN JUNCTION CONNECTOR - NO. 2 GLOBAL CAN JUNCTION CONNECTOR)

    Result:

    OK

    See step  122

  122. CHECK VEHICLE TYPE
    1. Check vehicle type.

      Result

      Result Proceed to
      w/ Parking Assist Monitor System A
      w/o Parking Assist Monitor System B

    Result:

    B

    See step  127

    Result:

    A

    See step  123

  123. CHECK FOR OPEN IN CAN MAIN BUS LINES (NO. 11 GLOBAL CAN JUNCTION CONNECTOR - NO. 16 GLOBAL CAN JUNCTION CONNECTOR)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      R88-3 (CANH) - R88-7 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE NO. 11 GLOBAL CAN JUNCTION CONNECTOR

    Result:

    NG

    See step  124

  124. CHECK FOR OPEN IN CAN MAIN BUS LINES (NO. 16 GLOBAL CAN JUNCTION CONNECTOR - NO. 11 GLOBAL CAN JUNCTION CONNECTOR)
    1. Reconnect the R88 No. 11 global CAN junction connector.
    2. Disconnect the W18 No. 16 global CAN junction connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      W18-6 (CANH) - W18-17 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 16 GLOBAL CAN JUNCTION CONNECTOR - NO. 11 GLOBAL CAN JUNCTION CONNECTOR)

    Result:

    OK

    See step  125

  125. CHECK FOR OPEN IN CAN MAIN BUS LINES (NO. 16 GLOBAL CAN JUNCTION CONNECTOR - NO. 2 CAN JUNCTION TERMINAL)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      W18-7 (CANH) - W18-18 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE NO. 16 GLOBAL CAN JUNCTION CONNECTOR

    Result:

    NG

    See step  126

  126. CHECK FOR OPEN IN CAN MAIN BUS LINES (NO. 2 CAN JUNCTION TERMINAL)
    1. Reconnect the W18 No. 16 global CAN junction connector.
    2. Disconnect the R101 No. 2 CAN junction terminal connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      R101-3 (CANH) - R101-2 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE NO. 2 CAN JUNCTION TERMINAL

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 2 CAN JUNCTION TERMINAL - NO. 16 GLOBAL CAN JUNCTION CONNECTOR)

  127. CHECK FOR OPEN IN CAN MAIN BUS LINES (NO. 11 GLOBAL CAN JUNCTION CONNECTOR - NO. 2 CAN JUNCTION TERMINAL)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      R88-4 (CANH) - R88-8 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE NO. 11 GLOBAL CAN JUNCTION CONNECTOR

    Result:

    NG

    See step  128

  128. CHECK FOR OPEN IN CAN MAIN BUS LINES (NO. 2 CAN JUNCTION TERMINAL)
    1. Reconnect the R88 No. 11 global CAN junction connector.
    2. Disconnect the R101 No. 2 CAN junction terminal connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      R101-3 (CANH) - R101-2 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE NO. 2 CAN JUNCTION TERMINAL

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 2 CAN JUNCTION TERMINAL - NO. 11 GLOBAL CAN JUNCTION CONNECTOR)

scientia non olet · About LEMON Manuals
