Drive Start Control [12/2022 - ]: Procedure
- PAST ACTIVATION CONFIRMATION
- Check if the customer operated the vehicle in a way that would cause the drive start control to operate.

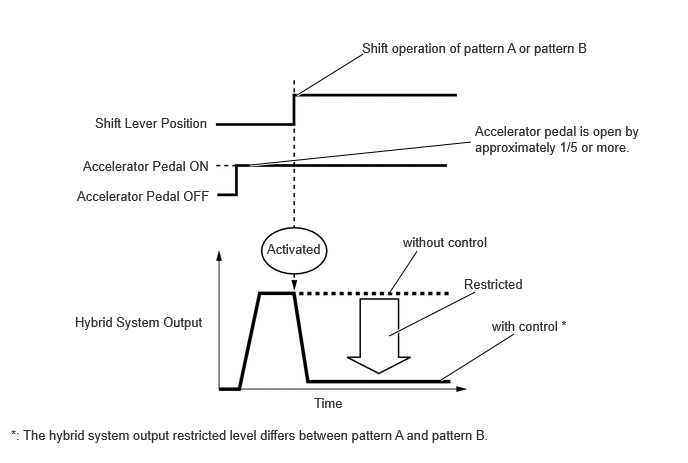

Activation conditions
- Pattern A (When all of the following conditions are met, control starts.)
- The accelerator pedal is open by approximately 1/5 or more.
- The shift lever is moved from P to any forward position D (Including other forward shift positions) or R.
- Pattern B (When all of the following conditions are met, control starts.)
- The accelerator pedal is open by approximately 1/5 or more.
- The shift lever is moved from R to any forward position D (Including other forward shift positions), any forward position D (Including other forward shift positions) to R, or N to R.
HINT:
Depending on the situation, the shift position may not be changed.
Items Controlled
- Hybrid system output is restricted.
Deactivation Conditions
- The accelerator pedal is released.
- The shift lever is in P or N.
HINT:
- The hybrid system output restricted level differs between Pattern A and Pattern B.
- During sudden start restraint control, hybrid system output is adjusted based on the road gradient.
- Drive start control is not activated when TRC is turned off.
- Control will also not operate under the following conditions. (if equipped)
- When TRAIL mode is on
- When multi-terrain select is selected
- Control will also not operate under the following conditions. (if equipped)
Result
Result Proceed to Not performed A Performed B - Pattern A (When all of the following conditions are met, control starts.)
Result:
B
SYSTEM NORMAL (GO TO PROBLEM SYMPTOM TABLE)
Refer to PROBLEM SYMPTOMS TABLE [12/2022 - ]
Result:
A
See step 2
- Check if the customer operated the vehicle in a way that would cause the drive start control to operate.
- CHECK DTC OUTPUT (HEALTH CHECK)
- Perform the Health Check using the GTS.
- Check the DTCs.
Result
Result Proceed to DTCs are not output (Hunting) A DTCs are not output (Hesitation/poor acceleration) B DTCs are output C - Turn the ignition switch off.
Result:
B
See step 6
Result:
C
GO TO DTC CHART. Refer To DIAGNOSTIC TROUBLE CODE CHART [12/2022 - ]
Result:
A
See step 3
- READ VALUE USING GTS (FR, FL, RR, RL WHEEL SPEED)
- Turn the ignition switch to ON (READY).
- Read the values displayed on the GTS.
Chassis > Brake/EPB > Data List
Tester Display FR Wheel Speed FL Wheel Speed RR Wheel Speed RL Wheel Speed Standard
Condition Specified Condition Vehicle stopped 0 km/h (0 mph) Vehicle being driven at constant speed between 16 to 64 km/h (10 to 40 mph) No large fluctuations when driving at a constant speed WARNING:When performing a drive test, obey all speed limits and traffic laws.
HINT:
Data can be captured relatively easily by using the snapshot function in the Data List. Confirm the data after performing the drive test.
- Turn the ignition switch off.
Result
Proceed to OK NG
Result:
NG
INSPECT FRONT OR REAR SPEED SENSOR
Refer to HOW TO PROCEED WITH TROUBLESHOOTING [12/2022 - 03/2023] , or refer to HOW TO PROCEED WITH TROUBLESHOOTING [03/2023 - ]
Result:
OK
See step 4
- READ VALUE USING GTS (VEHICLE SPEED)
- Turn the ignition switch to ON (READY).
- Read the value displayed on the GTS.
Powertrain > Hybrid Control > Data List
Tester Display Vehicle Speed Standard
Inspection Condition Specified Condition Vehicle stopped 0 km/h (0 mph) Vehicle being driven at a constant speed
(16 to 64 km/h (10 to 40 mph))No large fluctuations in displayed speed WARNING:When performing a drive test, obey all speed limits and traffic laws.
HINT:
Data can be captured relatively easily by using the snapshot function in the Data List. Confirm the data after performing the drive test.
- Turn the ignition switch off.
Result
Proceed to OK NG
Result:
NG
INSPECT ELECTRONICALLY CONTROLLED BRAKE SYSTEM (HOW TO PROCEED WITH TROUBLESHOOTING)
Refer to HOW TO PROCEED WITH TROUBLESHOOTING [12/2022 - 03/2023] , or refer to HOW TO PROCEED WITH TROUBLESHOOTING [03/2023 - ]
Result:
OK
See step 5
- READ VALUE USING GTS (FORWARD AND REARWARD G)
- Turn the ignition switch to ON (READY).
- Read the value displayed on the GTS.
Chassis > Brake/EPB > Data List
Tester Display Forward and Rearward G Standard
Condition Specified Condition During deceleration Changes continuously During acceleration Changes continuously WARNING:When performing a drive test, obey all speed limits and traffic laws.
HINT:
Data can be captured relatively easily by using the snapshot function in the Data List. Confirm the data after performing the drive test.
- Turn the ignition switch off.
Result
Proceed to OK NG
Result:
OK
SYSTEM NORMAL (GO TO PROBLEM SYMPTOM TABLE)
Refer to PROBLEM SYMPTOMS TABLE [12/2022 - ]
Result:
NG
INSPECT AIR BAG ECU ASSEMBLY (HOW TO PROCEED WITH TROUBLESHOOTING)
Refer to HOW TO PROCEED WITH TROUBLESHOOTING [12/2022 - 03/2023] , or refer to HOW TO PROCEED WITH TROUBLESHOOTING [03/2023 - ]
- READ VALUE USING GTS (SHIFT POSITION)
- Turn the ignition switch on (iG).
- Read the value displayed on the GTS.
Powertrain > Hybrid Control > Data List
Tester Display Shift Position OK
Condition Specified Condition Select shift state Matches currently selected shift state - Turn the ignition switch off.
Result
Proceed to OK NG
Result:
NG
GO TO ELECTRONIC SHIFT LEVER SYSTEM
Refer to HOW TO PROCEED WITH TROUBLESHOOTING [12/2022 - 03/2023] , or refer to HOW TO PROCEED WITH TROUBLESHOOTING [03/2023 - ]
Result:
OK
See step 7
- READ VALUE USING GTS (ACCELERATOR POSITION SENSOR NO. 1 VOLTAGE %, ACCELERATOR POSITION SENSOR NO. 2 VOLTAGE %)
- Turn the ignition switch on (IG).
- Read the value displayed on the GTS.
Powertrain > Hybrid Control > Data List
Tester Display Accelerator Position Sensor No. 1 Voltage % Accelerator Position Sensor No. 2 Voltage % OK
Condition Specified Condition Accelerator Pedal Released → Depressed Changes continuously - Turn the ignition switch off.
Result
Proceed to OK NG
Result:
OK
SYSTEM NORMAL (GO TO PROBLEM SYMPTOM TABLE)
Refer to PROBLEM SYMPTOMS TABLE [12/2022 - ]
Result:
NG
REPLACE ACCELERATOR PEDAL (WITH SENSOR) ROD ASSEMBLY
Refer to REMOVAL [12/2022 - ]
