Parts Location [12/2022 - ]: Illustration
WARNING: This page is about a different variant/trim than selected.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

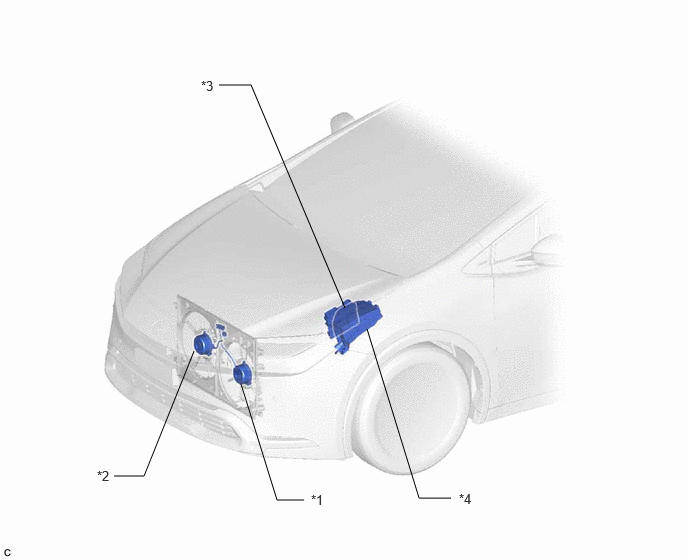

| *1 |
COOLING FAN MOTOR LH |
*2 |
COOLING FAN MOTOR RH |
| *3 |
ECM |
*4 |
NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY
- FAN NO. 1 RELAY
- FAN NO. 2 RELAY
- FAN NO. 3 RELAY |
