Removal [12/2022 - 03/2023]: Procedure

  1. REMOVE FRONT FLOOR COVER LH
    See step  6
  2. REMOVE FRONT FLOOR COVER RH
    See step  7
  3. REMOVE TAIL EXHAUST PIPE ASSEMBLY
    WARNING:

    To prevent burns, do not touch the engine, exhaust pipe or other high temperature components while the engine is hot.

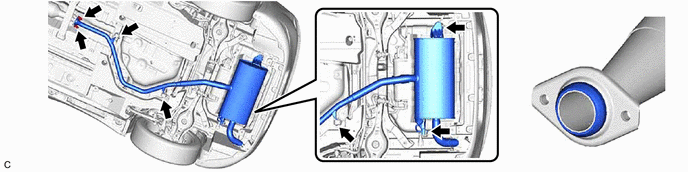

    1. GTY1144153Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE FRONT FLOOR CENTER BRACE

    See step  8

  5. REMOVE AIR FUEL RATIO SENSOR
    Refer to PROCEDURE - Step 2
  6. REMOVE FRONT EXHAUST PIPE ASSEMBLY
    WARNING:

    To prevent burns, do not touch the engine, exhaust pipe or other high temperature components while the engine is hot.

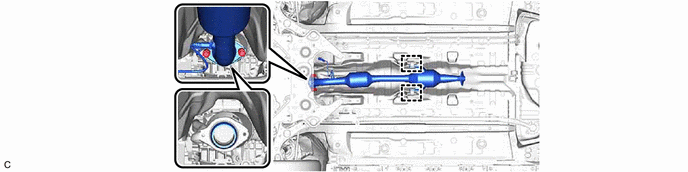

    1. GTY1144152Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
