Removal [03/2023 - ]: Procedure

  1. REMOVE FRONT FLOOR COVER LH
    See step  6
  2. REMOVE FRONT FLOOR COVER RH
    See step  7
  3. REMOVE TAIL EXHAUST PIPE ASSEMBLY
    WARNING:

    To prevent burns, do not touch the engine, exhaust pipe or other high temperature components while the engine is hot.
    1. for HEV Model
      GTY1144153Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. for PHEV Model

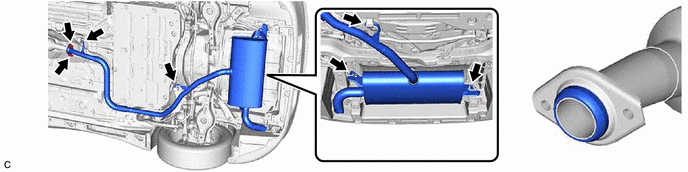

      GTY1150697Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE FRONT FLOOR CENTER BRACE

    See step  8

  5. REMOVE AIR FUEL RATIO SENSOR
    Refer to PROCEDURE - Step 2
  6. REMOVE FRONT EXHAUST PIPE ASSEMBLY
    WARNING:

    To prevent burns, do not touch the engine, exhaust pipe or other high temperature components while the engine is hot.
    1. for HEV Model
      GTY1144152Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. for PHEV Model

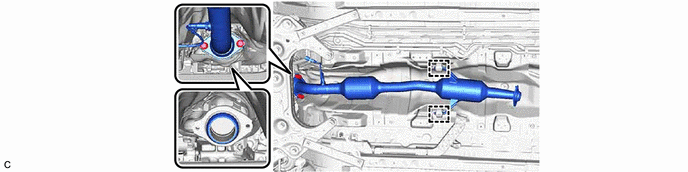

      GTY1150678Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
