Removal [03/2023 - ]: Procedure

  1. REMOVE WINDSHIELD WIPER MOTOR AND LINK

    Refer to REMOVAL [12/2022 - ]

  2. REMOVE WATER GUARD PLATE

    Refer to PROCEDURE - Step 3

  3. REMOVE OUTER COWL TOP PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 4

  4. REMOVE NO. 1 ENGINE UNDER COVER ASSEMBLY

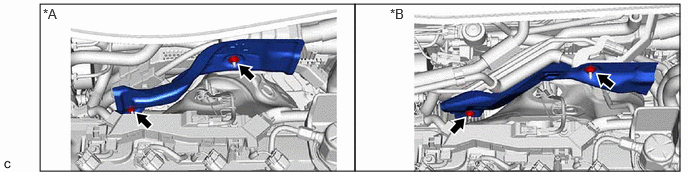

  5. REMOVE DASH PANEL HEAT INSULATOR
    1. GTY1152229Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A for HEV Model *B for PHEV Model

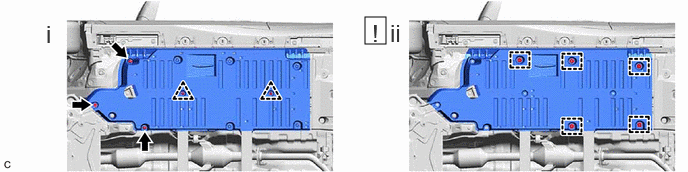

  6. REMOVE FRONT FLOOR COVER LH
    1. for HEV Model
      GTY1143161Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the bolt and 2 nuts, 2 clips.
      2. Turn the clip and remove the front floor cover LH from the vehicle body.
        NOTE:

        If the clip is not turned when the front floor cover LH is removed, the front floor cover LH or stud bolt may be damaged.

        HINT:

        Do not remove the clip from the front floor cover LH.

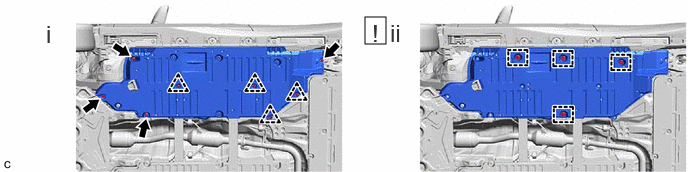

    2. for PHEV Model
      GTY1157841Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the 2 bolts and 2 nuts, 4 clips.
      2. Turn the clip and remove the front floor cover LH from the vehicle body.
        NOTE:

        If the clip is not turned when the front floor cover LH is removed, the front floor cover LH or stud bolt may be damaged.

        HINT:

        Do not remove the clip from the front floor cover LH.

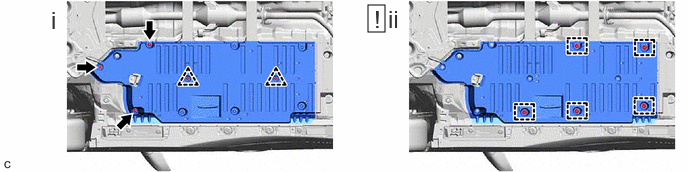

  7. REMOVE FRONT FLOOR COVER RH
    1. GTY1143163Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the bolt and 2 nuts, 2 clips.
      2. Turn the clip and remove the front floor cover RH from the vehicle body.
        NOTE:

        If the clip is not turned when the front floor cover RH is removed, the front floor cover RH or stud bolt may be damaged.

        HINT:

        Do not remove the clip from the front floor cover RH.

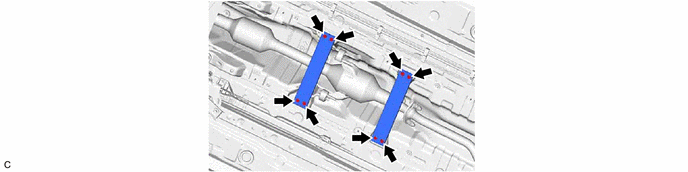

  8. REMOVE FRONT FLOOR CENTER BRACE
    1. GTY1144448Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE NO. 2 ENGINE UNDER COVER (for PHEV Model)

    Refer to PROCEDURE - Step 25

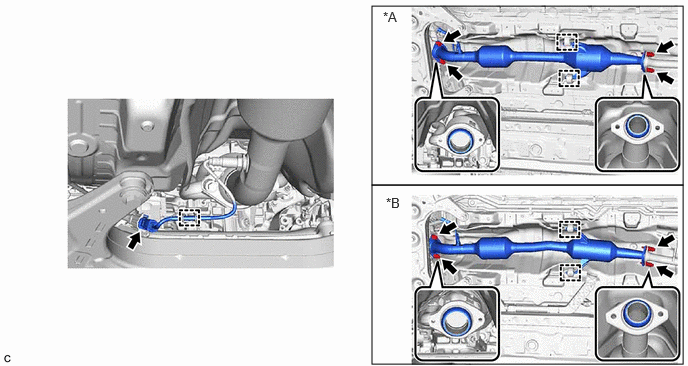

  10. REMOVE FRONT EXHAUST PIPE ASSEMBLY
    WARNING:
    • To prevent burns, do not touch the engine, exhaust manifold or other high temperature components while the engine is hot.
    • To prevent burns, do not touch the engine, exhaust pipe or other high temperature components while the engine is hot.
    1. GTY1150112Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A for HEV Model *B for PHEV Model

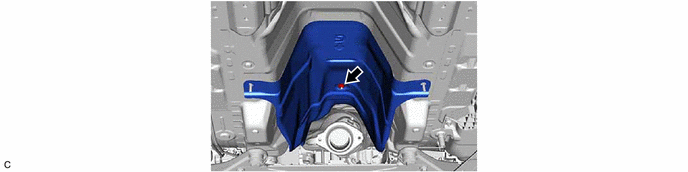

  11. REMOVE FRONT NO. 1 FLOOR HEAT INSULATOR
    1. GTY1150711Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE AIR FUEL RATIO SENSOR
    Refer to PROCEDURE - Step 7

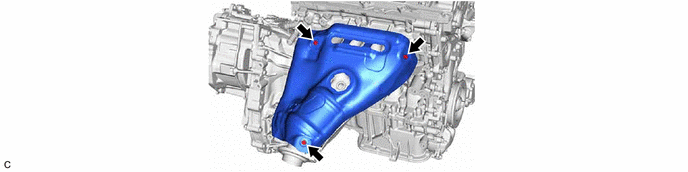

  13. REMOVE NO. 1 EXHAUST MANIFOLD HEAT INSULATOR
    WARNING:

    To prevent burns, do not touch the engine, exhaust manifold or other high temperature components while the engine is hot.
    1. GTY1144450Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE MANIFOLD STAY
    WARNING:

    To prevent burns, do not touch the engine, exhaust manifold or other high temperature components while the engine is hot.
    1. GTY1030548Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. REMOVE NO. 2 EXHAUST MANIFOLD HEAT INSULATOR
    WARNING:

    To prevent burns, do not touch the engine, exhaust manifold or other high temperature components while the engine is hot.
    1. GTY1029734Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

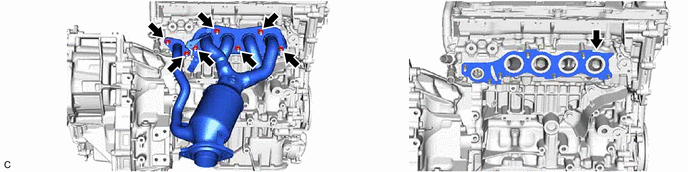

  16. REMOVE EXHAUST MANIFOLD
    WARNING:

    To prevent burns, do not touch the engine, exhaust manifold or other high temperature components while the engine is hot.
    1. GTY1144449Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
