Installation [03/2023 - ]: Procedure

  1. INSTALL EXHAUST MANIFOLD

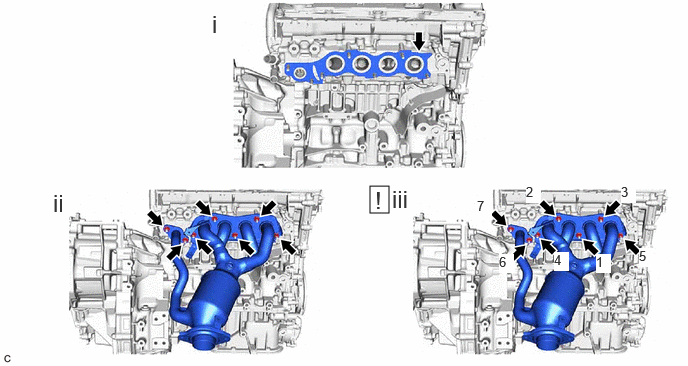

    1. GTY1159919Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Install a new exhaust manifold to head gasket to the cylinder head sub-assembly.
      2. Using a 12 mm deep socket wrench, temporarily install the exhaust manifold to the cylinder head sub-assembly with 7 new nuts.
      3. Using the 12 mm deep socket wrench, tighten the 7 nuts in the order shown in the illustration.

        Torque: 26 N.m (265 kgf/cm, 19 ft.lbf)

  2. INSTALL NO. 2 EXHAUST MANIFOLD HEAT INSULATOR

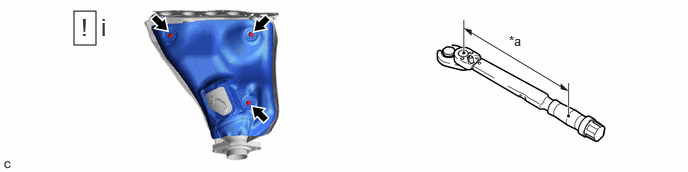

    1. GTY1156157Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Torque Wrench Fulcrum Length - -
      1. Using a 10 mm union nut wrench, install the No. 2 exhaust manifold heat insulator to the exhaust manifold with the 3 bolts.

        Specified tightening torque

        Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

        HINT:

        • Calculate the torque wrench reading when changing the fulcrum length of the torque wrench.

          Refer to PRECAUTION [03/2023 - ]

        • When using a 10 mm union nut wrench (fulcrum length of 22 mm (0.866 in.)) + torque wrench (fulcrum length of 162 mm (6.38 in.)): 8.8 N.m (90 kgf/cm, 78 in.lbf).
  3. INSTALL MANIFOLD STAY

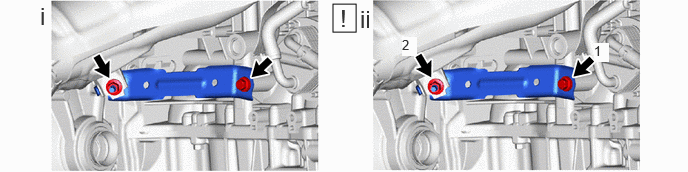

    1. GTY1159016Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Temporarily install the manifold stay to the exhaust manifold and cylinder block sub-assembly with the bolt and nut.
      2. Tighten the bolt and nut in the order shown in the illustration.

        Torque: 43 N.m (438 kgf/cm, 32 ft.lbf)

  4. INSTALL NO. 1 EXHAUST MANIFOLD HEAT INSULATOR

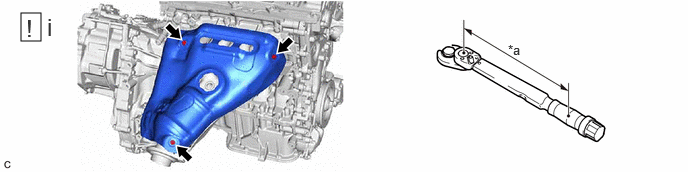

    1. GTY1158178Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Torque Wrench Fulcrum Length - -
      1. Using a 10 mm union nut wrench, install the No. 1 exhaust manifold heat insulator to the exhaust manifold with the 3 bolts.

        Specified tightening torque

        Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

        HINT:

        • Calculate the torque wrench reading when changing the fulcrum length of the torque wrench.

          Refer to PRECAUTION [03/2023 - ]

        • When using a 10 mm union nut wrench (fulcrum length of 22 mm (0.866 in.)) + torque wrench (fulcrum length of 162 mm (6.38 in.)): 8.8 N.m (90 kgf/cm, 78 in.lbf).
  5. INSTALL AIR FUEL RATIO SENSOR
    Refer to PROCEDURE - Step 1
  6. INSTALL FRONT NO. 1 FLOOR HEAT INSULATOR

    Torque: 5.0 N.m (51 kgf/cm, 44 in.lbf)

  7. INSTALL FRONT EXHAUST PIPE ASSEMBLY

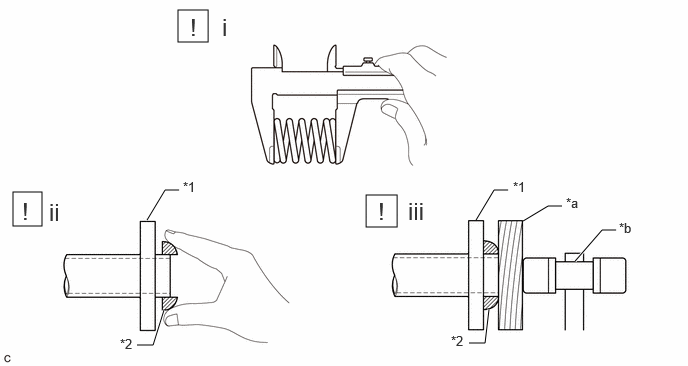

    1. GTY1157186Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Exhaust Manifold or Front Exhaust Pipe Assembly *2 Gasket
      *a Wooden Block *b Plastic Hammer
      1. Using a vernier caliper, measure the free length of the compression springs.
        Standard Length (Front) 43 mm (1.69 in.)
        Standard Length (Rear) 40 mm (1.57 in.)
        Minimum Free Length (Front) 41.5 mm (1.63 in.)
        Minimum Free Length (Rear) 38.5 mm (1.52 in.)

        If the free length is less than the minimum, replace the compression spring.

      2. Temporarily install 2 new gaskets to the exhaust manifold and front exhaust pipe assembly.
      3. Using a plastic hammer and wooden block, tap in each gasket until its surface is flush with the exhaust manifold and front exhaust pipe assembly.
        NOTE:
        • Be sure to install the gasket in the correct direction.
        • Do not reuse the gaskets.
        • Do not damage the gaskets.
        • Do not push in the gaskets by using the exhaust pipes when connecting them.

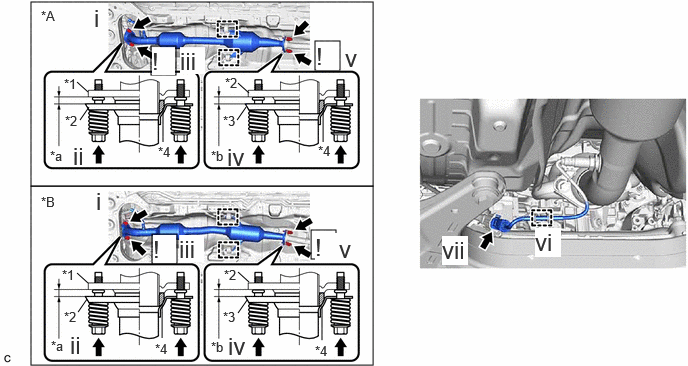

    2. GTY1139067Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A for HEV Model *B for PHEV Model
      *1 Exhaust Manifold *2 Front Exhaust Pipe Assembly
      *3 Tail Exhaust Pipe Assembly *4 Gasket
      *a Space between Flanges: 8.5 mm (0.335in.) *b Space between Flanges: 6.5 mm (0.256in.)
      1. Connect the front exhaust pipe assembly to the exhaust pipe supports.
      2. Install the front exhaust pipe assembly to the exhaust manifold with the 2 compression springs and 2 bolts.

        Torque: 43 N.m (438 kgf/cm, 32 ft.lbf)

      3. After installation, check that the space between the flanges of the exhaust manifold and front exhaust pipe assembly is consistent front-to-rear and left-to-right.
      4. Install the front exhaust pipe assembly to the tail exhaust pipe assembly with the 2 compression springs and 2 bolts.

        Torque: 43 N.m (438 kgf/cm, 32 ft.lbf)

      5. After installation, check that the space between the flanges of the front exhaust pipe assembly and tail exhaust pipe assembly is consistent front-to-rear and left-to-right.
      6. Engage the wire harness clamp.
      7. Connect the air fuel ratio sensor connector.
  8. INSTALL NO. 2 ENGINE UNDER COVER (for PHEV Model)

    Torque: 48.5 N.m (495 kgf/cm, 36 ft.lbf)

  9. INSTALL FRONT FLOOR CENTER BRACE

    Torque: 27 N.m (275 kgf/cm, 20 ft.lbf)

  10. INSTALL FRONT FLOOR COVER RH

    Bolt

    Torque: 7.5 N.m (76 kgf/cm, 66 in.lbf)

    Nut

    Torque: 7.5 N.m (76 kgf/cm, 66 in.lbf)

  11. INSTALL FRONT FLOOR COVER LH

    Bolt

    Torque: 7.5 N.m (76 kgf/cm, 66 in.lbf)

    Nut

    Torque: 7.5 N.m (76 kgf/cm, 66 in.lbf)

  12. INSTALL DASH PANEL HEAT INSULATOR

    Torque: 5.0 N.m (51 kgf/cm, 44 in.lbf)

  13. INSTALL OUTER COWL TOP PANEL SUB-ASSEMBLY

    Bolt

    Torque: 12 N.m (122 kgf/cm, 9 ft.lbf)

    Nut

    Torque: 50 N.m (510 kgf/cm, 37 ft.lbf)

  14. INSTALL WATER GUARD PLATE
  15. INSTALL WINDSHIELD WIPER MOTOR AND LINK

    Refer to INSTALLATION [12/2022 - ]

  16. INSPECT FOR EXHAUST GAS LEAK

    See step  7

  17. INSTALL NO. 1 ENGINE UNDER COVER ASSEMBLY

    Torque: 7.5 N.m (76 kgf/cm, 66 in.lbf)
