Installation [12/2022 - ]: Procedure

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

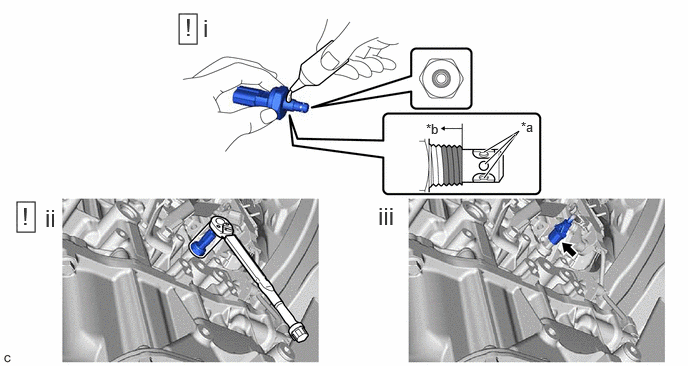

   *a	Oil Inlet Port	*b	3 Threads or More
   	Adhesive Application Area	-	-

   1. Apply adhesive to the area shown in the illustration.

      Adhesive

      Toyota Genuine Adhesive 1344, Three Bond 1344 or equivalent

      NOTE:

      • Do not apply adhesive to the oil inlet port of the oil pressure and temperature sensor.
      • Apply the adhesive to the first 3 threads or more of the oil pressure and temperature sensor.
      • Apply adhesive to the entire circumference of the thread.
   2. Using a 24 mm deep socket wrench, install the oil pressure and temperature sensor.

      Torque: 15 N*m (153 kgf*cm, 11 ft.*lbf)

      NOTE:

      • If the oil pressure and temperature sensor is dropped or subjected to a strong impact, replace it with a new one.
      • Do not start the engine within 1 hour of installation.
   3. Connect the oil pressure and temperature sensor connector.

Refer to PROCEDURE - Step 6 [12/2022 - 03/2023] , or refer to PROCEDURE - Step 6 [03/2023 - ]

Refer to PROCEDURE - Step 1

Refer to PROCEDURE - Step 5 [12/2022 - 03/2023] , or refer to PROCEDURE - Step 5 [03/2023 - ]
