Removal [03/2023 - ]: Procedure

  1. REMOVE TIMING CHAIN COVER ASSEMBLY

    Refer to REMOVAL [03/2023 - ]

  2. REMOVE OIL PAN SUB-ASSEMBLY
    Refer to PROCEDURE - Step 53
  3. REMOVE OIL STRAINER SUB-ASSEMBLY
    Refer to PROCEDURE - Step 54
  4. REMOVE ENGINE OIL LEVEL SENSOR
    See step  4
  5. REMOVE ENGINE BALANCER ASSEMBLY
    Refer to PROCEDURE - Step 56

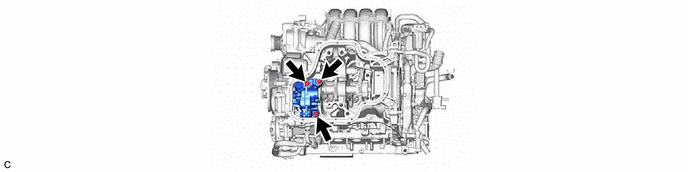

  6. REMOVE OIL PUMP ASSEMBLY
    1. GTY1138564Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE STIFFENING CRANKCASE ASSEMBLY
    Refer to PROCEDURE - Step 58
