Removal [12/2022 - ]: Procedure

  1. REMOVE TIMING CHAIN COVER ASSEMBLY

    Refer to REMOVAL [12/2022 - 03/2023] , or refer to REMOVAL [03/2023 - ]

  2. REMOVE OIL PAN SUB-ASSEMBLY
    Refer to PROCEDURE - Step 53
  3. REMOVE OIL STRAINER SUB-ASSEMBLY
    Refer to PROCEDURE - Step 54
  4. REMOVE OIL PUMP ASSEMBLY

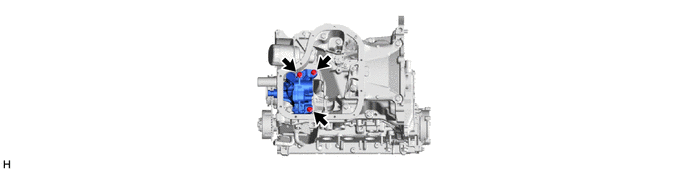

    1. GTY1152836Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
