Installation [12/2022 - ]: Procedure

  1. INSTALL WATER INLET WITH THERMOSTAT SUB-ASSEMBLY

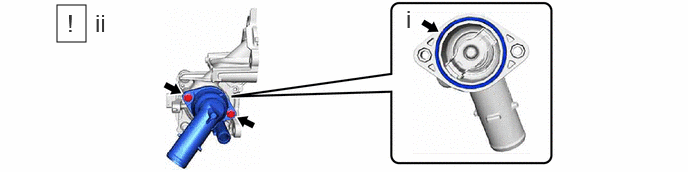

    1. GTY1152597Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Install a new gasket to the water inlet with thermostat sub-assembly.

        HINT:

        Be sure to clean the contact surfaces.

      2. Using an 8 mm socket wrench, install the water inlet with thermostat sub-assembly with the 2 bolts.

        Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

  2. INSTALL ENGINE WATER PUMP ASSEMBLY (WATER INLET HOUSING)

    Refer to INSTALLATION [12/2022 - 03/2023] , or refer to INSTALLATION [03/2023 - ]
