Installation [12/2022 - ]: Procedure

  1. INSTALL E.F.I. VACUUM SENSOR ASSEMBLY (MANIFOLD ABSOLUTE PRESSURE SENSOR)

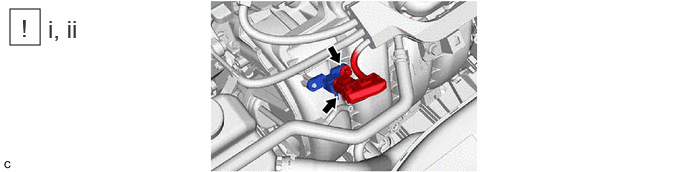

    1. GTY1153485Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using an 8 mm socket wrench, install the E.F.I. vacuum sensor assembly (manifold absolute pressure sensor) to the intake manifold with the bolt.

        Torque: 5.0 N.m (51 kgf/cm, 44 in.lbf)

      2. Connect the E.F.I. vacuum sensor assembly (manifold absolute pressure sensor) connector.
  2. CONNECT VACUUM HOSE
