Installation [12/2022 - ]: Procedure

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

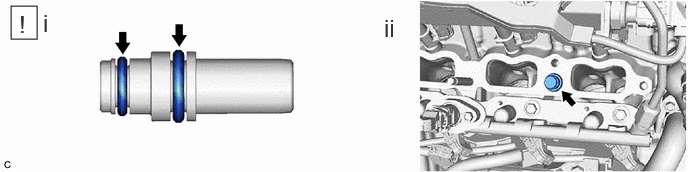

   1. Apply a light coat of engine oil to the O-ring.
      NOTE:

      When reusing the PCV valve (ventilation valve sub-assembly), inspect the O-ring.

   2. Install the PCV valve (ventilation valve sub-assembly) to the cylinder head sub-assembly.

Refer to INSTALLATION [12/2022 - ]
