Installation [12/2022 - ]: Procedure

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

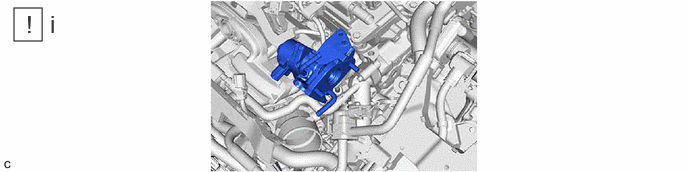

   1. Set the EGR valve assembly to the camshaft housing.

      HINT:

      At this time, do not install the parts with bolts.

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

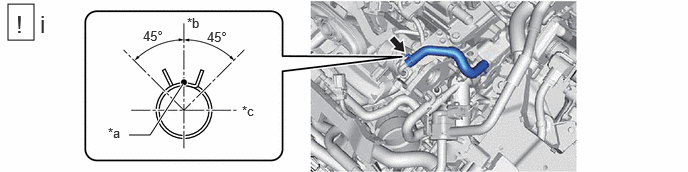

   *a	Paint Mark	*b	Upper Side of Vehicle
   *c	Left Side of Vehicle	-	-

   1. Connect the No. 8 water by-pass hose to the EGR valve assembly and slide the clip to secure it.

      HINT:

      Engage the clip within the area shown in the illustration.

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

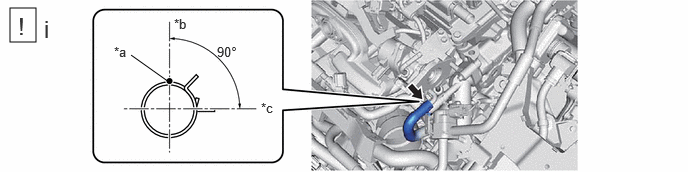

   *a	Paint Mark	*b	Upper Side of Vehicle
   *c	Left Side of Vehicle	-	-

   1. Connect the No. 4 water by-pass hose to the EGR valve assembly and slide the clip to secure it.

      HINT:

      Engage the clip within the area shown in the illustration.

Refer to INSTALLATION [12/2022 - 03/2023] , or refer to INSTALLATION [03/2023 - ]

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

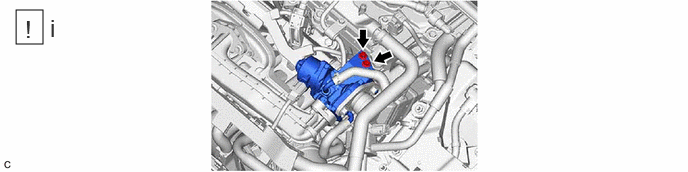

   1. Using the 8 mm socket wrench, install the EGR valve assembly with the 2 bolts.

      Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

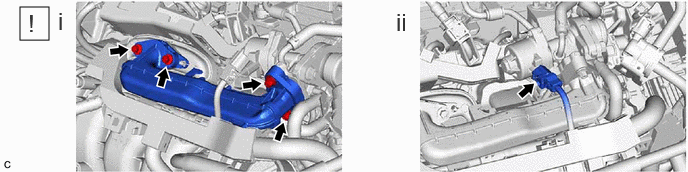

   1. Using an 8 mm socket wrench, install the No. 1 EGR pipe sub-assembly to the intake manifold and EGR valve assembly with the 4 bolts.

      Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

   2. Connect the EGR valve assembly connector.

Refer to PROCEDURE - Step 2

1. If gas is leaking, tighten the areas necessary to stop the leak. Replace damaged parts as necessary.

   HINT:

   Perform "Inspection After Repairs" after repairing or replacing the exhaust system.

   Refer to INITIALIZATION [12/2022 - 03/2023] , or refer to INITIALIZATION [03/2023 - ]

1. Perform "Inspection After Repair" after replacing the EGR valve assembly.

   Refer to INITIALIZATION [12/2022 - 03/2023] , or refer to INITIALIZATION [03/2023 - ]
