Removal [12/2022 - 03/2023]: Procedure

  1. DRAIN ENGINE COOLANT (for Engine)

    Refer to PROCEDURE - Step 1

  2. REMOVE INVERTER WITH CONVERTER ASSEMBLY

    Refer to REMOVAL [12/2022 - ]

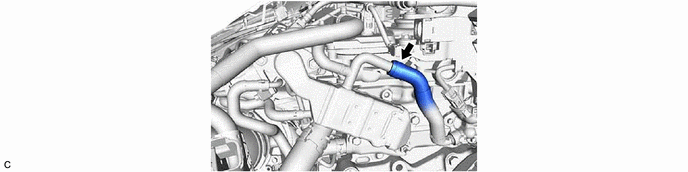

  3. DISCONNECT NO. 3 WATER BY-PASS HOSE
    1. GTY1141964Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

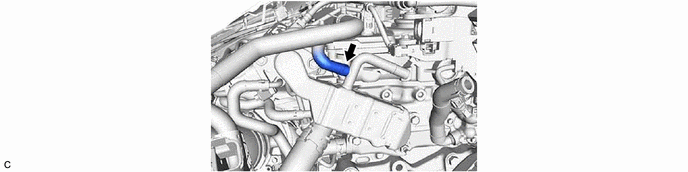

  4. DISCONNECT NO. 4 WATER BY-PASS HOSE
    1. GTY1144179Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

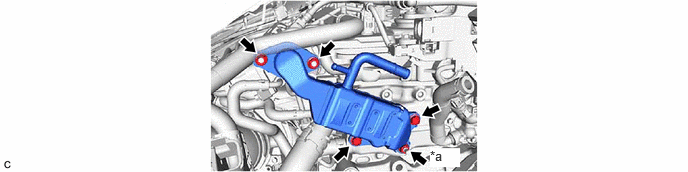

  5. REMOVE EGR COOLER ASSEMBLY
    1. GTY1155813Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Bolt or Nut - -

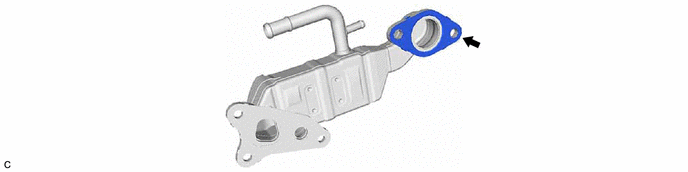

  6. REMOVE EGR VALVE GASKET
    1. GTY1141963Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

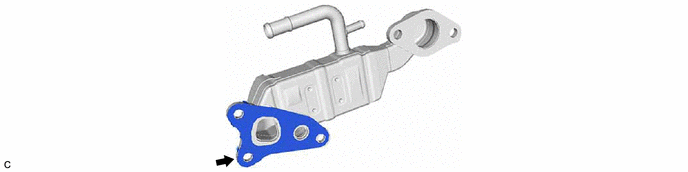

  7. REMOVE NO. 1 EGR COOLER GASKET
    1. GTY1144177Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
