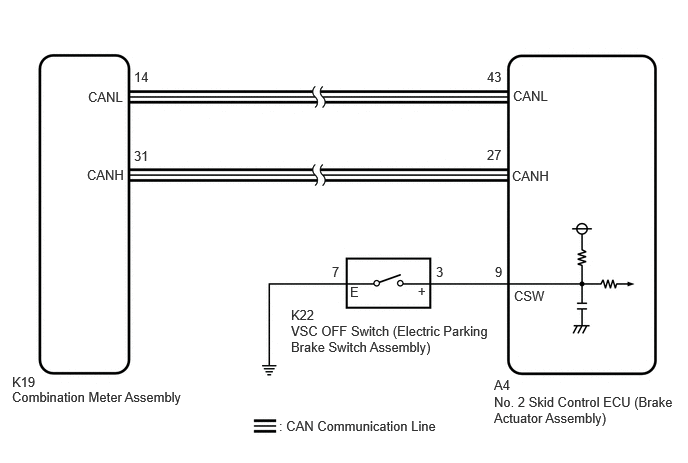

VSC OFF Switch Circuit [12/2022 - 03/2023]: Wiring Diagram

GTY1144884

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
