Removal [12/2022 - ]: Procedure

See step  1

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

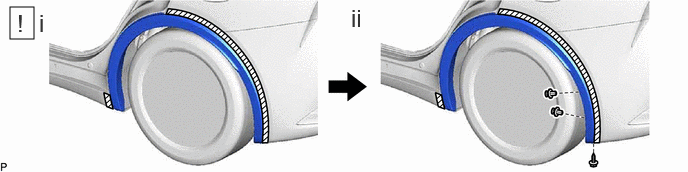

   1. Apply protective tape around the quarter outside moulding sub-assembly as shown in the illustration.
   2. Remove the 2 clips and screw.
2. for LH Side:

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   	Push		Place to Insert Hand
   	Remove in this Direction	-	-

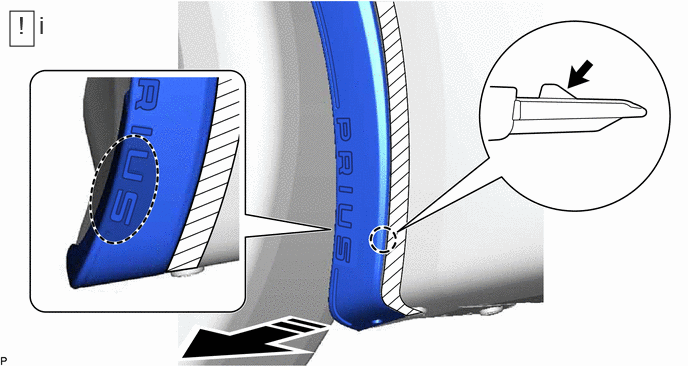

   1. As shown in the illustration, insert your hand between the "U" and "S" of the "PRIUS" and directly push the claw to disengage it.
      NOTE:

      In order not to damage the claw, pull the quarter outer side moulding carefully.

3. for RH Side:

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   	Push		Place to Insert Hand
   	Remove in this Direction	-	-

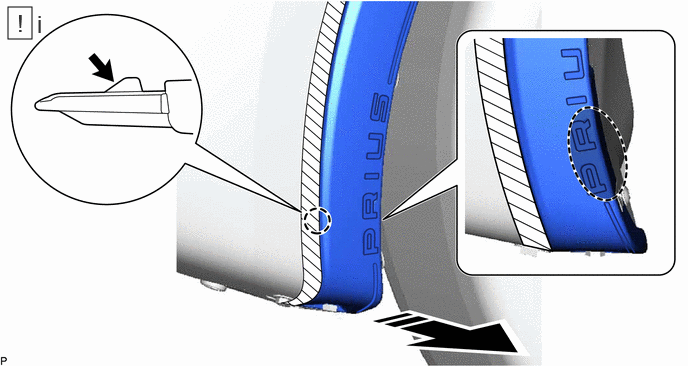

   1. As shown in the illustration, insert your hand between the "P" and "R" of the "PRIUS" and directly push the claw to disengage it.
      NOTE:

      In order not to damage the claw, pull the quarter outer side moulding carefully.

4. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   	Push		Place Hand Here
   	Remove in this Direction	-	-

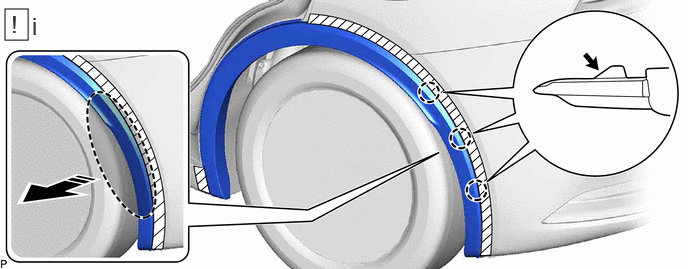

   1. Disengage the 3 claws by pushing the area indicated by the arrow in the illustration with a finger.
      NOTE:

      To avoid damaging the claws, do not forcibly pull the quarter outside moulding sub-assembly.

5. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Place Hand Here

   Remove in this Direction

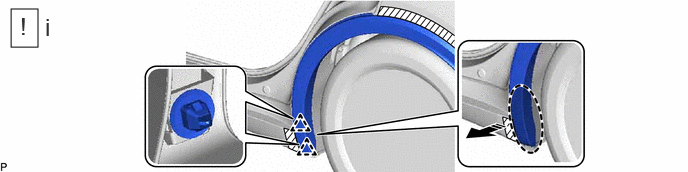

   1. Disengage the 2 clips as shown in the illustration.
      NOTE:

      To prevent damage to the clips, make sure to pull the quarter outer side moulding evenly and straight.

6. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Place Hand Here

   Remove in this Direction

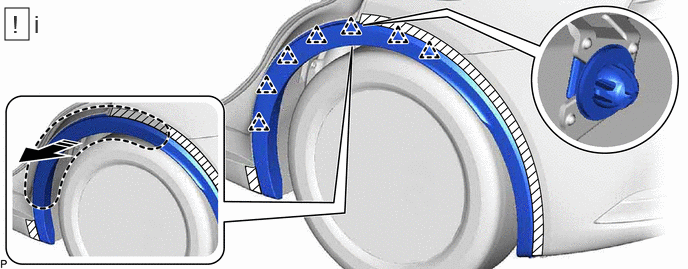

   1. Disengage the 7 clips as shown in the illustration to remove the quarter outside moulding sub-assembly.
