Reassembly [12/2022 - ]: Procedure

  1. INSTALL REAR QUARTER MOULDING LOWER PROTECTOR

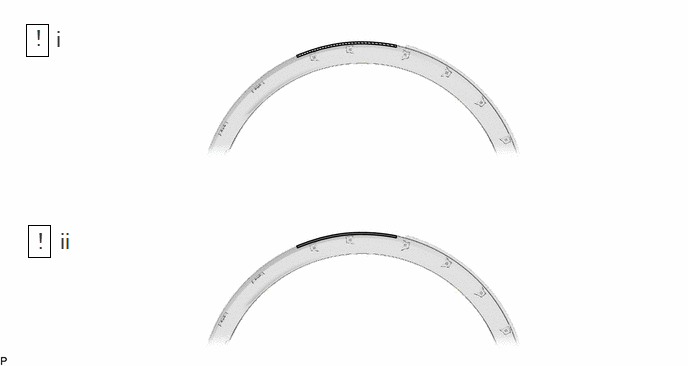

    1. GTY1159687Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Cleaning Area Primer
      1. Clean the quarter outside moulding sub-assembly surface.

        1. Using a heat light, heat the double-sided tape remaining on the quarter outside moulding sub-assembly and rear quarter moulding lower protector.

        HEATING TEMPERATURE

        Area Temperature Area Temperature
        Quarter Outside Moulding Sub-assembly 20 to 30 °C (68 to 86 °F) Rear Quarter Moulding Lower Protector 20 to 30 °C (68 to 86 °F)
        WARNING:
        • Do not touch the heat light and heated parts, touching the heat light may result in burns.
        • Touching heated parts for a long time may result in burns.
        GTY583249Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Heated Part
        *b Heat Light
        NOTE:

        Do not heat the quarter outside moulding sub-assembly excessively.

        2. Remove any remaining double-sided tape from the quarter outside moulding sub-assembly.

        3. Wipe off any tape adhesive residue with cleaner.

      2. Apply primer to the quarter outside moulding sub-assembly on the installation area of the rear quarter moulding lower protector.

        1. Using a brush or felt, apply primer or equivalent to the rear quarter moulding lower protector installation area.

        NOTE:
        • Replace the brush or felt if it is dirty or has become hardened.
        • Do not apply primer to the painted side.
        • Do not touch the quarter outside moulding sub-assembly until the primer has dried.

        2. Let the primer dry sufficiently.

        NOTE:

        Do not touch applied surfaces until the primer is dry.

        Recommended drying time

        10 minutes or more (at 23°C (73°F))

        3. Confirm that the primer has completely dried by touching the quarter outside moulding sub-assembly. Then remove the tape.

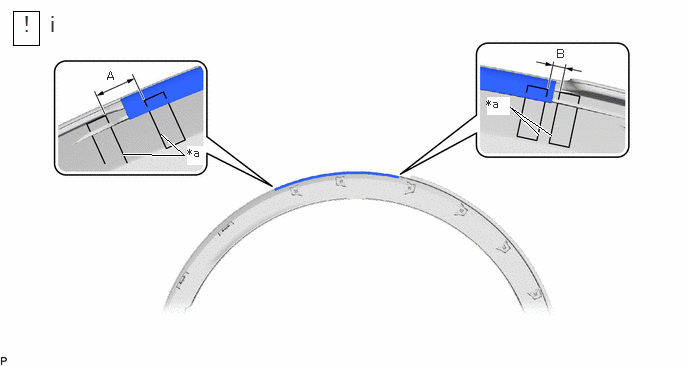

    2. GTY1145125Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Scribed Line - -

      Standard Measurement

      Area Measurement Area Measurement
      A 10.0 mm (0.394 in.) B 3.0 mm (0.118 in.)
      1. Install a new rear quarter moulding lower protector.

        1. Using a heat light, heat the quarter outside moulding sub-assembly surface.

        2. Remove the release paper from the rear quarter moulding lower protector.

        HINT:

        After removing the release paper, keep the exposed adhesive free from foreign matter.

        3. Install the rear quarter moulding lower protector as shown in the illustration.

        HINT:

        • Apply the rear quarter moulding lower protector along the scribed line on the quarter outside moulding sub-assembly.
        • Press the rear quarter moulding lower protector firmly to install it.
  2. INSTALL NO. 1 BODY OUTSIDE MOULDING PAD

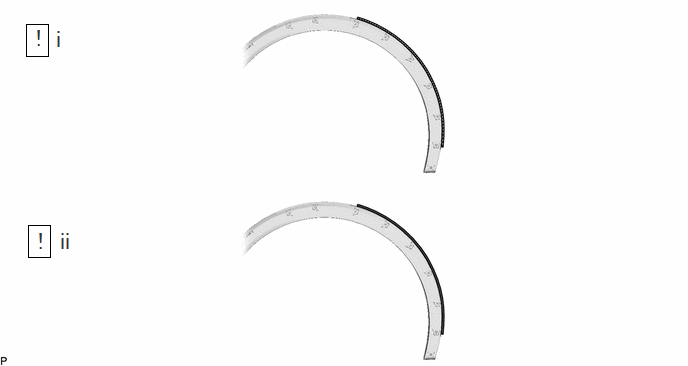

    1. GTY1140539Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Cleaning Area Primer
      1. Clean the quarter outside moulding sub-assembly surface.

        1. Using a heat light, heat the double-sided tape remaining on the quarter outside moulding sub-assembly and No. 1 body outside moulding pad.

        HEATING TEMPERATURE

        Area Temperature Area Temperature
        Quarter Outside Moulding Sub-assembly 20 to 30 °C (68 to 86 °F) No. 1 Body Outside Moulding Pad 20 to 30 °C (68 to 86 °F)
        WARNING:
        • Do not touch the heat light and heated parts, touching the heat light may result in burns.
        • Touching heated parts for a long time may result in burns.
        GTY583249Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Heated Part
        *b Heat Light
        NOTE:

        Do not heat the quarter outside moulding sub-assembly excessively.

        2. Remove any remaining double-sided tape from the quarter outside moulding sub-assembly.

        3. Wipe off any tape adhesive residue with cleaner.

      2. Apply primer to the quarter outside moulding sub-assembly on the installation area of the No. 1 body outside moulding pad.

        1. Using a brush or felt, apply primer or equivalent to the No. 1 body outside moulding pad installation area.

        NOTE:
        • Replace the brush or felt if it is dirty or has become hardened.
        • Do not apply primer to the painted side.
        • Do not touch the quarter outside moulding sub-assembly until the primer has dried.

        2. Let the primer dry sufficiently.

        NOTE:

        Do not touch applied surfaces until the primer is dry.

        Recommended drying time

        10 minutes or more (at 23°C (73°F))

        3. Confirm that the primer has completely dried by touching the quarter outside moulding sub-assembly. Then remove the tape.

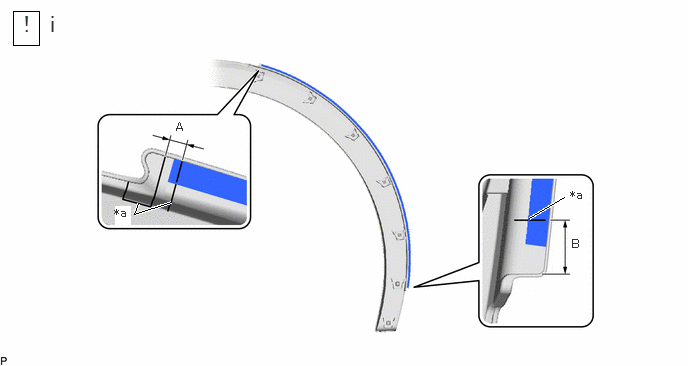

    2. GTY1154462Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Scribed Line - -

      Standard Measurement

      Area Measurement Area Measurement
      A 3.0 mm (0.118 in.) B 10.0 mm (0.394 in.)
      1. Install a new No. 1 body outside moulding pad.

        1. Using a heat light, heat the quarter outside moulding sub-assembly surface.

        2. Remove the release paper from the No. 1 body outside moulding pad.

        HINT:

        After removing the release paper, keep the exposed adhesive free from foreign matter.

        3. Install the No. 1 body outside moulding pad as shown in the illustration.

        HINT:

        • Apply the No. 1 body outside moulding pad along the scribed line on the quarter outside moulding sub-assembly.
        • Press the No. 1 body outside moulding pad firmly to install it.
