Removal [12/2022 - 03/2023]: Procedure

  1. REMOVE ROOF HEADLINING ASSEMBLY

    Refer to REMOVAL [12/2022 - 03/2023]

  2. REMOVE ROOF TOP MOULDING SUB-ASSEMBLY

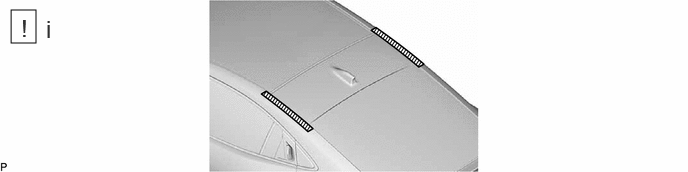

    1. GTY1159070Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Apply protective tape around the roof top moulding sub-assembly as shown in the illustration.

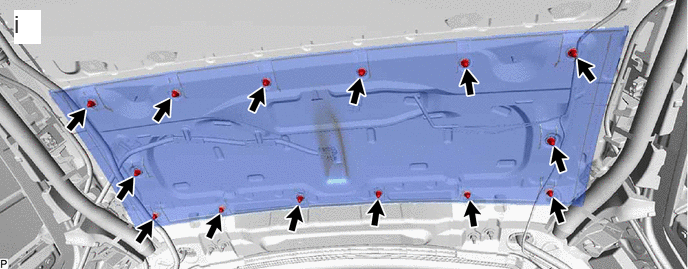

    2. GTY1153844Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the 14 nuts.

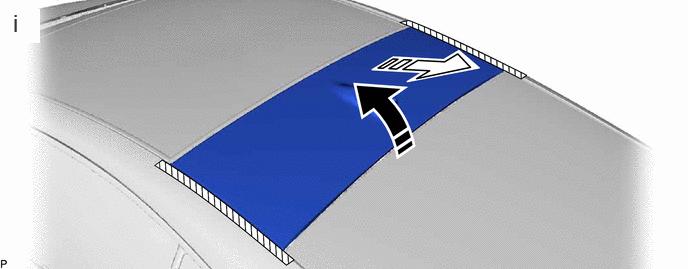

    3. GTY1156169Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1) Remove in this Direction (2)
      1. Remove the roof top moulding sub-assembly, in the order shown in the illustration.
