Removal [12/2022 - ]: Procedure

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   	Place Hand Here		Remove in this Direction (1)
   	Remove in this Direction (2)	-	-

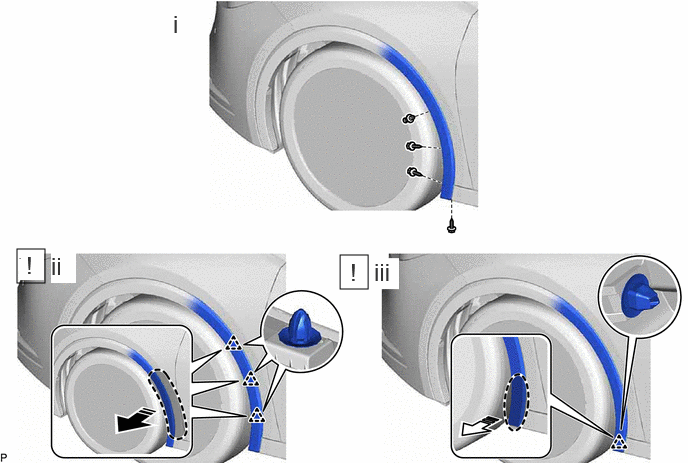

   1. Remove the 3 screws and clip.
   2. Disengage the 3 clips as shown in the illustration.
   3. Disengage the clip as shown in the illustration to disconnect the front fender moulding sub-assembly.
      NOTE:

      To prevent damage to the clips, make sure to pull the front fender moulding sub-assembly evenly and straight.

See step  1

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Place Hand Here

   Remove in this Direction

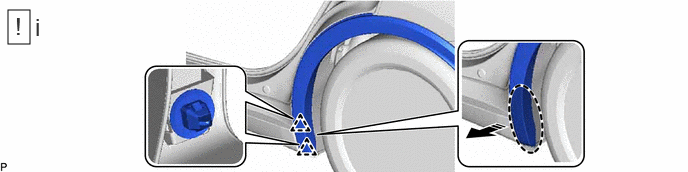

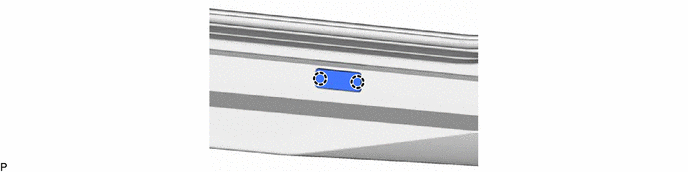

   1. Disengage the 2 clips as shown in the illustration.
      NOTE:

      To prevent damage to the clips, make sure to pull the quarter outer side moulding evenly and straight.

2. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Place Hand Here

   Remove in this Direction

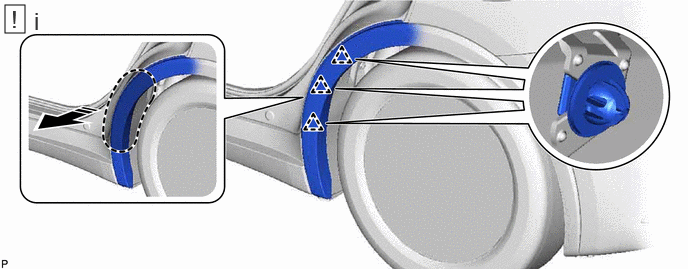

   1. Disengage the 3 clips as shown in the illustration to disconnect the quarter outside moulding sub-assembly.

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Clip (A)

   *b

   Clip (B)

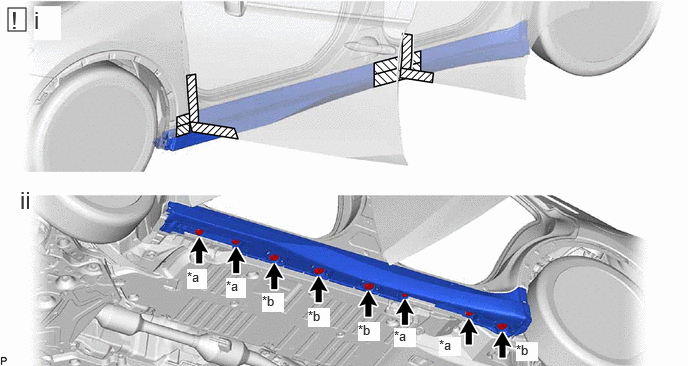

   1. Apply protective tape around the body rocker panel moulding assembly as shown in the illustration.
   2. Remove the 8 clips.

2. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Remove in this Direction

   -

   -

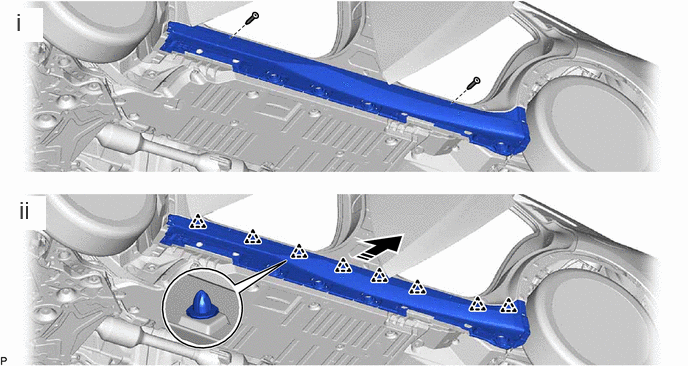

   1. Remove the 2 screws.
   2. Disengage the 8 clips to remove the body rocker panel moulding assembly as shown in the illustration.
