Removal [12/2022 - ]: Procedure

  1. REMOVE QUARTER PILLAR COVER SUB-ASSEMBLY

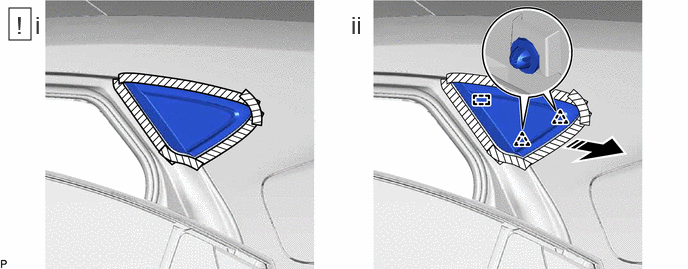

    1. GTY1155009Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
      1. Apply protective tape around the quarter pillar cover sub-assembly as shown in the illustration.
      2. Disengage the 2 clips and pin to remove the quarter pillar cover sub-assembly as shown in the illustration.
  2. REMOVE DOOR TRIM RETAINER CAP
    1. When reusing the quarter pillar cover sub-assembly:

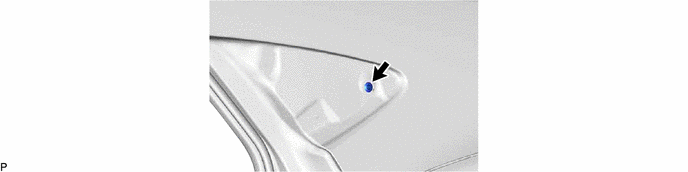

      GTY1159791Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
