Removal [12/2022 - ]: Procedure

  1. REMOVE FRONT PILLAR UPPER COVER SUB-ASSEMBLY

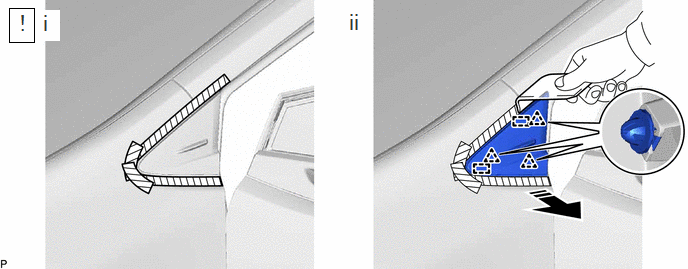

    1. GTY1155972Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
      1. Apply protective tape around the front pillar upper cover sub-assembly as shown in the illustration.
      2. Using a moulding remover, disengage the 3 clips and 2 guides as shown in the illustration to remove the front pillar upper cover sub-assembly.
