Caution / Notice / Hint
The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during front fender sub-assembly removal/installation are shown below.
NECESSARY PROCEDURES AFTER PARTS REMOVED/INSTALLED/REPLACED
| Replaced Part or Performed Procedure | Necessary Procedures | Effect/Inoperative Function When Necessary Procedures are not Performed | Link |
|---|---|---|---|
|
Front television camera view adjustment | Panoramic View Monitor System | Refer to CALIBRATION [12/2022 - ] |
| Advanced Park | Refer to CALIBRATION [12/2022 - ] | ||
Replacement or removal and installation of 2 or more parts:
|
Television camera view adjustment | Panoramic View Monitor System | Refer to CALIBRATION [12/2022 - ] |
| Tires |
|
Tire Pressure Warning System | Refer to Procedures Necessary When Replacing Parts (for Tire Pressure Warning System) Refer to WORK PROCEDURE [12/2022 - 03/2023] , or refer to WORK PROCEDURE [03/2023 - ] |
| Rear television camera assembly optical axis (Back camera position setting)*3 | Parking Assist Monitor System | Refer to CALIBRATION [12/2022 - ] | |
| Parking assist ECU initialization*3 | Panoramic View Monitor System | Refer to CALIBRATION [12/2022 - ] | |
| Advanced Park | Refer to CALIBRATION [12/2022 - ] |
*: Even when not replacing the part, it is necessary to perform the specified necessary procedures after installation.*1: Also necessary after performing a tire rotation.*2: It is not necessary to perform this procedure if the tire pressure warning valve and transmitters are installed to the same location.*3: The vehicle height changes because of tire replacement.
HINT:
- Use the same procedure for the RH side and LH side.
- The following procedure is for the LH side.

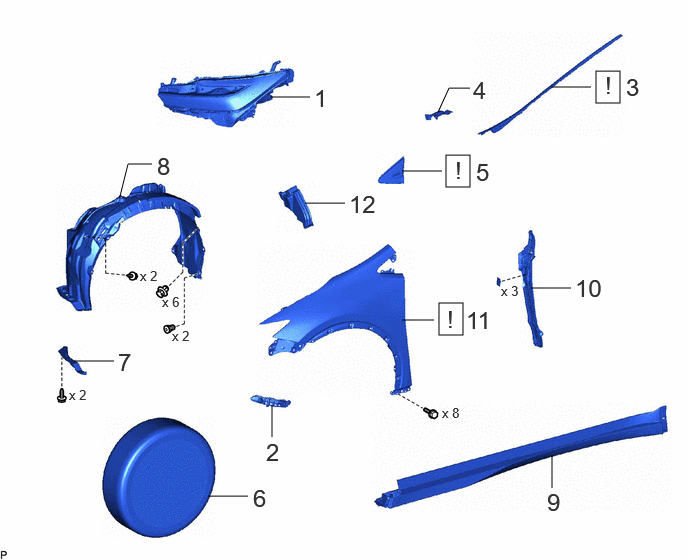

COMPONENTS (DISASSEMBLY)
| Callout - Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 1 | HEADLIGHT ASSEMBLY | - | - | - | - |
| 2 | FRONT BUMPER SIDE SUPPORT | 52116A | - | - | - |
| 3 | WINDSHIELD LOWER OUTSIDE MOULDING | 75536D | See step 3 | - | - |
| 4 | COWL WATER EXTRACT SHIELD | 55754F | - | - | - |
| 5 | FRONT PILLAR UPPER COVER SUB-ASSEMBLY | 60118 | See step 5 | - | - |
| 6 | WHEEL ASSEMBLY | - | - | - | - |
| 7 | FRONT WHEEL OPENING EXTENSION PAD | 53852B | - | - | - |
| 8 | FRONT FENDER LINER | 53876A | - | - | - |
| 9 | BODY ROCKER PANEL MOULDING ASSEMBLY | 75860A | - | - | - |
| 10 | FRONT FENDER SIDE PANEL PROTECTOR | 53828B | - | - | - |
| 11 | FRONT FENDER SUB-ASSEMBLY | 53802 | See step 11 | - | - |
| 12 | NO. 2 FRONT SIDE AIR GUIDE | 53154E | - | - | - |
