The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during front door window frame moulding removal/installation are shown below.

NECESSARY PROCEDURES AFTER PARTS REMOVED/INSTALLED/REPLACED

Replaced Part or Performed Procedure	Necessary Procedures	Effect/Inoperative Function When Necessary Procedures are not Performed	Link
Outer rear view mirror assembly LH* Outer rear view mirror assembly RH*	Side television camera view adjustment	Parking Support Brake system	Refer to CALIBRATION [12/2022 - ]
		Panoramic View Monitor System	Refer to CALIBRATION [12/2022 - ]
		Advanced Park	Refer to CALIBRATION [12/2022 - ]
Replacement or removal and installation of 2 or more parts: Front television camera assembly, Radiator grille or Front bumper assembly Rear television camera assembly Side television camera assembly LH, Parking assist light LH or Outer rear view mirror assembly LH Side television camera assembly RH, Parking assist light RH or Outer rear view mirror assembly RH	Television camera view adjustment	Panoramic View Monitor System	Refer to CALIBRATION [12/2022 - ]
Power window regulator motor assembly LH Power window regulator motor assembly RH Front door window regulator sub-assembly LH* Front door window regulator sub-assembly RH* Front door glass sub-assembly LH* Front door glass sub-assembly RH* Front door glass run LH* Front door glass run RH*	Initialize power window control system	Auto up and down function Remote control function Key-off operation function Wireless transmitter-linked function Key-linked function Window open warning function Catch protection function Jam protection function	Refer to REGISTRATION [12/2022 - ]

*: Even when not replacing the part, it is necessary to perform the specified necessary procedures after installation.

NOTE:

After the ignition switch is turned off, the radio and display receiver assembly recordsvarious types of memory and settings. As a result, after turning the ignition switch off, make sure to wait at least 3 minutes before disconnecting the cable from the negative(-) auxiliary battery terminal.
Refer to BEFORE DISCONNECTING BATTERY [12/2022 - ]
When the cable is disconnected from the negative (-) auxiliary battery terminal and the security lock setting has been enabled, multi-display operations will be disabled uponnext startup unless the password is entered. Be sure to check the security lock setting before disconnecting the cable from the negative (-) auxiliary battery terminal.
Refer to INSPECTION MODE PROCEDURE [12/2022 - ]

HINT:

When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

LEARNING COMPLETES WHEN VEHICLE IS DRIVEN

Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
Front Camera System	Drive the vehicle straight ahead at 35 km/h (22 mph) or more for 5 seconds or more.	Refer to INITIALIZATION [12/2022 - ]

LEARNING COMPLETES WHEN VEHICLE IS OPERATED NORMALLY

Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
Power Door Lock Control System*1 Back door opener	Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch.	Refer to INITIALIZATION [12/2022 - ]
Power Back Door System*2	Reset back door close position	Refer to INITIALIZATION [12/2022 - ]
Air Conditioning System	for HEV Model: After the ignition switch is turned to ON, the servo motor standard position is recognized. for PHEV Model: After the ignition switch is turned to ON, the servo motor and expansion valve standard position is recognized.	-

Effect/Inoperative Function When Necessary Procedures are not Performed

Necessary Procedures

Link

Power Door Lock Control System*1

Back door opener

Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch.

Refer to INITIALIZATION [12/2022 - ]

Power Back Door System*2

Reset back door close position

Refer to INITIALIZATION [12/2022 - ]

Air Conditioning System

for HEV Model:

After the ignition switch is turned to ON, the servo motor standard position is recognized.

for PHEV Model:

After the ignition switch is turned to ON, the servo motor and expansion valve standard position is recognized.

*1: w/o Power Back Door System*2: w/ Power Back Door System

Use the same procedure for the RH side and LH side.
The following procedure is for the LH side.

COMPONENTS (REMOVAL)

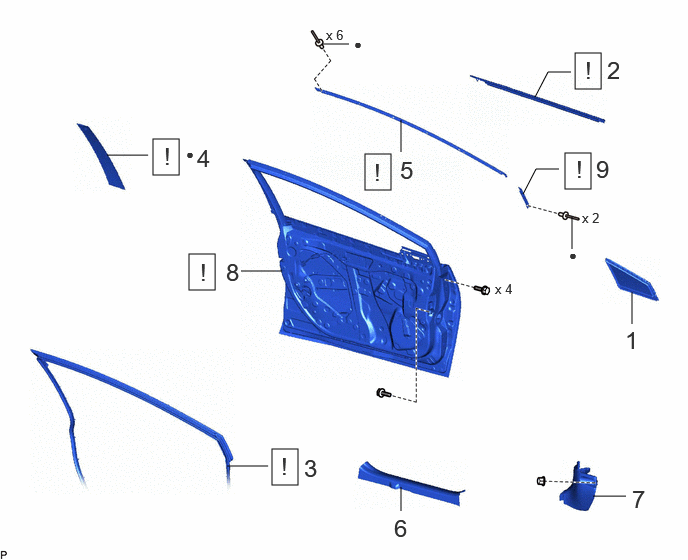

Fig 1: Front Door Window Frame Moulding Removal Components [03/2023 - ]

Callout - Procedure		Part Name Code
1	FRONT DOOR FIX WINDOW GLASS	68126	-	-	-
2	FRONT DOOR BELT MOULDING ASSEMBLY	75720	See step 2	-	-
3	FRONT DOOR WEATHERSTRIP	67862	See step 3	-	-
4	FRONT DOOR WINDOW FRAME REAR MOULDING	75756C	See step 4	-	-
5	FRONT DOOR WINDOW FRAME UPPER MOULDING	75754A	See step 5	-	-
6	FRONT DOOR SCUFF PLATE	67914	-	-	-
7	COWL SIDE TRIM BOARD	62112	-	-	-
8	FRONT DOOR SUB-ASSEMBLY	-	See step 8	-	-
9	FRONT DOOR WINDOW FRAME FRONT MOULDING	75752C	See step 9	-	-

•

Non-reusable part
