Caution / Notice / Hint

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during rear bumper assembly removal/installation are shown below.

HINT:

When the rear bumper is damaged or deformed due to an accident or contact with other objects, etc., or the bumper installation area on the body is repaired, it is necessary to perform ultrasonic sensor detection angle measurement.
- w/ Parking Support Brake System:
  Refer to CALIBRATION [12/2022 - ]
- w/ Advanced Park:
  Refer to CALIBRATION [12/2022 - ]
If the bumper is damaged, there is a possibility that the installation area of the blind spot monitor sensor may be deformed and the blind spot monitor system may not operate correctly, so visually inspect the blind spot monitor sensor installation area (frame, stud bolt) to make sure it is not dented or bent.
If a problem is found during the visual inspection, check the installation condition of the blind spot monitor sensor, and adjust the installation position of the blind spot monitor sensor as necessary.
- Driving Adjustment:
  Refer to DRIVING ADJUSTMENT [12/2022 - ]
- Target Adjustment (Triangle Target):
  Refer to TARGET ADJUSTMENT (TRIANGLE TARGET) [12/2022 - ]

COMPONENTS (REMOVAL)

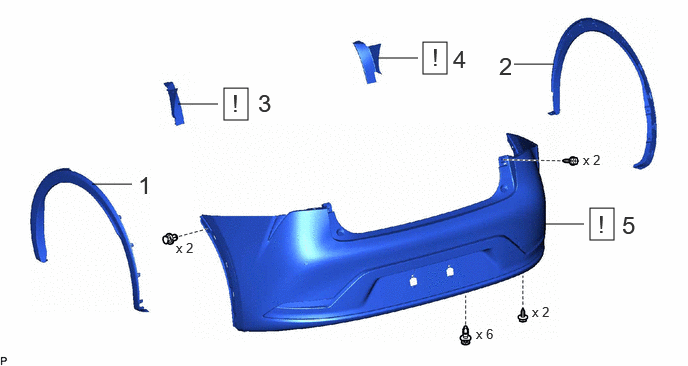

Fig 1: Rear Bumper Removal Components

Callout - Procedure		Part Name Code
1	QUARTER OUTSIDE MOULDING SUB-ASSEMBLY LH	75606B	-	-	-
2	QUARTER OUTSIDE MOULDING SUB-ASSEMBLY RH	75605B	-	-	-
3	REAR COMBINATION LIGHT COVER LH	81498	See step 3	-	-
4	REAR COMBINATION LIGHT COVER RH	81497	See step 4	-	-
5	REAR BUMPER ASSEMBLY	-	See step 5	-	-
