Reassembly [12/2022 - ]: Procedure

Torque: 26 N*m (265 kgf*cm, 19 ft.*lbf)

1. Use the same procedure as for the LH side.

for Type A:

Torque: 62 N*m (632 kgf*cm, 46 ft.*lbf)

for Type B:

Torque: 26 N*m (265 kgf*cm, 19 ft.*lbf)

Torque: 18 N*m (184 kgf*cm, 13 ft.*lbf)

Torque: 18 N*m (184 kgf*cm, 13 ft.*lbf)

1. Use the same procedure as for the LH side.

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Use the same procedure as for the LH side.

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

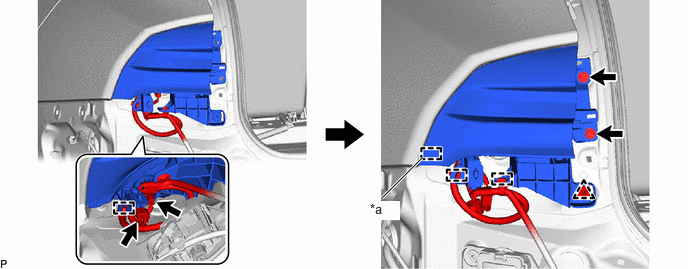

   *a

   Pin

   -

   -

1. Use the same procedure as for the LH side.

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

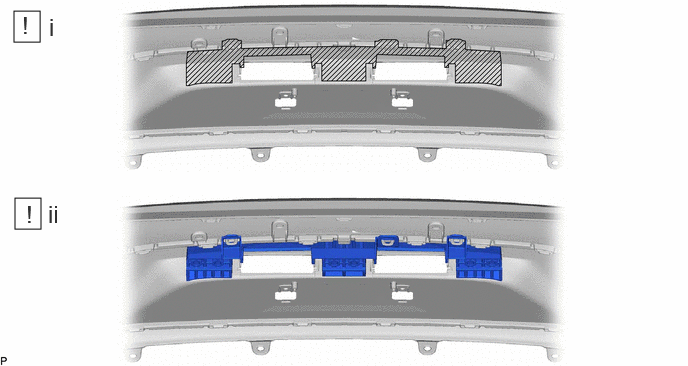

   Cleaning Area

   -

   -

   1. Clean the rear bumper cover surface.

      1. Using a heat light, heat the double-sided tape remaining on the rear bumper cover and 2 seal tapes.

      HEATING TEMPERATURE



      Area	Temperature	Area	Temperature
      Rear Bumper Cover	20 to 30 °C (68 to 86 °F)	Seal Tape	20 to 30 °C (68 to 86 °F)

      WARNING:

      • Do not touch the heat light and heated parts, touching the heat light may result in burns.
      • Touching heated parts for a long time may result in burns.

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      *a	Heated Part
      *b	Heat Light

      NOTE:

      Do not heat the rear bumper cover excessively.

      2. Remove any remaining double-sided tape from the rear bumper cover.

      3. Wipe off any tape adhesive residue with cleaner.

   2. Install 2 new seal tapes.

      1. Using a heat light, heat the rear bumper cover surface.

      2. Remove the release paper from the 2 seal tapes.

      HINT:

      After removing the release paper, keep the exposed adhesive free from foreign matter.

      3. Install the 2 seal tapes as shown in the illustration.

      HINT:

      • Apply the seal tape along the scribed line on the rear bumper cover.
      • Press the seal tape firmly to install it.

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

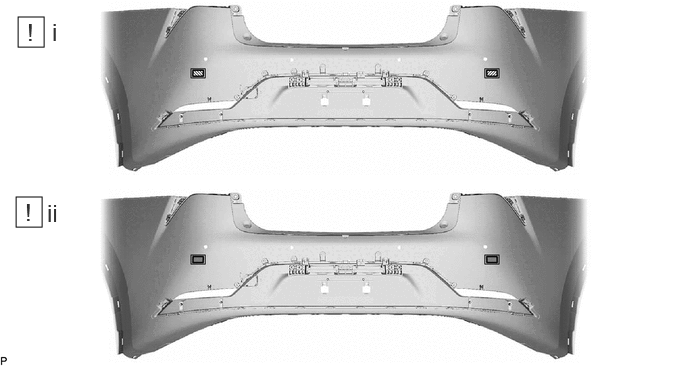

   Cleaning Area

   -

   -

   1. Clean the rear bumper cover surface.

      1. Using a heat light, heat the double-sided tape remaining on the rear bumper cover and No. 2 rear bumper energy absorber.

      HEATING TEMPERATURE



      Area	Temperature	Area	Temperature
      Rear Bumper Cover	20 to 30 °C (68 to 86 °F)	No. 2 Rear Bumper Energy Absorber	20 to 30 °C (68 to 86 °F)

      WARNING:

      • Do not touch the heat light and heated parts, touching the heat light may result in burns.
      • Touching heated parts for a long time may result in burns.

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      *a	Heated Part
      *b	Heat Light

      NOTE:

      Do not heat the rear bumper cover excessively.

      2. Remove any remaining double-sided tape from the rear bumper cover.

      3. Wipe off any tape adhesive residue with cleaner.

   2. Install new No. 2 rear bumper energy absorber.

      1. Using a heat light, heat the rear bumper cover surface.

      2. Remove the release paper from the No. 2 rear bumper energy absorber.

      HINT:

      After removing the release paper, keep the exposed adhesive free from foreign matter.

      3. Install the No. 2 rear bumper energy absorber as shown in the illustration.

      HINT:

      • Apply the No. 2 rear bumper energy absorber along the scribed line on the rear bumper cover.
      • Press the No. 2 rear bumper energy absorber firmly to install it.

2. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

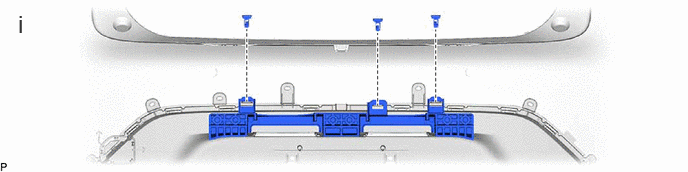

   1. Install the 3 clips.

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Scribed Line	-	-
   	Cleaning Area	-	-

   1. Clean the rear bumper cover surface.

      1. Using a heat light, heat the double-sided tape remaining on the rear bumper cover and 2 rear bumper pads.

      HEATING TEMPERATURE



      Area	Temperature	Area	Temperature
      Rear Bumper Cover	20 to 30 °C (68 to 86 °F)	Rear Bumper Pad	20 to 30 °C (68 to 86 °F)

      WARNING:

      • Do not touch the heat light and heated parts, touching the heat light may result in burns.
      • Touching heated parts for a long time may result in burns.

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      *a	Heated Part
      *b	Heat Light

      NOTE:

      Do not heat the rear bumper cover excessively.

      2. Remove any remaining double-sided tape from the rear bumper cover.

      3. Wipe off any tape adhesive residue with cleaner.

   2. Install 2 new rear bumper pads.

      1. Using a heat light, heat the rear bumper cover surface.

      2. Remove the release paper from the 2 rear bumper pads.

      HINT:

      After removing the release paper, keep the exposed adhesive free from foreign matter.

      3. Install the 2 rear bumper pads as shown in the illustration.

      HINT:

      • Apply the rear bumper pad along the scribed line on the rear bumper cover.
      • Press the rear bumper pad firmly to install it.

1. w/o Side Marker Light:

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

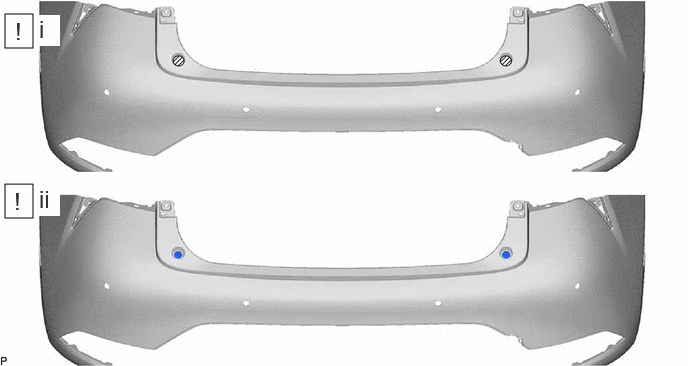

   Cleaning Area

   Primer

   1. Clean the rear bumper cover surface.

      1. Using a heat light, heat the double-sided tape remaining on the rear bumper cover and 2 rear ultrasonic sensor clips.

      HEATING TEMPERATURE



      Area	Temperature	Area	Temperature
      Rear Bumper Cover	20 to 30 °C (68 to 86 °F)	Rear Ultrasonic Sensor Clip	20 to 30 °C (68 to 86 °F)

      WARNING:

      • Do not touch the heat light and heated parts, touching the heat light may result in burns.
      • Touching heated parts for a long time may result in burns.

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      *a	Heated Part
      *b	Heat Light

      NOTE:

      Do not heat the rear bumper cover excessively.

      2. Remove any remaining double-sided tape from the rear bumper cover.

      3. Wipe off any tape adhesive residue with cleaner.

   2. Apply primer to the installation area of the 2 rear ultrasonic sensor clips on the front bumper cover.

      1. Using a brush or felt, apply primer or equivalent to the installation area of the 2 rear ultrasonic sensor clips.

      NOTE:

      • Replace the brush or felt if it is dirty or has become hardened.
      • Do not apply primer to the painted side.
      • Do not touch the front bumper cover until the primer has dried.

      2. Let the primer dry sufficiently.

      NOTE:

      Do not touch applied surfaces until the primer is dry.

      Recommended drying time

      10 minutes or more (at 23°C (73°F))

      3. Confirm that the primer has completely dried by touching the front bumper cover. Then remove the tape.

2. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

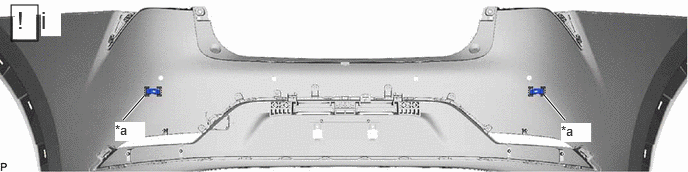

   *a

   Scribed Line

   -

   -

   1. Install 2 new rear ultrasonic sensor clips.

      1. Using a heat light, heat the front bumper cover surface.

      2. Remove the release paper from the 2 rear ultrasonic sensor clips.

      HINT:

      After removing the release paper, keep the exposed adhesive free from foreign matter.

      3. Install the 2 rear ultrasonic sensor clips as shown in the illustration.

      HINT:

      • Apply each rear ultrasonic sensor clip along the scribed line on the front bumper cover.
      • Press the rear ultrasonic sensor clip firmly to install it.
3. w/ Side Marker Light:

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Cleaning Area

   Primer

   1. Clean the rear bumper cover surface.

      1. Using a heat light, heat the double-sided tape remaining on the rear bumper cover and 4 rear ultrasonic sensor clips.

      HEATING TEMPERATURE



      Area	Temperature	Area	Temperature
      Rear Bumper Cover	20 to 30 °C (68 to 86 °F)	Rear Ultrasonic Sensor Clip	20 to 30 °C (68 to 86 °F)

      WARNING:

      • Do not touch the heat light and heated parts, touching the heat light may result in burns.
      • Touching heated parts for a long time may result in burns.

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      *a	Heated Part
      *b	Heat Light

      NOTE:

      Do not heat the rear bumper cover excessively.

      2. Remove any remaining double-sided tape from the rear bumper cover.

      3. Wipe off any tape adhesive residue with cleaner.

   2. Apply primer to the installation area of the 4 rear ultrasonic sensor clips on the front bumper cover.

      1. Using a brush or felt, apply primer or equivalent to the installation area of the 4 rear ultrasonic sensor clips.

      NOTE:

      • Replace the brush or felt if it is dirty or has become hardened.
      • Do not apply primer to the painted side.
      • Do not touch the front bumper cover until the primer has dried.

      2. Let the primer dry sufficiently.

      NOTE:

      Do not touch applied surfaces until the primer is dry.

      Recommended drying time

      10 minutes or more (at 23°C (73°F))

      3. Confirm that the primer has completely dried by touching the front bumper cover. Then remove the tape.

4. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

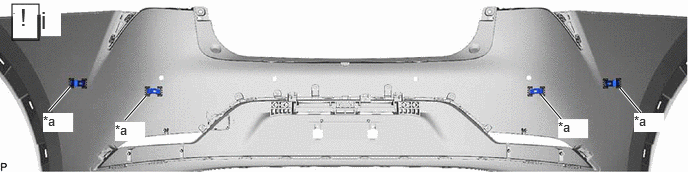

   *a

   Scribed Line

   -

   -

   1. Install 4 new rear ultrasonic sensor clips.

      1. Using a heat light, heat the front bumper cover surface.

      2. Remove the release paper from the 4 rear ultrasonic sensor clips.

      HINT:

      After removing the release paper, keep the exposed adhesive free from foreign matter.

      3. Install the 4 rear ultrasonic sensor clips as shown in the illustration.

      HINT:

      • Apply each rear ultrasonic sensor clip along the scribed line on the front bumper cover.
      • Press the rear ultrasonic sensor clip firmly to install it.

1. Use the same procedure as for the LH side.
