COMPONENTS (REMOVAL)

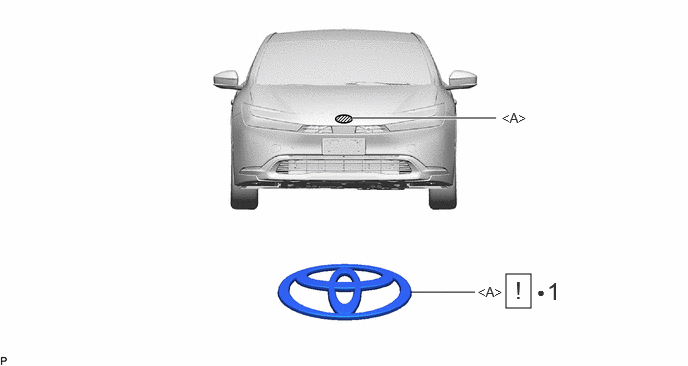

| Callout - Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 1 | RADIATOR GRILLE (OR FRONT PANEL) EMBLEM | 75311 | See step 1 | - | - |
| • | Non-reusable part | - | - |

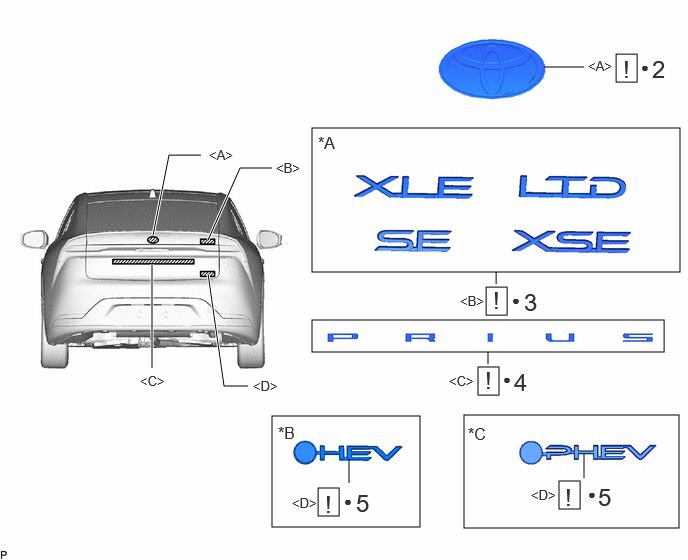

| Callout - Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 2 | NO. 1 BACK DOOR EMBLEM | 75431A | See step 2 | - | - |
| 3 | NO. 4 BACK DOOR NAME PLATE | 75444A | See step 3 | - | - |
| 4 | NO. 1 BACK DOOR NAME PLATE | 75441E | See step 4 | - | - |
| 5 | NO. 3 BACK DOOR EMBLEM | 75443 | See step 5 | - | - |
| *A | w/ No. 4 Back Door Name Plate | *B | for HEV Model |
| *C | for PHEV Model | - | - |
| • | Non-reusable part | - | - |

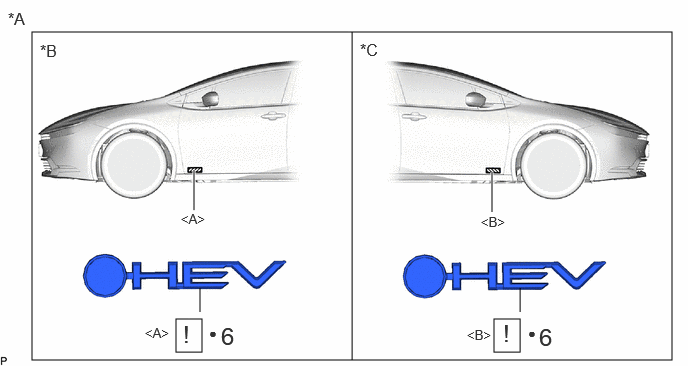

| Callout - Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 6 | SIDE PANEL EMBLEM | 75374 | See step 6 | - | - |
| *A | w/ Side Panel Emblem | *B | for LH Side |
| *C | for RH Side | - | - |
| • | Non-reusable part | - | - |
