The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during radiator shutter assembly removal/installation are shown below.
NECESSARY PROCEDURES AFTER PARTS REMOVED/INSTALLED/REPLACED
| Replaced Part or Performed Procedure | Necessary Procedures | Effect/Inoperative Function When Necessary Procedures are not Performed | Link |
|---|---|---|---|
|
Front television camera view adjustment | Panoramic View Monitor System | Refer to CALIBRATION [12/2022 - ] |
| Advanced Park | Refer to CALIBRATION [12/2022 - ] | ||
Replacement or removal and installation of 2 or more parts:
|
Television camera view adjustment | Panoramic View Monitor System | Refer to CALIBRATION [12/2022 - ] |
| Radiator shutter assembly | Change grille shutter control mode and/or perform initialization | Grille shutter system | Refer to INITIALIZATION [12/2022 - 03/2023] , or refer to INITIALIZATION [03/2023 - ] |
*: Even when not replacing the part, it is necessary to perform the specified necessary procedures after installation.

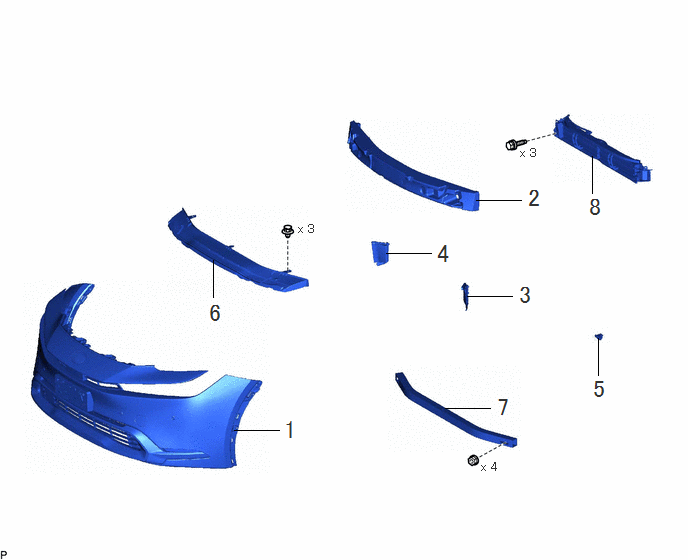

COMPONENTS (REMOVAL)
| Callout - Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 1 | FRONT BUMPER ASSEMBLY | - | - | - | - |
| 2 | FRONT BUMPER ENERGY ABSORBER | 52611 | - | - | - |
| 3 | FRONT RADIATOR SIDE AIR GUIDE PLATE LH | 16695A | - | - | - |
| 4 | FRONT RADIATOR SIDE AIR GUIDE PLATE RH | 16691A | - | - | - |
| 5 | THERMISTOR ASSEMBLY | 88790B | - | - | - |
| 6 | FRONT BUMPER LOWER ABSORBER | 52618 | - | - | - |
| 7 | NO. 2 FRONT BUMPER REINFORCEMENT | 52132A | - | - | - |
| 8 | RADIATOR SHUTTER ASSEMBLY | 53180D | - | - | - |
