COMPONENTS (REASSEMBLY)

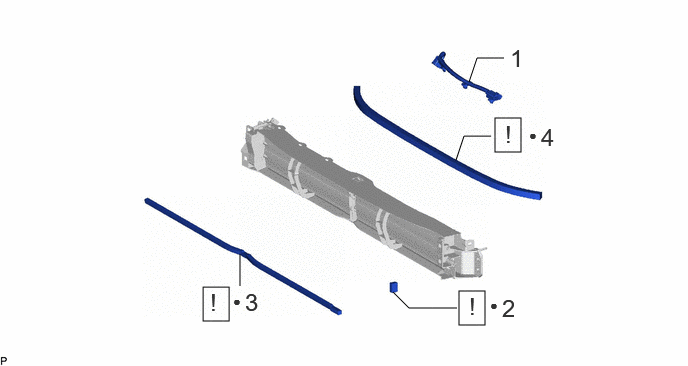

Fig 1: Grille Shutter Reassembly Components

GTY1152027

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout - Procedure		Part Name Code
1	EXTENSION WIRE ASSEMBLY	82090B	-	-	-
2	NO. 3 RADIATOR GRILLE SEAL	53157C	See step 2	-	-
3	NO. 2 RADIATOR GRILLE SEAL	53156G	See step 3	-	-
4	NO. 1 RADIATOR GRILLE SEAL	53155J	See step 4	-	-

•

Non-reusable part

-

-
