Disassembly [12/2022 - ]: Procedure

  1. REMOVE NO. 1 RADIATOR GRILLE SEAL
    1. GTY1156641Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE NO. 2 RADIATOR GRILLE SEAL
    1. GTY1156482Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

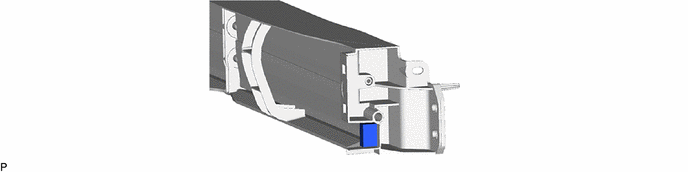

  3. REMOVE NO. 3 RADIATOR GRILLE SEAL
    1. GTY1156483Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE EXTENSION WIRE ASSEMBLY
    1. GTY1139345Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
