Caution / Notice / Hint

COMPONENTS (DISASSEMBLY)

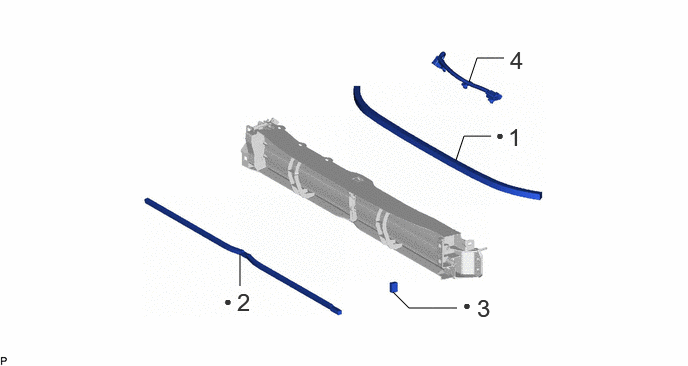

Fig 1: Grille Shutter Disassembly Components
GTY1152026Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout - Procedure Part Name Code
1 NO. 1 RADIATOR GRILLE SEAL 53155J - - -
2 NO. 2 RADIATOR GRILLE SEAL 53156G - - -
3 NO. 3 RADIATOR GRILLE SEAL 53157C - - -
4 EXTENSION WIRE ASSEMBLY 82090B - - -
• Non-reusable part - -
