Caution / Notice / Hint

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during front bumper assembly removal/installation are shown below.

NECESSARY PROCEDURES AFTER PARTS REMOVED/INSTALLED/REPLACED

Replaced Part or Performed Procedure	Necessary Procedures	Effect/Inoperative Function When Necessary Procedures are not Performed	Link
Front bumper assembly* Radiator grille*	Front television camera view adjustment	Panoramic View Monitor System	Refer to CALIBRATION [12/2022 - ]
Front bumper assembly* Radiator grille*	Front television camera view adjustment	Advanced Park	Refer to CALIBRATION [12/2022 - ]
Replacement or removal and installation of 2 or more parts: Front television camera assembly, Radiator grille or Front bumper assembly Rear television camera assembly Side television camera assembly LH, Parking assist light LH or Outer rear view mirror assembly LH Side television camera assembly RH, Parking assist light RH or Outer rear view mirror assembly RH	Television camera view adjustment	Panoramic View Monitor System	Refer to CALIBRATION [12/2022 - ]

*: Even when not replacing the part, it is necessary to perform the specified necessary procedures after installation.

HINT:

When the front bumper is damaged or deformed due to an accident or contact with other objects, etc., or the bumper installation area on the body is repaired, it is necessary to perform millimeter wave radar sensor adjustment.
- TARGET ADJUSTMENT (TRIANGLE TARGET):
  Refer to TARGET ADJUSTMENT (TRIANGLE TARGET) [12/2022 - ]
- TARGET ADJUSTMENT (FLAT SURFACE TARGET):
  Refer to TARGET ADJUSTMENT (FLAT SURFACE TARGET) [12/2022 - ]
- DRIVING ADJUSTMENT:
  Refer to DRIVING ADJUSTMENT [12/2022 - ]
When the front bumper is damaged or deformed due to an accident or contact with other objects, etc., or the bumper installation area on the body is repaired, it is necessary to perform ultrasonic sensor detection angle measurement.
- w/ Parking Support Brake System:
  Refer to CALIBRATION [12/2022 - ]
- w/ Advanced Park:
  Refer to CALIBRATION [12/2022 - ]
If the front bumper is damaged or deformed due to an accident, contact, etc., and repairs have been made to the area of the body to which the headlight assembly is installed, it is necessary to perform front side radar sensor adjustment.
If a problem is found during the visual inspection, check the installation condition of the front side radar sensor, and adjust the installation position of the front side radar sensor as necessary.
- TARGET ADJUSTMENT (TRIANGLE TARGET):
  Refer to TARGET ADJUSTMENT (TRIANGLE TARGET) [12/2022 - ]
- DRIVING ADJUSTMENT:
  Refer to DRIVING ADJUSTMENT [12/2022 - ]

COMPONENTS (REMOVAL)

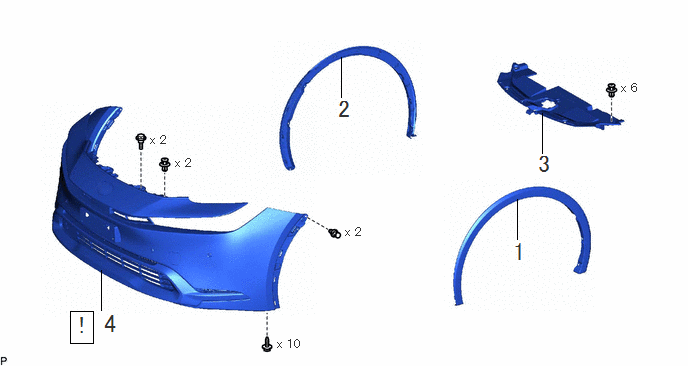

Fig 1: Front Bumper Removal Components

Callout - Procedure		Part Name Code
1	FRONT FENDER MOULDING SUB-ASSEMBLY LH	75602A	-	-	-
2	FRONT FENDER MOULDING SUB-ASSEMBLY RH	75601A	-	-	-
3	RADIATOR SUPPORT OPENING COVER	53289A	-	-	-
4	FRONT BUMPER ASSEMBLY	-	See step 4	-	-
