COMPONENTS (REASSEMBLY)

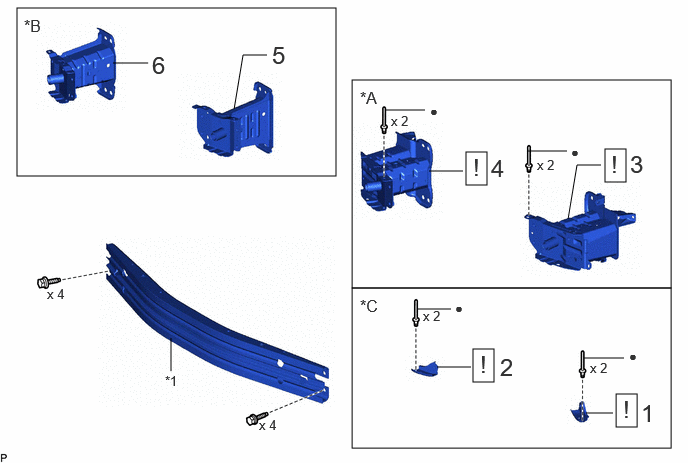

Fig 1: Front Bumper Reassembly Components [01/2025 - ] (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout - Procedure		Part Name Code
1	NO. 2 FRONT BUMPER SPACER	52422C	See step 1	-	-
2	NO. 1 FRONT BUMPER SPACER	52421B	See step 2	-	-
3	FRONT SIDE MEMBER BRACKET SUB-ASSEMBLY LH	57014A	See step 3	-	-
4	FRONT SIDE MEMBER BRACKET SUB-ASSEMBLY RH	57013C	See step 4	-	-
5	FRONT SIDE MEMBER BRACKET SUB-ASSEMBLY LH	57014A	-	-	-
6	FRONT SIDE MEMBER BRACKET SUB-ASSEMBLY RH	57013C	-	-	-

*A	for Type A	*B	for Type B
*C	w/ Bracket	-	-
*1	FRONT BUMPER REINFORCEMENT SUB-ASSEMBLY	-	-
•	Non-reusable part	-	-

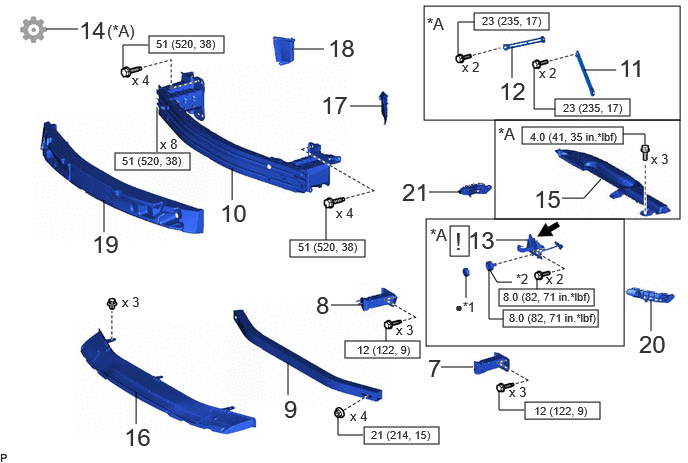

Fig 2: Front Bumper Reassembly Components With Torque Specifications [01/2025 - ] (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout - Procedure		Part Name Code
7	FRONT BUMPER EXTENSION SUB-ASSEMBLY LH	52103A	-	-	-
8	FRONT BUMPER EXTENSION SUB-ASSEMBLY RH	52102B	-	-	-
9	NO. 2 FRONT BUMPER REINFORCEMENT	52132A	-	-	-
10	FRONT BUMPER REINFORCEMENT	-	-	-	-
11	UPPER RADIATOR MOUNTING BRACKET LH	53254A	-	-	-
12	UPPER RADIATOR MOUNTING BRACKET RH	53253D	-	-	-
13	HOOD LOCK ASSEMBLY	53510	See step 13	-	-
14	ADJUST HOOD SUB-ASSEMBLY	53301	-	-	See step 14
15	INLET NO. 1 AIR CLEANER	17751	-	-	-
16	FRONT BUMPER LOWER ABSORBER	52618	-	-	-
17	FRONT RADIATOR SIDE AIR GUIDE PLATE LH	16695A	-	-	-
18	FRONT RADIATOR SIDE AIR GUIDE PLATE RH	16691A	-	-	-
19	FRONT BUMPER ENERGY ABSORBER	52611	-	-	-
20	FRONT BUMPER SIDE SUPPORT LH	52116A	-	-	-
21	FRONT BUMPER SIDE SUPPORT RH	52115A	-	-	-

*A	w/ Bracket	-	-
*1	HOOD LOCK NUT CAP	*2	HOOD LOCK BOLT
•	Non-reusable part	-	-
	Nm (kgfcm, ft.*lbf): Specified torque		MP grease

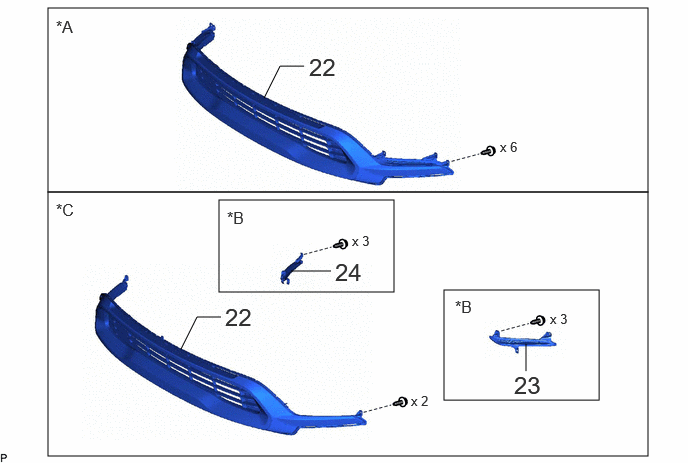

Fig 3: Front Bumper Reassembly Components [01/2025 - ] (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	for Integrated Type	*B	w/o LED Illumination Light
*C	for Separate Type	-	-

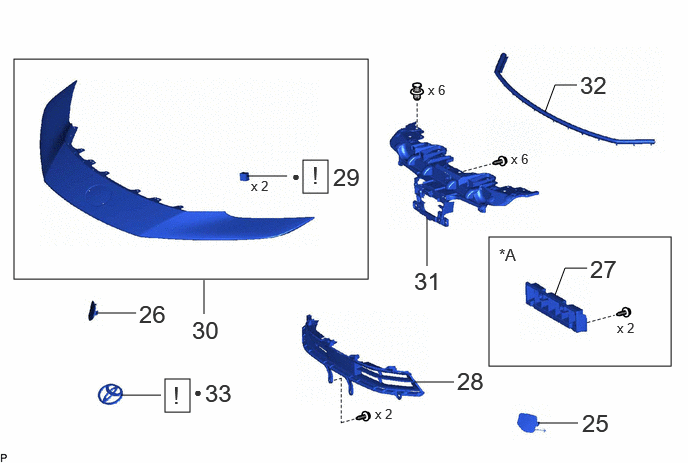

Fig 4: Front Bumper Reassembly Components [01/2025 - ] (4 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout - Procedure		Part Name Code
25	FRONT BUMPER HOLE COVER LH	52128C	-	-	-
26	FRONT BUMPER HOLE COVER RH	52127D	-	-	-
27	FRONT BUMPER MOUNTING BRACKET	52147B	-	-	-
28	RADIATOR GRILLE GARNISH	53141H	-	-	-
29	FRONT BUMPER PAD	52421A	See step 29	-	-
30	FRONT BUMPER BAR	52111E	-	-	-
31	RADIATOR INNER GRILLE	53114A	-	-	-
32	HOOD TO FRONT END PANEL SEAL	53395E	-	-	-
33	RADIATOR GRILLE (OR FRONT PANEL) EMBLEM	75311	See step 33	-	-

*A	w/ Front bumper mounting bracket	-	-
•	Non-reusable part	-	-

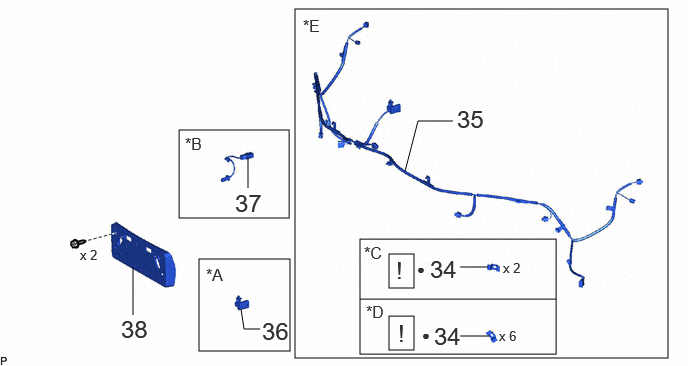

Fig 5: Front Bumper Reassembly Components [01/2025 - ] (5 Of 6)

Callout - Procedure		Part Name Code
34	FRONT ULTRASONIC SENSOR CLIP	89348X	See step 34	-	-
35	NO. 3 ENGINE ROOM WIRE	82113	-	-	-
36	CONNECTOR COVER	82821A	-	-	-
37	PARKING ASSIST WIRE	86797B	-	-	-
38	FRONT BUMPER EXTENSION MOUNTING BRACKET	52114A	-	-	-

*A	w/ Connector Cover	*B	w/ Panoramic View Monitor System
*C	w/o Side Marker Light	*D	w/ Side Marker Light
*E	w/ Wire Harness	-	-
•	Non-reusable part	-	-

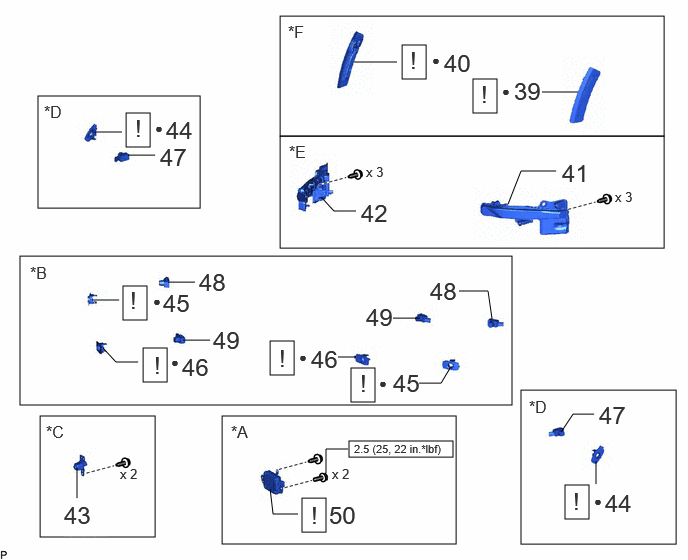

Fig 6: Front Bumper Reassembly Components With Torque Specifications [01/2025 - ] (6 Of 6)

Callout - Procedure		Part Name Code
39	FRONT MARKER LIGHT ASSEMBLY LH	81720	See step 39	-	-
40	FRONT MARKER LIGHT ASSEMBLY RH	81710	See step 40	-	-
41	LED ILLUMINATION LIGHT LH	8122A	-	-	-
42	LED ILLUMINATION LIGHT RH	8121A	-	-	-
43	FRONT TELEVISION CAMERA ASSEMBLY	86790B	-	-	-
44	FRONT SIDE ULTRASONIC SENSOR RETAINER	89C48F	See step 44	-	-
45	FRONT CORNER ULTRASONIC SENSOR RETAINER	89C48D	See step 45	-	-
46	FRONT CENTER ULTRASONIC SENSOR RETAINER	89C48E	See step 46	-	-
47	FRONT SIDE ULTRASONIC SENSOR	89341M	-	-	-
48	FRONT CORNER ULTRASONIC SENSOR	89341K	-	-	-
49	FRONT CENTER ULTRASONIC SENSOR	89341L	-	-	-
50	MILLIMETER WAVE RADAR SENSOR ASSEMBLY	88211B	See step 50	-	-

*A	w/ Pre-collision System	*B	w/ Parking Support Brake System
*C	w/ Panoramic View Monitor System	*D	w/ Advanced Park
*E	w/ LED Illumination Light	*F	w/ Side Marker Light
	Nm (kgfcm, ft.*lbf): Specified torque	•	Non-reusable part
