Removal [12/2022 - ]: Procedure

  1. REMOVE BACK DOOR UPPER TRIM PANEL ASSEMBLY

    See step  1

  2. REMOVE BACK DOOR SIDE GARNISH LH

    See step  2

  3. REMOVE BACK DOOR SIDE GARNISH RH
    1. Use the same procedure for the LH side.
  4. REMOVE BACK DOOR TRIM BOARD ASSEMBLY

    See step  6

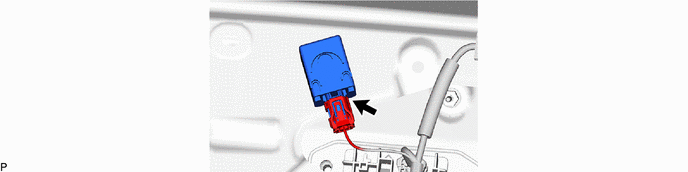

  5. REMOVE POWER BACK DOOR WARNING BUZZER
    1. GTY1155558Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
