Caution / Notice / Hint

COMPONENTS (DISASSEMBLY)

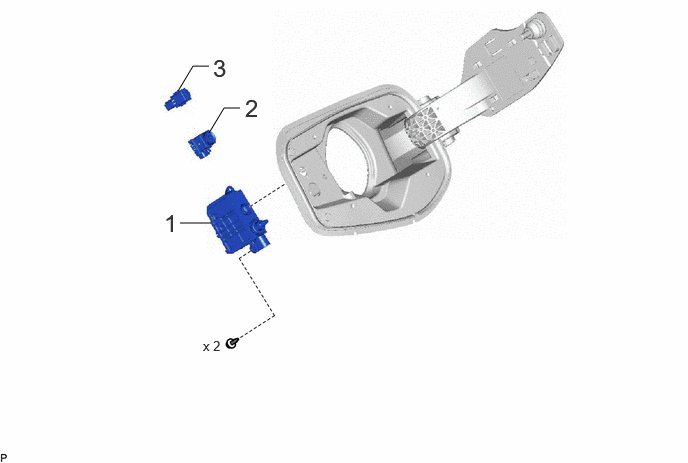

Fig 1: Charge Lid Opener Unit Disassembly Components
GTY1140494Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout - Procedure Part Name Code
1 CHARGE LID LOCK WITH MOTOR ASSEMBLY 77030B - - -
2 EV CHARGER LID INDICATOR G90H1 - - -
3 SPOT LIGHT ASSEMBLY 81360N - - -
