Removal [03/2023 - ]: Procedure

  1. REMOVE BATTERY CHARGER CONNECTOR OPENING LID SUB-ASSEMBLY

    Refer to REMOVAL [03/2023 - ]

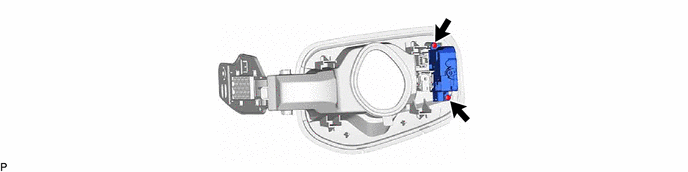

  2. REMOVE CHARGE LID LOCK WITH MOTOR ASSEMBLY
    1. GTY1149404Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
