COMPONENTS (REASSEMBLY)

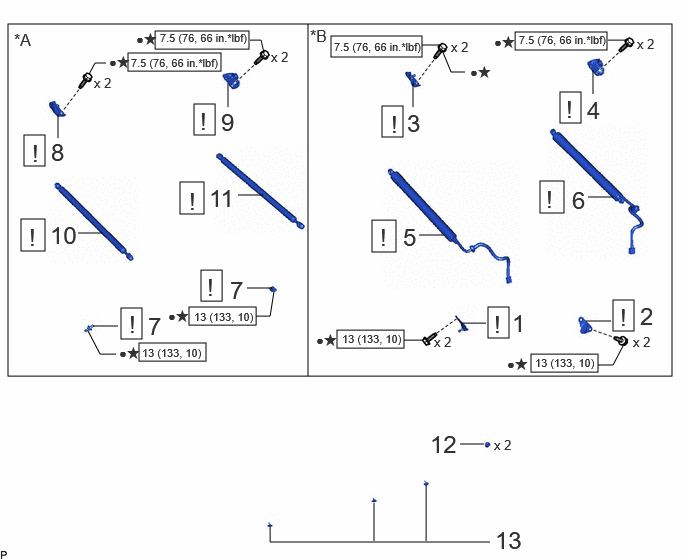

Fig 1: Back Door Reassembly Components With Torque Specifications (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout - Procedure		Part Name Code
1	BACK DOOR DAMPER STAY LOWER BRACKET LH	68948	See step 1	-	-
2	BACK DOOR DAMPER STAY LOWER BRACKET RH	68947	See step 2	-	-
3	BACK DOOR DAMPER STAY UPPER BRACKET LH	68946	See step 3	-	-
4	BACK DOOR DAMPER STAY UPPER BRACKET RH	68945	See step 4	-	-
5	POWER BACK DOOR UNIT ASSEMBLY LH	68920A	See step 5	-	-
6	POWER BACK DOOR UNIT ASSEMBLY RH	68910B	See step 6	-	-
7	BACK DOOR STAY BOLT	68961	See step 7	-	-
8	BACK DOOR DAMPER STAY UPPER BRACKET LH	68946	See step 8	-	-
9	BACK DOOR DAMPER STAY UPPER BRACKET RH	68945	See step 9	-	-
10	BACK DOOR STAY ASSEMBLY LH	68960	See step 10	-	-
11	BACK DOOR STAY ASSEMBLY RH	68950C	See step 11	-	-
12	BACK DOOR PANEL CUSHION	67005B	-	-	-
13	DOOR DUST PROOF SEAL	67837L	-	-	-

*A	w/o Power Back Door	*B	w/ Power Back Door
	Nm (kgfcm, ft.*lbf): Specified torque	•	Non-reusable part
*	Precoated part	-	-

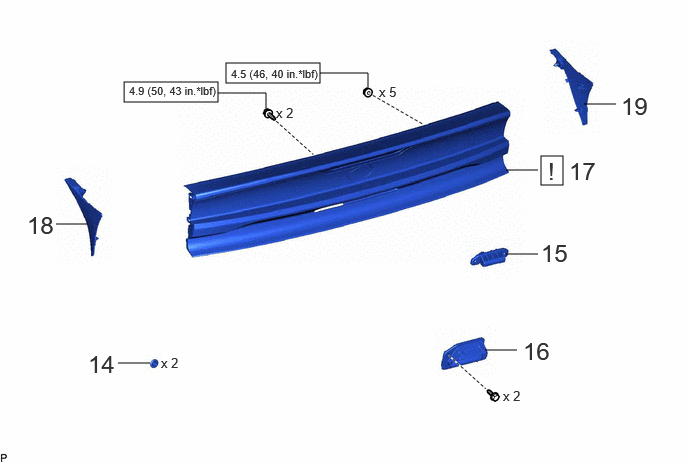

Fig 2: Back Door Reassembly Components With Torque Specifications (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout - Procedure		Part Name Code
14	HOLE PLUG	-	-	-	-
15	BACK DOOR OPENER SWITCH ASSEMBLY	84840G	-	-	-
16	TELEVISION REAR CAMERA ASSEMBLY	86790D	-	-	-
17	REAR LIGHT ASSEMBLY	-	See step 17	-	-
18	BACK DOOR OUTSIDE GARNISH LOWER MOULDING LH	76816	-	-	-
19	BACK DOOR OUTSIDE GARNISH LOWER MOULDING RH	76815	-	-	-

N*m (kgf*cm, ft.*lbf): Specified torque

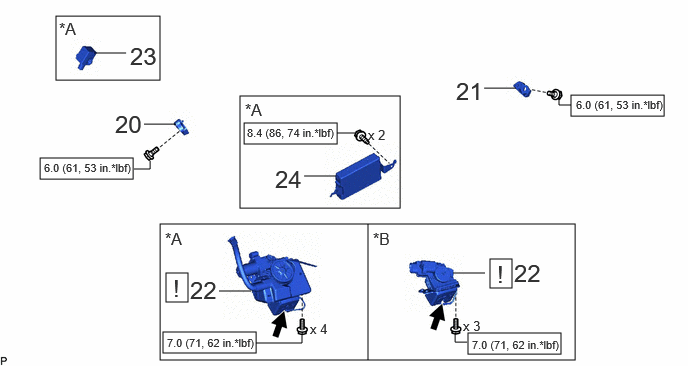

Fig 3: Back Door Reassembly Components With Torque Specifications (3 Of 4)

Callout - Procedure		Part Name Code
20	BACK DOOR LOWER STOPPER LH	67282F	-	-	-
21	BACK DOOR LOWER STOPPER RH	67281G	-	-	-
22	BACK DOOR LOCK ASSEMBLY WITH COURTESY LIGHT SWITCH	69350P	See step 22	-	-
23	POWER BACK DOOR WARNING BUZZER	89747E	-	-	-
24	MULTIPLEX NETWORK DOOR ECU	89222A	-	-	-

*A	w/ Power Back Door	*B	w/o Power Back Door
	Nm (kgfcm, ft.*lbf): Specified torque		MP grease

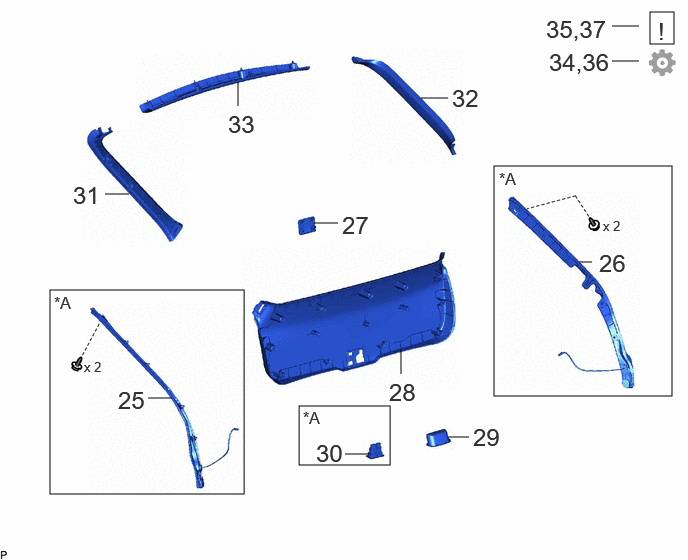

Fig 4: Back Door Reassembly Components (4 Of 4)

Callout - Procedure		Part Name Code
25	POWER BACK DOOR SENSOR ASSEMBLY LH	84280D	-	-	-
26	POWER BACK DOOR SENSOR ASSEMBLY RH	84270G	-	-	-
27	LUGGAGE COMPARTMENT TRIM COVER	64721K	-	-	-
28	BACK DOOR TRIM BOARD ASSEMBLY	67750	-	-	-
29	DOOR PULL HANDLE	74811D	-	-	-
30	GLIDE DOOR INSIDE HANDLE BASE ASSEMBLY	69290G	-	-	-
31	BACK DOOR SIDE GARNISH LH	67938A	-	-	-
32	BACK DOOR SIDE GARNISH RH	67937B	-	-	-
33	BACK DOOR UPPER TRIM PANEL ASSEMBLY	64790B	-	-	-
34	INITIALIZE POWER BACK DOOR SYSTEM (w/ Power Back Door)	-	-	-	See step 34
35	INSPECT POWER BACK DOOR SYSTEM (w/ Power Back Door)	-	See step 35	-	-
36	PERFORM CALIBRATION	-	-	-	See step 36
37	ADJUST BACK DOOR	-	See step 37	-	-

w/ Power Back Door
