Removal [03/2023 - ]: Procedure
- REMOVE REAR DOOR WINDOW FRAME FRONT MOULDING
Refer to PROCEDURE - Step 4 - REMOVE REAR DOOR TRIM UPPER COVER
Refer to PROCEDURE - Step 4
- REMOVE REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH REAR DOOR UPPER ARMREST BASE PANEL
Refer to PROCEDURE - Step 5 - REMOVE REAR DOOR REAR FRAME BRACKET
Refer to PROCEDURE - Step 6
- REMOVE REAR DOOR TRIM BOARD SUB-ASSEMBLY
Refer to PROCEDURE - Step 7 - REMOVE REAR DOOR SERVICE HOLE COVER
Refer to PROCEDURE - Step 15
- REMOVE BLE DOOR DIGITAL KEY RECEIVER ASSEMBLY (for Rear Door) NOTE:
Be careful when removing the digital key receiver. If the digital key receiver is dropped, replace it with a new one.

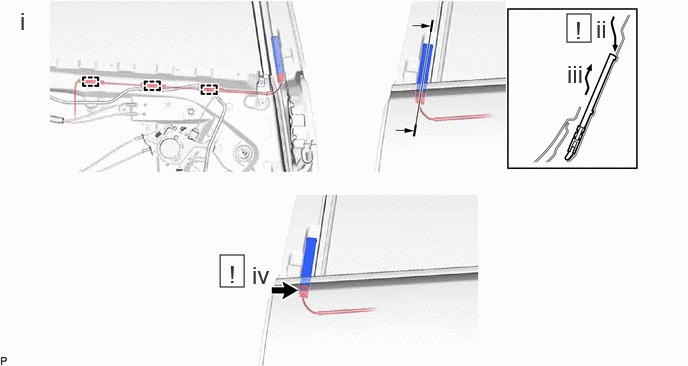

- Disengage the 3 clamps.
- Peel off the ble door digital key receiver assembly (for rear door) using a moulding remover E or equivalent.
- Pull up the ble door digital key receiver assembly (for rear door).
- Disconnect the connector to remove the ble door digital key receiver assembly (for rear door).NOTE:
Prevent the detached wire harness from falling into the door panel.
