Removal [03/2023 - ]: Procedure

  1. PRECAUTION
    NOTE:

    After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.

    Refer to BEFORE DISCONNECTING BATTERY [12/2022 - ]
  2. REMOVE BATTERY SERVICE HOLE COVER ASSEMBLY (for M20A-FXS)
    Refer to PROCEDURE - Step 2
  3. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL
    1. for M20A-FXS:

      Refer to PROCEDURE - Step 3

  4. REMOVE FRONT DOOR TRIM UPPER COVER
    Refer to PROCEDURE - Step 4
  5. REMOVE MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL (for Driver Side)
    Refer to PROCEDURE - Step 5
  6. REMOVE POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL (for Front Passenger Side)
    Refer to PROCEDURE - Step 6
  7. REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY
    Refer to PROCEDURE - Step 7
  8. REMOVE FRONT DOOR TRIM BRACKET

    Refer to PROCEDURE - Step 16

  9. REMOVE FRONT DOOR WEATHERSTRIP CLIP
    Refer to PROCEDURE - Step 17
  10. REMOVE FRONT DOOR SERVICE HOLE COVER

    Refer to PROCEDURE - Step 18

  11. REMOVE FRONT DOOR OUTSIDE HANDLE ASSEMBLY (for Driver Side)
    Refer to PROCEDURE - Step 27
  12. REMOVE HOLE PLUG (for Driver Side)

    Refer to PROCEDURE - Step 28

  13. REMOVE FRONT DOOR LOCK CYLINDER ASSEMBLY (for Driver Side)
    Refer to PROCEDURE - Step 32

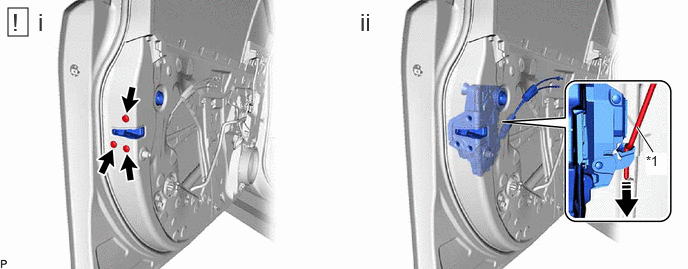

  14. REMOVE FRONT DOOR LOCK WITH MOTOR ASSEMBLY WITH CABLE
    1. GTY1138696Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Front Door Lock Open Rod - -
      Remove in this Direction - -
      1. Using a T30 "TORX" socket wrench, remove the 3 screws.
      2. Slide the front door lock with motor assembly downward to disconnect the front door lock open rod and remove the front door lock with motor assembly and cables as a unit.
  15. REMOVE DOOR LOCK WIRING HARNESS SEAL

    HINT:

    When reusing the front door lock with motor assembly.

    1. GTY1150424Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

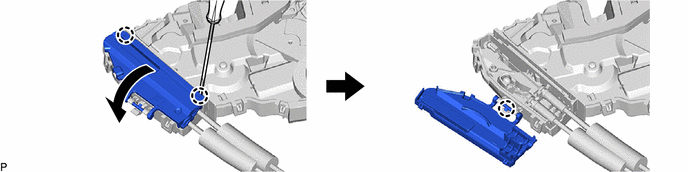

  16. REMOVE FRONT DOOR LOCK COVER SUB-ASSEMBLY
    1. GTY1150422Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

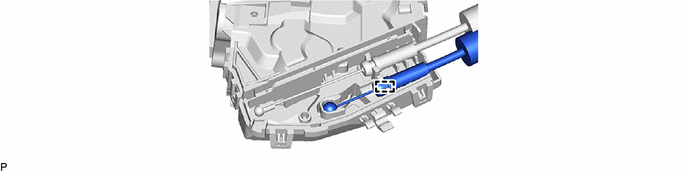

  17. REMOVE LOCK / UNLOCK KNOB FRONT DOOR INSIDE LOCKING CABLE
    1. GTY1150421Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

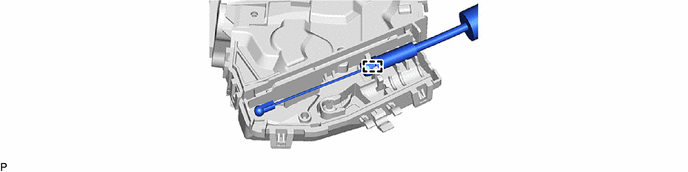

  18. REMOVE OPEN LEVER FRONT DOOR LOCK REMOTE CONTROL CABLE
    1. GTY1150420Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
